Mazda OEM VVT / Timing Chain Replacement Kit for Mazda 3 MPS, Mazda 6 MPS & Mazda CX-7 2.3L T

One of the common issues with the MZR motor is the weak OEM VVT Actuator. These are known for going out and Mazda has revised the OEM VVT actuator to make it stronger and keep it from failing.

How can you tell if your VVT Actuator is failing?

You will hear a rattle on start-up coming from the passenger side of the motor.

What's happening is the actuator can't hold oil pressure and therefore it can't take up the slack in the chain and allows it to hit the timing cover. This is the first sign that your VVT Actuator is going out and you will need to replace it quickly. If the car slips timing, pistons will meet valves and you will be left looking for a new motor.

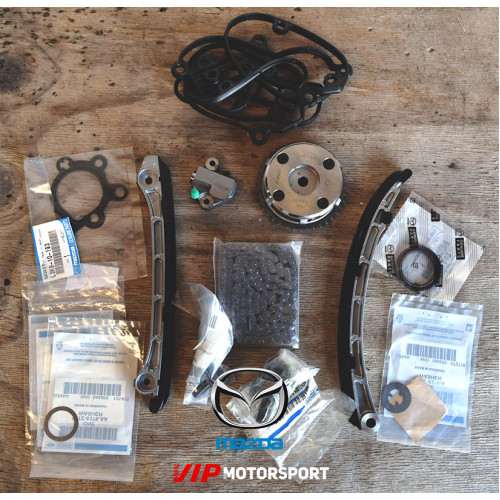

Items Included in the Kit:

New Replacement OEM VVT Pulley

Mazda OEM Timing Chain

Mazda OEM Timing Chain Tensioner

Mazda OEM Camshaft Bolt

Mazda OEM Camshaft Washer

Mazda OEM Friction Washers x3

Mazda OEM Crank Pulley Bolt

Mazda OEM Front Oil Seal

Mazda OEM Chain Guides L&R

Mazda OEM Valve Cover Gasket

Mazda OEM HPFP Cam Housing Gasket

NEW OPTIONAL OIL PUMP CHAIN KIT

When installing a VVT Kit it is necessary to take off the existing oil pump chain. We’ve added the option to include our oil pump chain kit in case you wanted to replace that as well!

It includes the 3 parts below-

Mazda OEM Oil Pump Chain L3K9-14-151

Mazda OEM Oil Pump Chain Tensioner L3K9-14-500

Mazda OEM Oil Pump Guide L3K9-14-614

NEW OPTIONAL CORKSPORT TIMING TOOL KIT

A new part from Corksport the Mazda Specialist!

The CS Timing kit provides the tools needed to accurately set your motor at TDC and to also line up the intake and exhaust cams making sure that everything is in place.

Read more here.
