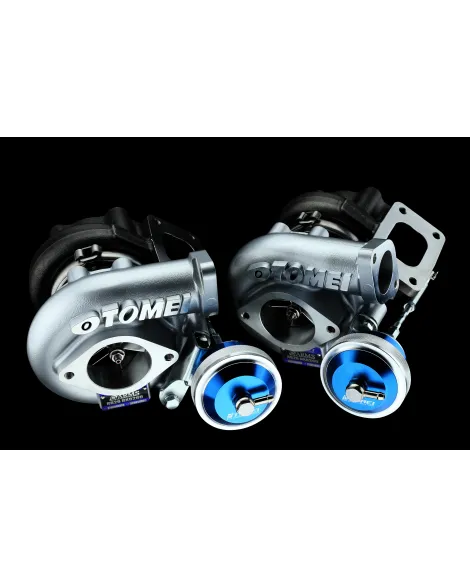

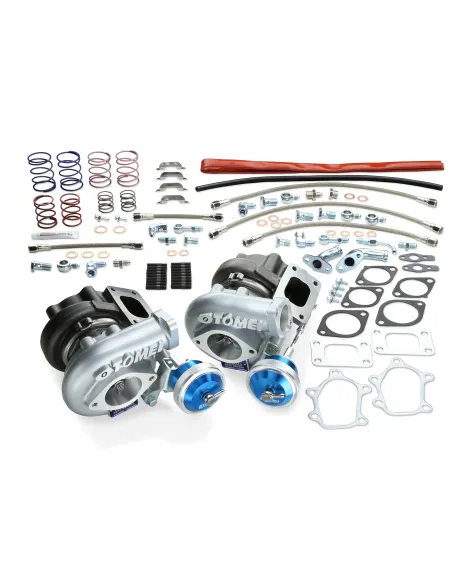

TOMEI B/B TURBOCHARGER KIT ARMS BX8260 RB26DETT

PART No. TB403A-NS05B

TARGET HP (HP) 650

BEARING TYPE BALL BEARING

INITIAL BOOST SETTING (kgf/cm2) 1.0

COMPRESSOR WHEEL

ⒶIND(mm) 52.6

ⒷEXD(mm) 68.0

TRIM 60

BLADES 6/6

MATERIAL A2618

PRODUCTION CNC BILLET

TURBINE WHEEL

ⒸEXD(mm) 58.8

ⒹIND(mm) 67.0

TRIM 77

BLADES 9

MATERIAL K418

PRODUCTION CAST

COMPRESSOR HOUSING

IND(mm) 53.5

EXD(mm) 38.75

A/R 0.74

TURBINE HOUSING

IND(mm) T25

EXD(mm) RB26DETT

A/R 0.73

CNC Billet Compressor Wheel

Significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface area for significantly improved airflow and turbo spool.

Multi Rate Billet Actuator

Large capacity, reinforced foraged billet construction. Includes a total of 6 springs for fine boost adjustments. Swivel type nipple allows for greater freedom when routing hoses.
