ACT Clutches HD-M/Perf Street Sprung

Part number SB10-HDSS

Specifications

Item Description HD-M/Perf Street Sprung

Product Weight (lbs.) 18.2

Torque Capacity (ft/lbs.) 522

Torque Capacity Over OE 45%

Disc Material Organic

Clutch Disc Diameter (Inches) 9.4

Clutch Disc Diameter (Millimeters) 240

Input Shaft Diameter (inches) 1

Pressure Plate Type Heavy Duty

SB10-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs feature a reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Feel Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle, confidence during hard shifts

Life Longer friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life

Quality Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade, major improvement in release mechanism

Recommended Use Recommended for street and race use

ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc

Vehicle Fitment

Subaru Impreza / WRX STi Version 8 -9 GDB (JDM/Euro) 02-07 Turbo EJ20 240mm 6 Speed

Subaru Impreza WRX STi Hatch GRF/Saloon GVF (JDM/Euro) 08-14 Turbo 2.5L, EJ25 240mm 6 Speed Inc JDM EJ20 Model GRB/GVB

Subaru Impreza STi Saloon VA (JDM/Euro) 15-21 Turbo 2.5L, EJ25 240mm 6 Speed Inc JDM EJ20 Model VAB

Legacy GT Spec. B 07-09 Turbo, 2.5L 6 spd 240mm Must use ACT or factory flywheel for the 04+ WRX STi

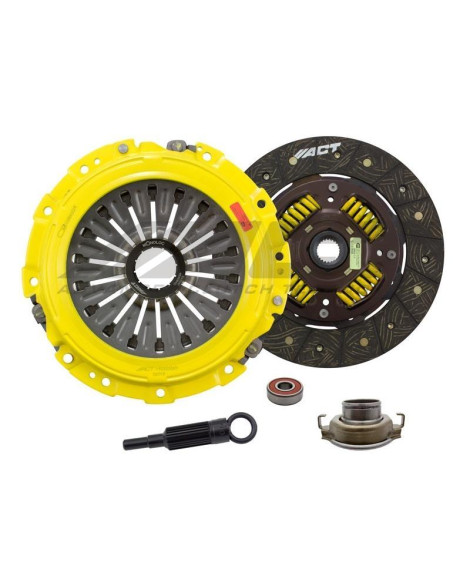

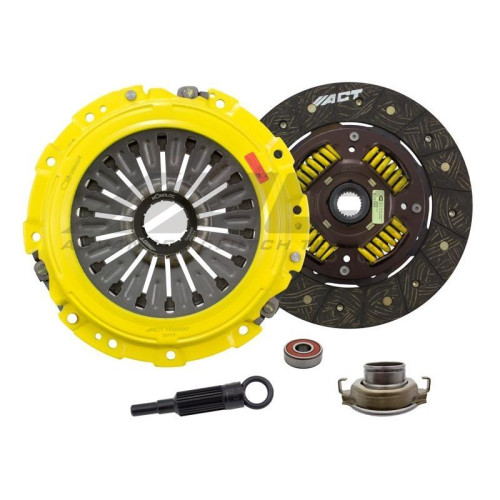

Kit Contents:

3000503 - Perf Street Sprung Disc

AT90 - Alignment Tool

PB1004 - Pilot Bearing

RB601 - Release Bearing

SB019 - Heavy Duty Pressure Plate

VIP Motorsport is an official UK stockist of ACT Clutches in the UK. Our stock is directly linked with ACT in the USA, if the item is out of stock with us it could take up to 2 working weeks to arrive with you. Contact us for definite stock.
