DBA XP Brake Kit Rear for Toyota Landcruiser HDJ100 / HDJ101 / UZJ100 98-08 DBA4789S-1383XP

DBA4789S-1383XP - Brake Kit (2x DBA 4789S + DB1383XP)

Ideal for spirited driving

High quality, high performance to suit your requirements

One box includes 1 set per axle

Technical Information

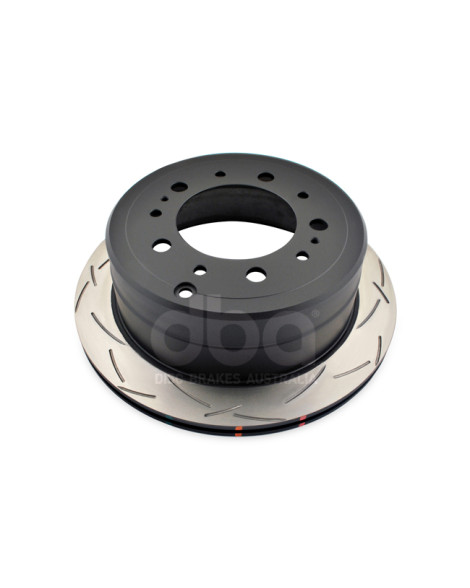

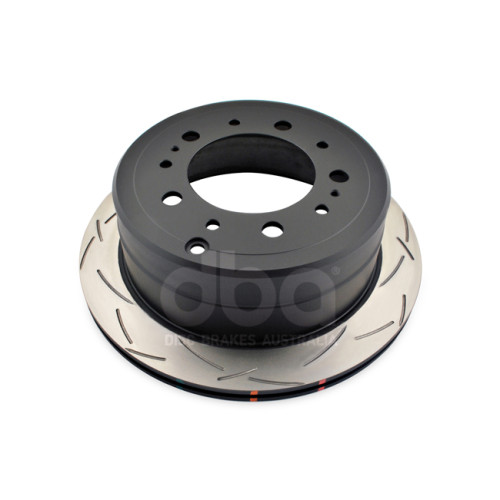

DISCS

Diameter [mm]: 330

Disc Vent: Kangaroo Paw

Number of Holes: 5

Inner Diameter [mm]: 110

Minimum Thickness [mm]: 16

Thickness [mm]: 18

Height [mm]: 103

Pitch Circle [mm]: 150

Stage: Stage 4

ECE R90 number: E11*90R02/06*60522*00

Total Weight [kg]: 8.4

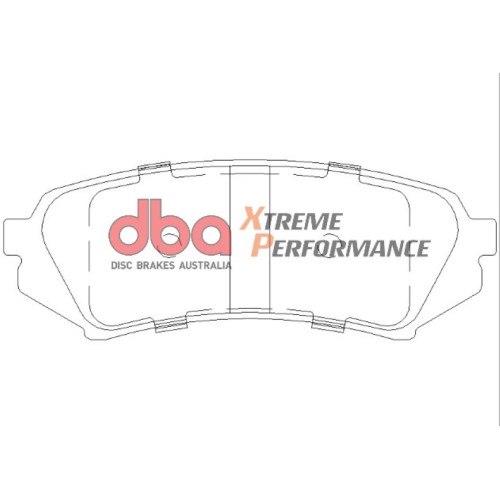

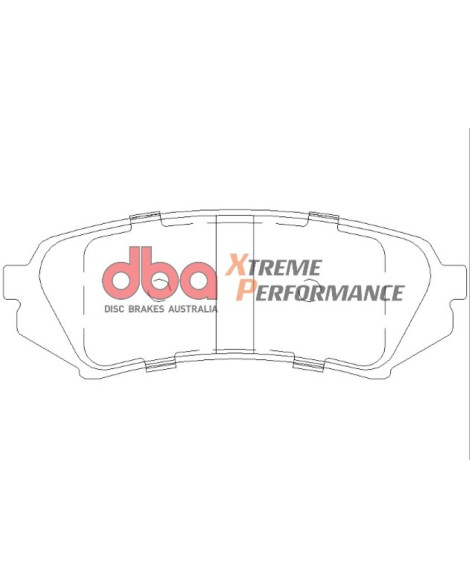

PADS

Width [mm]: 123.1

Height [mm]: 45.1

Pad thickness [mm]: 17.4

FMSI: 7640-D773

OEM: 04466-60070

Axle: Rear

ECE R90 Number: E11 R90-02A01584/53186

Total Weight [kg]: 0.9

CONFIRMED APPLICATIONS

TOYOTA    Landcruiser HDJ100   1998-2007 4.2 TD (1998-2007)     Rear

TOYOTA    Landcruiser HDJ100   2003-2008 4.2 TD (2003-2008)     Rear

TOYOTA    Landcruiser HDJ101   1998-2007 4.2 TD (1998-2007)     Rear

TOYOTA    Landcruiser UZJ100    1998-2003 4.7 (1998-2003) Rear

TOYOTA    Landcruiser UZJ100    2003-2008 4.7 (2003-2008) Rear

DBA Xtreme Performance Brake Kit (XP)

DBA’s New Brake kit of T3 4000 or 5000 series slotted rotors and Xtreme Performance (XP) brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

Specifications:

Street performance and occasional track day suitable

Perfectly matching and extensively tested combination of disc and pad

Save 5% of the price when purchasing Combo

DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system

DBA discs: T3 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite

DBA discs: Thermal Stability Profiling (TSP) and enhance durability of the disc under heavy braking conditions

DBA pads: Semi-metallic, carbon fibre friction material

DBA pads: G-G Class Friction (0.45 average mu from low to high temperatures)

DBA pads: Excellent high temperature performance

DBA pads: Optimal braking consistency up to 550℃ (1022℉)

Direct fit, no changes required over stock set up

One combo - one manufacturer = no warranty issues

Contents of Kit DBA4789S-1383XP

DBA4789S - 4000 series - T3

DB1383XP - Brake Pads Xtreme Performance ECE R90 certified | Rear Axle
