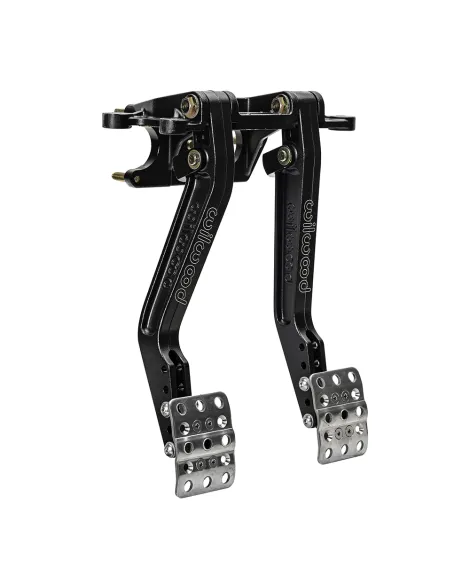

Wilwood Swing Mount Tandem Brake & Offset Clutch Pedal 340-16833

Description

PEDAL ASSY,TANDEM W/SINGLE M/C,FWD MT BRAKE W/2.00 OFF CLUTCH,ADJ 5.50-6.25:1

Item Number

340-16833

Adjustable ratio brake pedal with offset clutch pedal, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. A clutch master cylinder and tandem brake master cylinder mount to the assembly through the firewall. The non-skid waffled pedal pads can be laterally adjusted to be from 5 to 7 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. The clutch pedal accepts a 2.25 inch vertical mount flange single outlet master cylinder, while the brake uses a 3.25 inch horizontal mount flange tandem master cylinder, available separately in a variety of styles and bore sizes.

Pedal Type

Material Aluminium

Finish Black E-coat

Pedal Description

Mount Loc Swing

Mount Facing Forward

Balance Bar No

Pedal Ratio & Length

Pedal 1 Ratio 5.5-6.25:1

Pedal 2 Ratio 5.5-6.25:1

UPC 889545105780
