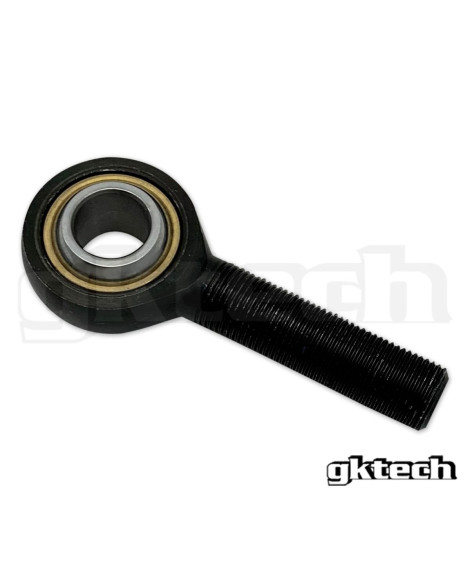

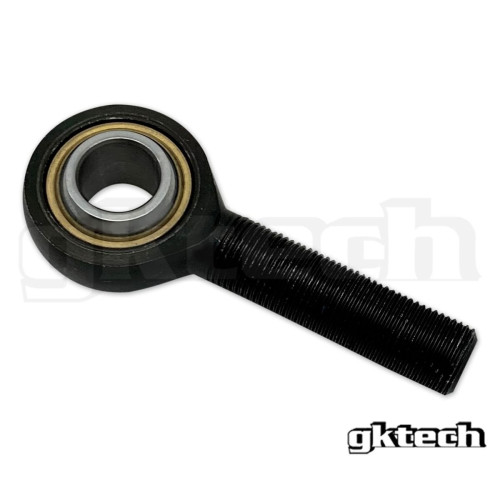

GKTECH REPLACEMENT PCML12TES BEARING

Replacement PCML12TES bearing (can also be replaced with PCML12T, non extended version and PCML12TE)

Used in the following GKTECH products:

Super Lock LCA's (SKU = S13X-944X, S13X-3974, S145-035X, S145-3065)

V2 High clearance lower control arms (SKU = BUDG-2045, BUDG-4065)

V3 and V4 Front caster rods (SKU = S13X-CSTR and S145-CSTR)

Z33/350z Front upper camber arms (SKU = Z33X-FUCA)

Z33/350z Rear camber arms (SKU = 350Z-CMBR)

Z33/350z Front super lock arms (SKU = Z33X-FLCA)

Z33/350z Toe arms (SKU=350Z-TOEX)

PCML12TES

ROD END BALL BORE SIZE 0.7500 in / 19.0500 mm

ROD END BALL WIDTH 0.8750 in / 22.2250 mm

THREAD LENGTH 1.7500 in / 44.4500 mm

THREAD SIZE 3/4 - 16 UNF LH

ROD END HEAD DIAMETER 1.8700 in / 47.4980 mm

ROD END MISALIGNMENT ANGLE 24 degrees

ROD END STATIC LOAD CAPACITY (lbs) 30,290 lbs / 13,739 kg

ROD END MATERIAL Chromoly

LUBRICATION PTFE lined

VIP Motorsport is an official UK & European stockist of GKTech products. Our stock is directly linked with GK Tech AU, if the item is out of stock with us it could take up to 2 working weeks to be received.
