GKTECH 350Z/V35 SKYLINE REAR TOE ARMS (BUCKET STYLE)

SKU: 350Z-TBKT

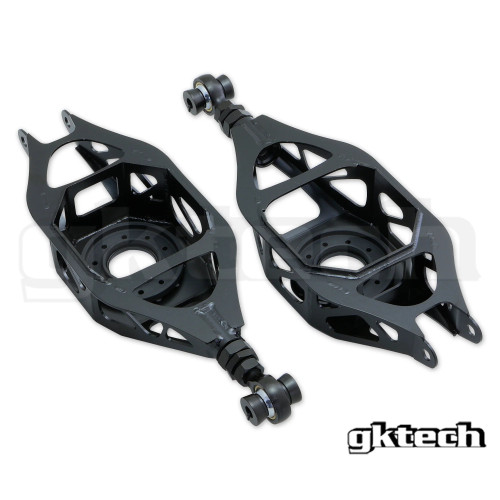

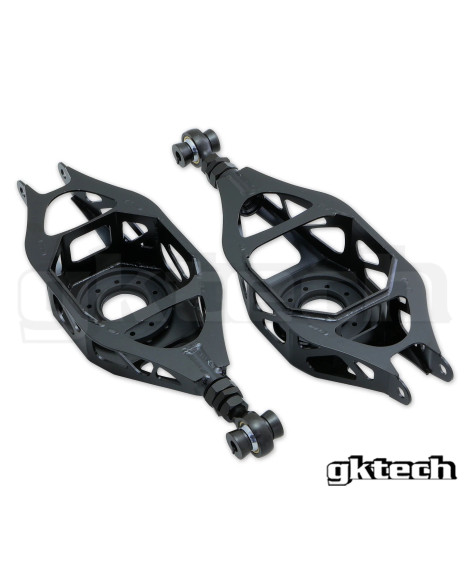

Introducing the GKTech Z33 350Z/V35 Skyline rear toe buckets (rear mid links), an OEM style suspension arm for those that want to retain the separate spring and shock design. They replace the OEM 5" helical style spring with a common off the shelf 2.5" race style spring to ensure compatibility and ease of spring rate adjustment.

These arms feature a laser-cut, CNC folded, and TIG welded sheet metal design, ensuring durability and a sleek appearance. Crafted from 4130 chromoly steel, each component has undergone extensive Finite Element Analysis (FEA) testing couple with countless days of drift and grip track abuse to guarantee

One standout feature is the double adjuster, allowing for effortless on-car alignment adjustments. With an impressive adjustment range of -17mm to +40mm, achieving optimal suspension settings has never been easier. Alongside this, we've incorporated standard sized PTFE lined spherical bearings, effectively eliminating any deflection present in OEM bushings. This addition significantly improves compliance, resulting in more precise control during challenging manoeuvres. Moreover, our thoughtfully designed Delrin spring locator retains the spring while eliminating any unwanted spring noise.

Specs:

- Suits race style 2.5" OD closed and ground springs

- Laser cut, CNC folded and TIG welded sheet metal design

- Made from 4130 chromoly steel

- FEA tested for strength

- Double adjuster for easy on-car alignment adjustments

- Adjustment range of -17mm to +40mm

- standard PTFE lined spherical bearings

- Delrin spring locator

Notes

** Spring perch between spring and chassis required for locating and adjusting spring   **

** Only suits 2.5" OD race style springs **

Recommended spring lengths:

GKTECH Rear Upright - 225mm (9")

OEM Rear Upright - 200-225mm (8-9")

FAQ’s

Will these fit my car?

We can only confirm fitment for the vehicles listed above under confirmed fitment.

How long is the warranty on these arms?

All GKTECH suspension arms come with a lifetime warranty against manufacturing defects and the Teflon lined rose joints come with a 1 year replacement warranty. We stock spare bearings so even after the 12 months is up we can still help with replacements, worse case scenario they're a 5/8 rose joint for the inner bearings and a 3/4 for the outer (ball joint) and are readily available through your local autoshop.

Are these suspension arms legal for use on street cars?

Our understanding is that any suspension arm with a rose joint is not legal for street use in Australia. However we do recommend that you contact your local RTA for clarification/confirmation. Whether you use a suspension arm with a rose joint on public roads is at your discretion.

Are there any special tools required?

No, a spanner set will do the job which we do sell separately here - Open ended spanners

Do you carry spare parts for this product?

Yes we carry the following spare parts for this product;

Replacement Pcml12TES Bearing

VEHICLE COMPATIBILITY

NOTE:

Nissan V35 Skyline Coupe (2003-2007 Only)

Nissan V35 Skyline Sedan (2003-2006 Only)

NISSAN

V35 SKYLINE

Z33 350Z

VIP Motorsport is an official UK & European stockist of GKTech products. Our stock is directly linked with GK Tech AU, if the item is out of stock with us please contact us for a lead time.
