DBA XP Brake Kit Front for Nissan 350Z Z33 03-09 - DBA4600S-1520XP

Ideal for spirited driving

High quality, high performance to suit your requirements

Price includes 2 brake discs & Front Pads

TECHNICAL INFORMATION:

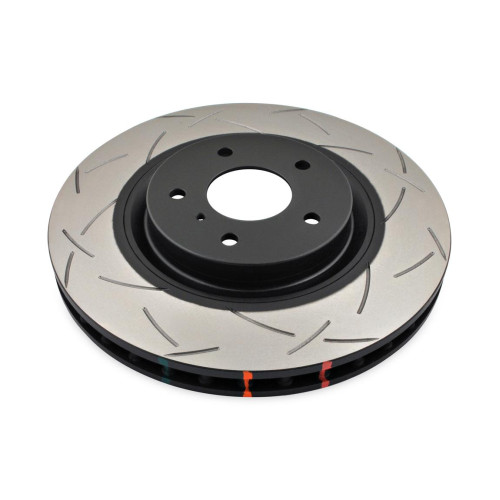

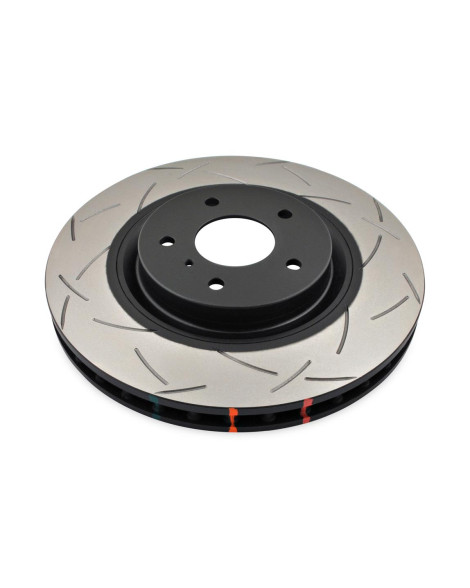

DISCS

Diameter [mm]:324

Disc Vent:Kangaroo Paw

Number of Holes:5

Inner Diameter [mm]:68

Minimum Thickness [mm]:28

Thickness [mm]:30

Height [mm]:49

Stage:Stage 4

Axle:Front

Weight [kg]:9.3

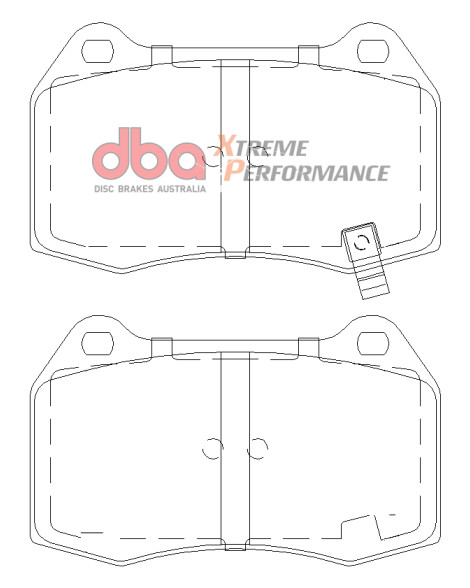

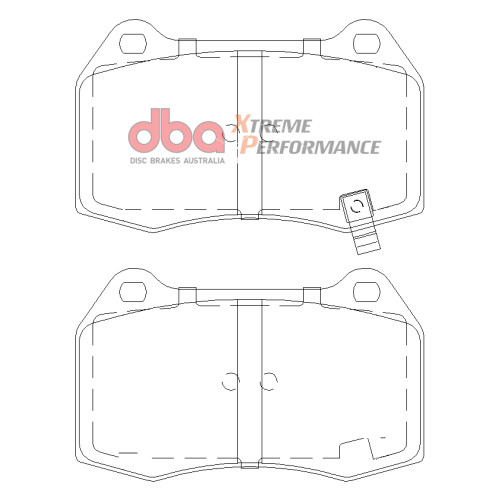

BRAKE PADS

Width [mm]:119.7

Height [mm]:73.4

Pad thickness [mm]:14.3

FMSI:7858-D960

OEM:D10F0CD026

Axle:Front

Total Weight [kg]:20.61

Compatible Cars

NISSAN 350Z 2003-2009 3.5 (2003-2009) Front Brake Caliper: Brembo

NISSAN Skyline (V35) V35 2001-2004 3.5 Manual (2001-2004) Front Brake Caliper: Brembo

DBA’s New Brake kit of T3 4000 or 5000 series slotted rotors and Xtreme Performance (XP) brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

Specifications:

Street performance and occasional track day suitable

Perfectly matching and extensively tested combination of disc and pad

Save 5% of the price when purchasing Combo

DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system

DBA discs: T3 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite

DBA discs: Thermal Stability Profiling (TSP) and enhance durability of the disc under heavy braking conditions

DBA pads: Semi-metallic, carbon fibre friction material

DBA pads: G-G Class Friction (0.45 average mu from low to high temperatures)

DBA pads: Excellent high temperature performance

DBA pads: Optimal braking consistency up to 550℃ (1022℉)

Direct fit, no changes required over stock set up
