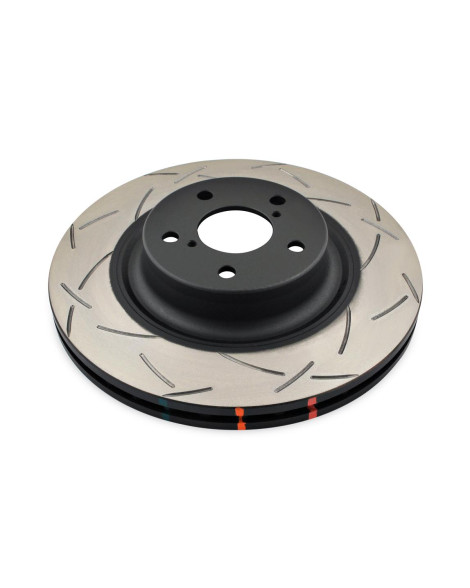

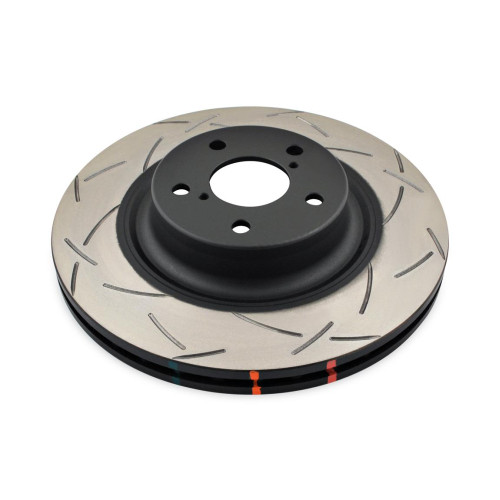

DBA Front 4000 Series Brake Discs Grooved DBA4650S

DBA4650S - 4000 series - T3

Ideal for spirited driving

High quality, high performance to suit your requirements

One box includes 1 disc per axle (Left & Right)

Confirmed Applications

SUBARU BRZ 2012-2022 2.0 200BHP (2012-2022) Front Brake Caliper: Tokico

TOYOTA GR86 2021- 2.4 234HP (2021-) Front Brake Caliper: Brembo

TOYOTA GT86 2012-2022 2.0 200BHP (2012-2022) Front Brake Caliper: Tokico

Technical Information

Diameter [mm]: 294

Disc Vent: Kangaroo Paw

Number of Holes: 5

Inner Diameter [mm]: 58

Minimum Thickness [mm]: 22

Thickness [mm]: 24

Height [mm]: 57

Pitch Circle [mm]: 100

Stage: Stage 4

ECE R90 number: E11*90R02/06*60536*00

Total Weight [kg]: 7.79

DBA’s 4000 Series T3 is the ultimate in direct replacement single-piece performance brake rotor. Featuring all the benefits of the 4000 Series plus DBA’s patented world renowned T3 bi-directional slot design.

Built on the foundations of DBA’s T2 slot, the T3 slot design features additional, precise, CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

DBA’s revolutionary universal slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.

DBA’s 4000 Series T3 rotors are recommended for all performance applications from street driving, 4×4 and SUV, light utility vehicles, track days, rally cars and armoured vehicles.

T3 rotors are denoted by the suffix (S) in 4000 Series part numbers.

VIP Motorsport is an official Dealer of Disc Brakes Australia (DBA Brakes) in the UK! Contact us for a lead time.
