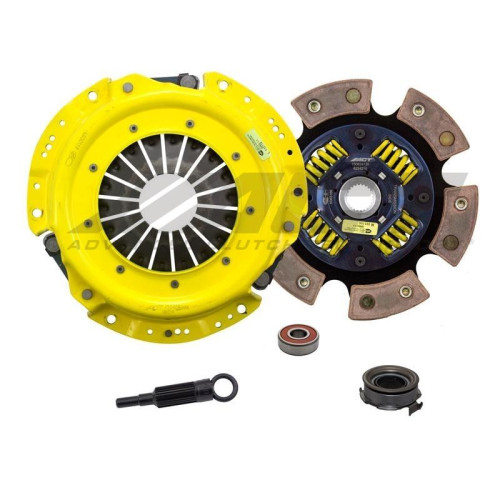

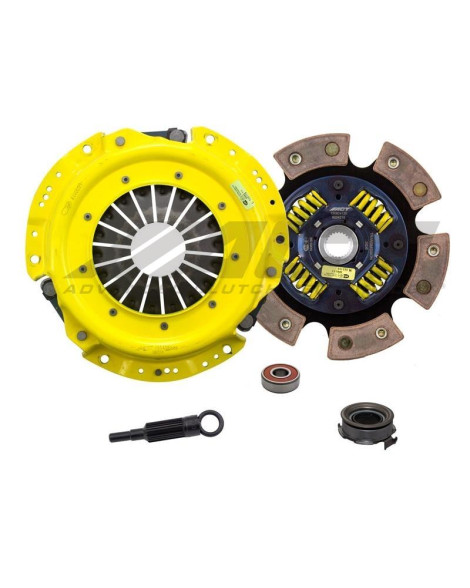

SB2-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle;

Life: Moderate friction life, extended by ACT's exclusive diaphragm design;

Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance;

Recommended Use: Recommended for high horsepower street or race use;

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

NOTE: Conversion kit-Includes ACT Prolite flywheel. Must use ACT Flywheel (included in kit).

Product Weight (lbs.)

15

Disc Type

Sprung Race Disc

Torque Capacity Over OE

82%

Torque Capacity (ft/lbs.)

399

Pressure Plate Type

Heavy Duty

Input Shaft Diameter (Inches)

1

Friction Surface Diameter (mm)

224

Item Description

HD/Race Sprung 6 Pad

Disc Material

Ceramic

Pad Quantity

6

Warranty

12 Months

Spline Count

24

Friction Surface Diameter (Inches)

8.8

VIP Motorsport is an official UK stockist of ACT Clutches in the UK. Our stock is directly linked with ACT in the USA, if the item is out of stock with us it could take up to 2 working weeks to arrive with you. Contact us for definite stock.
