HKS Heavy Duty Timing Belt for Toyota 2JZ-GTE/GE Supra / Chaser / Mark II 24999-AT004

Confirmed Applications

Fits 2JZ-GE & 2JZ-GTE Applications

Aristo JZS160,161 2JZ-G(T)E

Aristo JZS147 2JZ-G(T)E

Cresta JZX10# 2JZ-GE

Cresta JZX9# 2JZ-GE

SUPRA JZA80 2JZ-G(T)E

SOARER JZZ31 2JZ-GE

CHASER JZX10# 2JZ-GE

CHASER JZX9# 2JZ-GE

MARK II JZX10# 2JZ-GE

MARK II JZX9# 2JZ-GE

Fine Tune Timing Belt

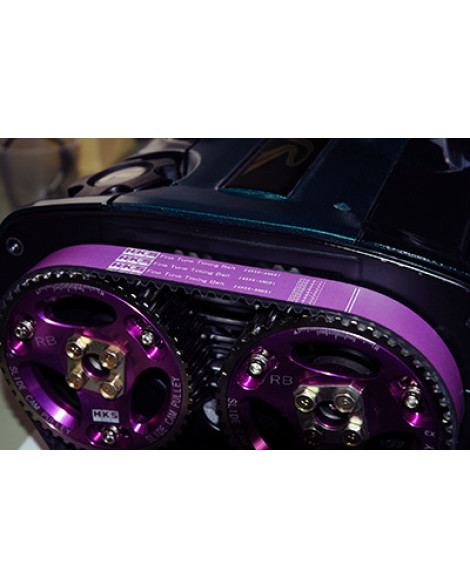

This timing belts best suited for use with HKS Slide Cam-Pulley. Optimized belt strength for each engine application makes the Fine Tune Timing Belt ideal for use with HKS Slide Cam-Pulleys for high power/high RPM engine.

Belt strength has been optimized for each engine application and designed to allow stable belt tension even when heat expansion occurs in the engine

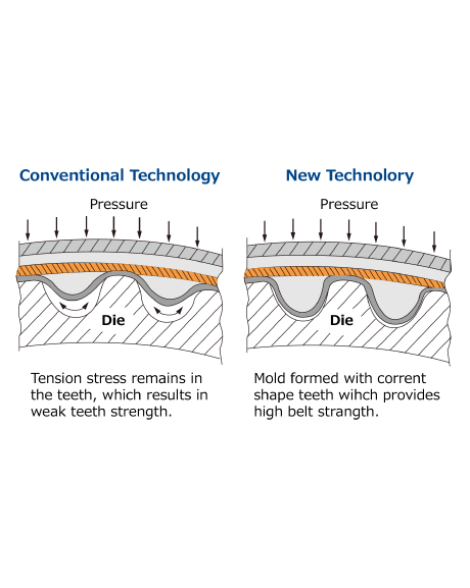

Previous timing belt manufacturing techniques have involved with applying pressure from the outside to the teeth. This applies tension to teeth making them weaker. By forming a mould with the correct shape of teeth to begin with, it allows the teeth shape to be formed without compromising belt strength and can decrease the belt skipping at high torque engine.

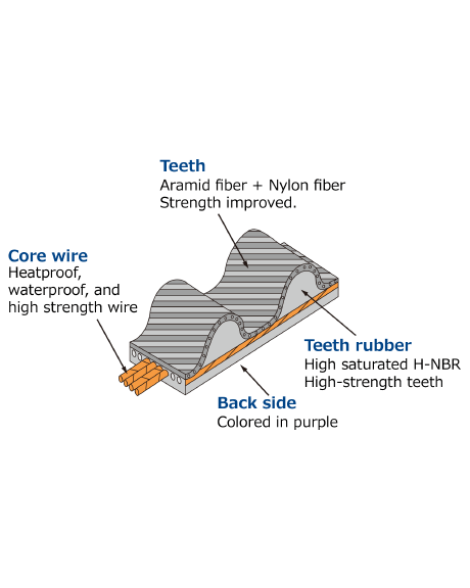

Teeth rubber is made from H-NBR grade rubber for additional strength.

Balancer belt for 4G63 is also available. By combining both timing belt and balancer belt, the load and stress can be reduced for both engine and chassis

* Necessity of Changing the Balancer Belt

The balancer is designed to reduce engine vibration by creating a vibration in the opposite direction to the engine. When used at high RPM such as on circuits, the vibration will naturally increase which causes more load on the balancer. Moreover, the balancer rotates at double speed of the crankshaft which will cause the belt to stretch at a faster rate compare to the other belts. This stretch will eventually put the balancer out of synchronization with the crankshaft, causing more vibration and then eventually the belt may break up. For this reason, HKS recommends that when the timing belt is changed, the balancer belt should also be changed with a strengthened item to allow the balancer for effective, accurate and reducing stress on the engine and chassis.
