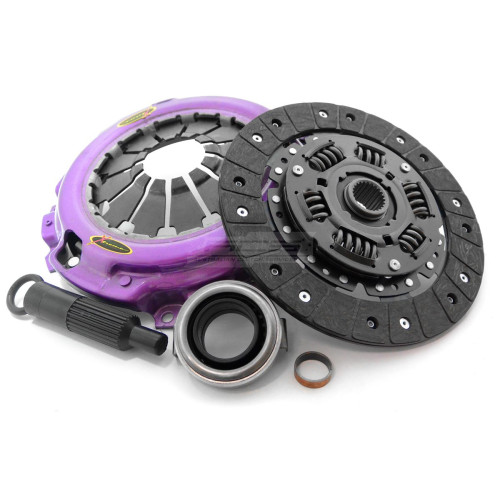

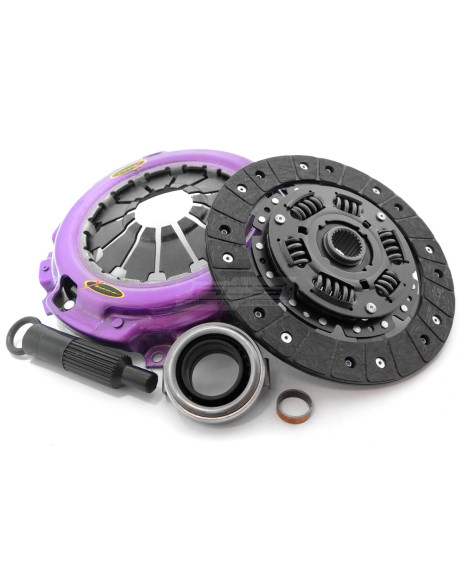

Xtreme Stage 1 Clutch Kit 200ft/lbs for Honda Civic Type-R EP3 / Integra DC5 2001-2006 KHN22022-1A

Confirmed Applications

Honda Civic 2001.09-2005.09 Gen. VII | 2.0 Type-R (EP3) K20A2 1998 Petrol 147 kW 200 BHP (2001.09 - 2005.09)

Honda Civic 2006.09-2012.01 Gen. VIII | Type R (FN2) K20Z4 1998 Petrol 148 kW 201 BHP (2006.09 - 2012.01)

Honda Civic 2007.08-2010.09 Gen. VIII | 2.0 i-VTEC Type R (FD2) K20A5 1998 Petrol 165 kW 224 BHP (2007.08 - 2010.09)

Honda Civic 2010.03-2010.12 Gen. VIII | 2.0 i-VTEC Type R (FN2) K20Z4 1998 Petrol 177 kW 241 BHP (2010.03 - 2010.12)

Honda Integra 2002.02-2007 2.0 16V Type-R (DC5) K20Z1 1998 Petrol 162 kW 220 BHP (2002.02-2007)

Honda Integra 2004.10-2007 2.0 (DC5) K20A2 1998 Petrol 147 kW 200 BHP (2004.10 - 2007)

Honda Integra 2004.10-2007.04 2.0 Type-S K20Z1 1998 Petrol 154 kW 209 BHP (2004.10 - 2007.04)

Specifications

Torque (Nm) Inc FOS 280

Torque (Ftlbs) Inc FOS 206

Flywheel Step +1.0mm/.040""

Clutch Disc Diameter (mm) 215

Clutch Disc Spline Count 24

Clutch Disc Spline Diameter (mm) 26

Recommended for Street Performance

Stage Stage 1

Weight [KG]: 5.7

Xtreme Performance - sprung organic kit /-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

Torque capacity 280Nm

Clamp load 820kg Increased over standard

Organic Friction Discs

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

VIP Motorsport is a UK Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
