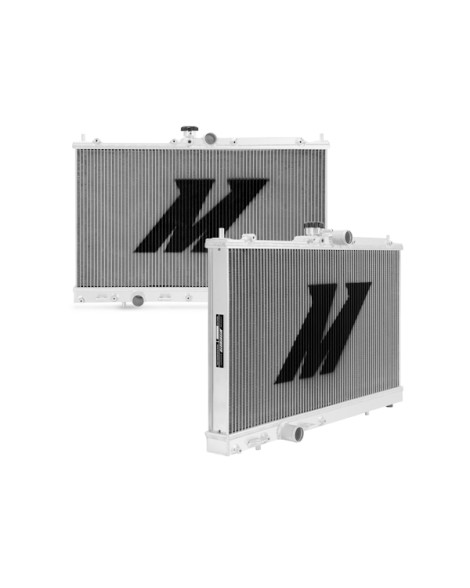

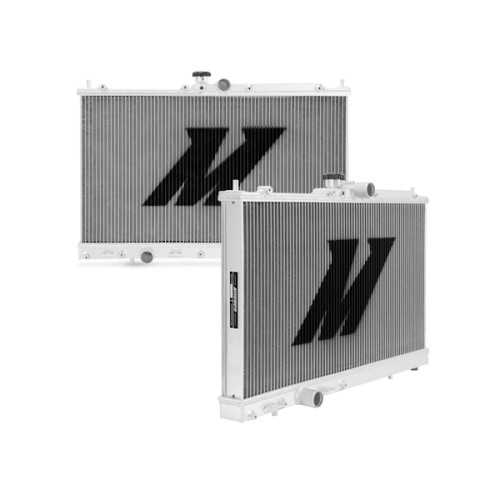

Mishimoto Performance Aluminium Radiator for Mitsubishi EVO 7/8/9 VII-IX 01-07 MMRAD-EVO-01

KEY FEATURES

Full-aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency

Manufactured with robust TIG-welded end tanks for improved structural rigidity

Constructed with a 100-percent brazed aluminum core for maximum reliability

Substantial core thickness provides increased coolant capacity, which directly results in improved cooling efficiency and engine temperature reduction

Engineered to original equipment specifications for the 2001-2007 Mitsubishi Lancer Evolution 7/8/9

Having trouble keeping coolant temperatures under control in your stock or modified Evo? Whether you are making passes at the strip or boosting up the local hill climb course, retaining optimal coolant temperatures is key to preserving the life of your engine. The Mishimoto Lancer Evolution Performance aluminium Radiator is an ideal upgrade for the stock radiator with plastic end tanks. The Mishimoto radiator features a full-aluminium construction, which provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency. Mishimoto radiators are constructed using a 100% brazed aluminium core with robust TIG-welded end tanks, which result in maximum reliability, superior structural rigidity, and consistent performance in even the most demanding environments.

This radiator is engineered to retain stock fitment for the Mitsubishi Evolution 7, 8, and 9 for hassle-free bolt-in fitment. With a core thickness of nearly 2 inches, this radiator dwarfs the factory heat exchanger and is perfect for use with vehicles utilizing upgraded turbochargers or for stock vehicles in need of a reliable replacement. This performance radiator includes a Mishimoto 1.3 Bar High-Pressure Radiator Cap, which effectively raises the boiling point of coolant to create a safer and more efficient system. This radiator also includes a magnetic drain plug with dowty seal, which removes circulating metal fragments from the cooling system, providing further engine protection. As with all our products, this aluminium radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

TECH SPECS

OVERALL HEIGHT (IN) 28.2

OVERALL LENGTH (IN)         19.5

OVERALL WIDTH (IN)  2.47

CORE LENGTH (IN)      14.76

CORE HEIGHT (IN)       27.08

FLUID CAPACITY (GAL)         1.79

ROWS        2

INLET (IN) 1.4

OUTLET (IN)       1.4

CORE THICKNESS (IN) 1.97

DPI   2448

ENGINE CODES  4G63T

CHASSIS CODES CT9A

NOTE         This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.

COOLANT CAPACITY  1.79

INCLUDES

Mishimoto Radiator

Mishimoto Radiator Cap

Magnetic Drain Plug

1/8-inch NPT Plug

Mishimoto Lifetime Warranty

VIP Motorsport is a UK Stockist of Mishimoto. Contact us for a lead time.
