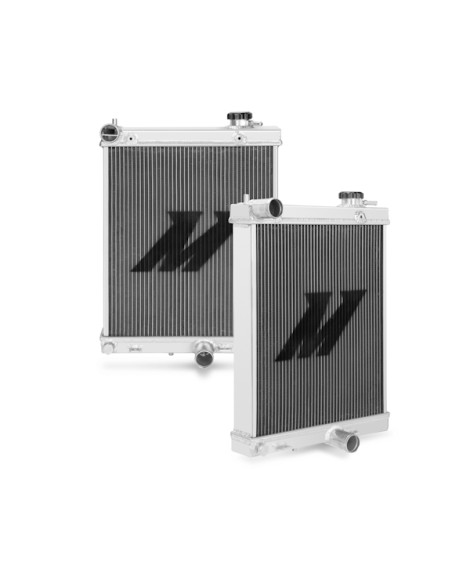

Mitsubishi Lancer Evolution 7/8/9 2001–2007 Mishimoto Half-Size Performance Aluminium Radiator

Freeing up engine bay space for a front-facing or large turbocharger can be a challenge in the Mitsubishi Lancer Evolution. Keep your high-horsepower Evo cool with the Mishimoto Lancer Evolution 7/8/9 Half-Size Performance Aluminium Radiator. This radiator features full-aluminium construction with precision TIG-welded end tanks for superior heat dissipation and durability. The large 2.05" thick brazed aluminium core provides clearance for upgraded turbocharger setups while maintaining optimal coolant temperatures for runs at the drag strip or through the autocross course. This radiator features a unique internal baffle that provides superior fluid dispersion resulting in lower coolant temperatures. Included with this radiator is a Mishimoto Magnetic Oil Drain Plug, M12 x 1.5 with high-quality dowty seal for removal of any metal fragments in your cooling system. The radiator also includes a Mishimoto 1.3 Bar High-Pressure Radiator Cap that effectively raises the boiling point of coolant to create a safer and more efficient system. The Mishimoto Lancer Evolution Half-Size Performance Aluminium Radiator works perfectly with factory coolant hoses or a Mishimoto Silicone Radiator Hose Kit and includes an upper radiator stay, making this a hassle-free, bolt-on installation. Installing a capable fan solution is easy with the Mishimoto radiator thanks to the incorporated stock shroud-mounting points. Optionally a slim fan can be installed for improved clearance. This radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• Direct fit for the 2001–2007 Mitsubishi Lancer Evolution
• Half-size design provides clearance for large twin-scroll and forward-facing turbocharger setups
• All-aluminium construction with TIG-welded end tanks
• 2.05" thick brazed aluminium core provides optimal cooling and superior durability
• Internal baffle provides exceptional fluid dispersion throughout the core and optimal cooling efficiency
• Applicable for use with stock or Mishimoto silicone radiator hoses
• Includes mounting points for stock fan shroud
• Includes magnetic drain plug with dowty seal, 1.3 bar high-pressure radiator cap, and upper radiator aluminium stay
• Mishimoto Lifetime Warranty

Overall Size
14.0" x 19.5" x 4.38"

Core Size
13.38" x 15.2"

Rows
3

Inlet
1.38" (35mm)

Outlet
1.38" (35mm)

Core Thickness
2.05" (52mm)

Purchase Includes
Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug
Upper Radiator Aluminium Stay
Mishimoto Lifetime Warranty

Tank Wall Thickness
2.0mm

Fill Neck
1.50"

Drain Plug Thread Size
M12

Drain Plug Thread Length
1.5mm

Engine Codes
4G63

Chassis Codes
CT9-A

Note
This item is for race vehicles only, with limited street use only when necessary. Not suitable for daily driven vehicles.
