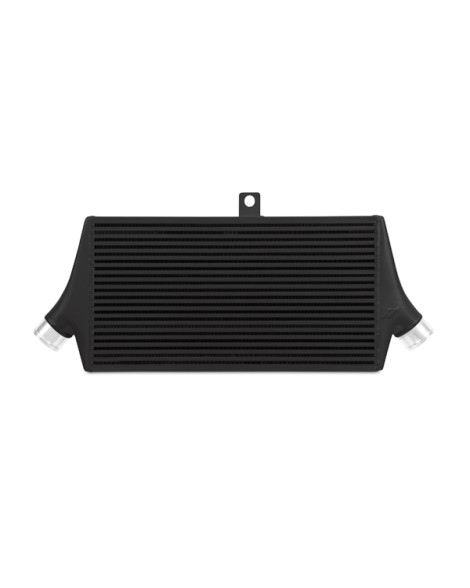

Mitsubishi Lancer Evolution 7/8/9 2001–2007 Mishimoto Race Intercooler Kit

Put an end to high AITs with the Mishimoto Mitsubishi Lancer Evolution 7/8/9 Race Intercooler! This intercooler was precision engineered specifically for the Lancer Evolution and is a completely bolt-in upgrade. The intercooler utilizes a large, 3.5" thick bar-and-plate core which has been designed with a strategic core composition to provide optimal reductions in intake temperatures and minimal pressure loss. The Mishimoto race intercooler is compatible with both stock and Mishimoto intercooler piping and will support vehicles from stock to 600 whp. Our 350 whp test vehicle showed an 8 whp / 10 wtq increase in power compared to the stock intercooler, and the Mishimoto intercooler was able to reduce temperatures by 28°F (16°C). Not only was this intercooler designed with power and efficiency in mind, but our engineers also crafted smooth cast end tanks to promote proper air dispersion through the core, improved airflow, and exceptional durability. Air intake temperatures play a huge role in power output, tuning, and performance. Whether you are taking your Evo through a rally stage or making a pass at the strip, lower temperatures will be extremely beneficial. This intercooler is available with a Sleek Silver or Stealth Black powder-coated finish for enhanced durability and protection against road debris. As with all our products, the Mishimoto Evolution Race Intercooler includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• Direct fit for the Mitsubishi Lancer Evolution 7/8/9
• Large, 3.5" thick bar-and-plate core with strategic core composition provides optimal cooling and minimal pressure loss
• Provided 8 whp / 10 wtq and reduced intake temperatures by 28°F (16°C) compared to the factory cooler on a test vehicle making 350 whp
• Provides efficient intake temperature reduction for vehicles from stock to 600 whp
• Compatible with stock and Mishimoto intercooler pipes
• All-aluminium cast end tanks provide improved airflow, superior air dispersion through the core, and exceptional strength
• Available with a Sleek Silver or Stealth Black powder-coated finish for enhanced durability and protection against road debris
• Mishimoto Lifetime Warranty

Overall Size
31.5" x 14.5" x 5.75"

Core Size
22.0" x 11.65" x 3.5"

Weight
27 lbs (12.27 kg)

Inlet / Outlet
Inlet: 2.5" O.D. / 2.375" I.D.
Outlet: 2.5" O.D. / 2.375" I.D.

Tank Wall Thickness
3.5mm

Note
This intercooler can be used with stock or aftermarket intercooler pipes. This intercooler is not universal and has application specific mounting points.

Construction
Bar-and-Plate with Cast End Tanks

Fin Specs
External: 7.5 – 8.5 fins per inch
Internal: 7.5 fins per inch

Engine Code
4G63

Chassis Code
CT9A

Purchase Includes
Mishimoto Intercooler
Mishimoto Lifetime Warranty

Fits
01–07 Lancer Evolution 7/8/9 GSR
05–07 Lancer Evolution 8/9 MR

VIP Motorsport is an official Stockist of Mishimoto in the UK & Europe! Our stock is directly linked with Mishimoto USA, if the item is out of stock with us it could take up to two working weeks to arrive with you.
