TOMEI 4G63 SLICING BAFFLE

PART No. TB201A-MT01B

APPLICATION

EVO VIII-IX 4G63

NOTES

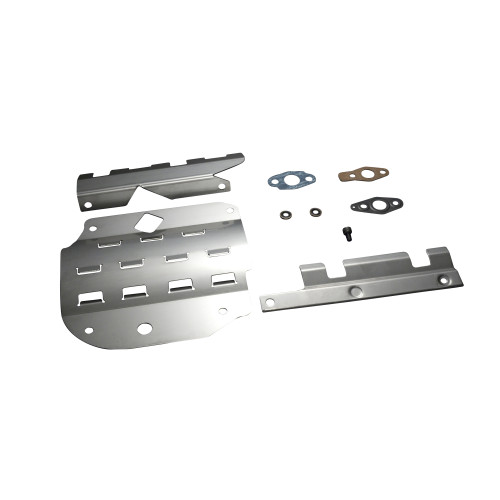

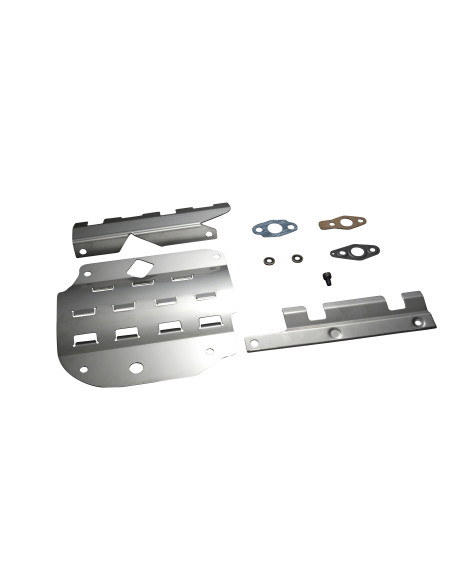

Kit Contents

/EVO IV-VI : CENT/RH Plate, Gaskets

/EVO VII-IX : CENT/RH/LH Plates, Gaskets, Hardware

Application:

* This will fit on OEM 2.0L, Tomei 2.2L & Tomei 2.3L Stroker Kits.

One product that serves various purposes, oil baffle and oil cut! The most ideal product for oil management today.

Keeping track of proper oil function inside an engine assembly is vital, especially during high performance driving. This product in essence serves the same purpose as the standard 4G63 baffle except that it has been redesigned for increased efficiency, preventing catastrophic problems such as oil pressure drop. It also serves as a oil cutter which eliminates friction loss and is recommended for anyone who wants to take their 4G63 to the next level.

Baffle Function

Safely shelters the oil in the pan after blocking

unnecessary amount of oil scooped from the crank.

■ Stabilizes oil pressure inside engine

■ Prevents oil cavitations in passages

■ Securely supplies oil pressure to related components

Oil Cutter Function

Literally slices off the excess oil

accumulated on the crankshaft.

■ Prevents unwanted friction caused by

crankshaft oil slushing.

■ Increased power output at higher RPM band.

■ Increased torque output throughout entire

RPM band

VIP Motorsport is an official stockist of Tomei Exhausts & Products in the UK & Europe. Our stock is directly linked with Tomei USA, if the item is out of stock with us it could take up to two working weeks to be received.
