Tomei Expreme Downpipe for Mitsubishi EVO 7-9 VII-IX 4G63 - TB6060-MT01A

FITS BOTH RHD & LHD VEHICLES.

WIDE MOUTH OUTLET＋3INCH PIPE =OUTLET COMPONENT Ver.2

The increased diameter and flow capacity improves exhaust efficiency whilst reducing secondary exhaust pressure.

The ver.2 was developed to cope with the demands of advanced 4G63 tuning.

In addition, the 74% overall weight reduction improves the vehicle’s responsiveness.

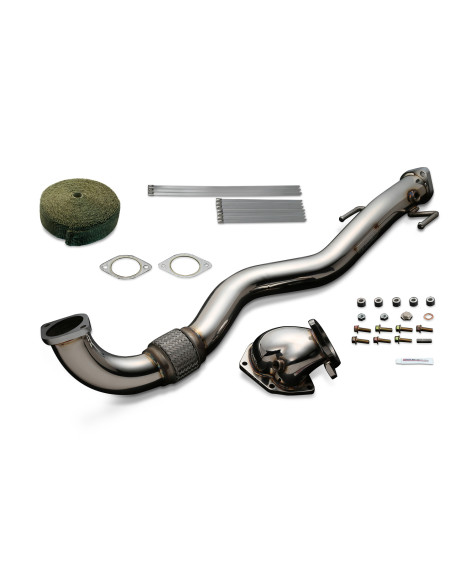

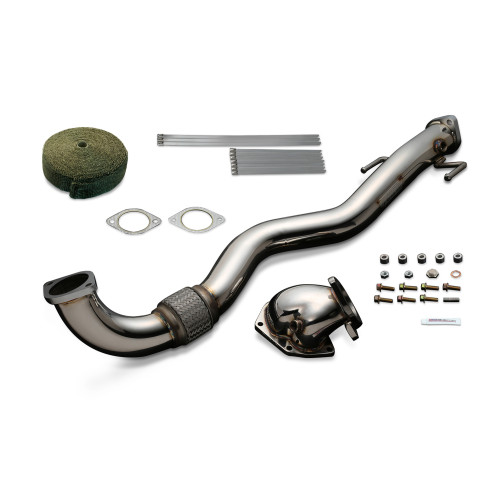

KIT CONTENTS

TURBINE OUTLET

ALUMINUM SPACER

FRONT PIPE

HEX NUT

GASKET(OUTLET TO FRONT PIPE)

COPPER WASHER

GASKET(FRONT PIPE TO CATALYST)

BLIND BOLT

FLANGE BOLT

BOLT SMOOTH PASTE

STUD BOLT

STUD BOLT M10-40 P=1.25 (THREAD 12/26)

TITAN EXHAUST BANDAGE

BANDAGE BAND

APPLICATION

MITSUBISHI LANCER EVOLUTION VII-IX MR

TURBINE OUTLET

940cc High Flow Wide Mouth （vs. stock：130％/vs. old ver.：120％）

58% Weight Reduction

Step-less flange

High strength and precision made using Lost-Wax Casting

Complete with turbo charger bracket

Complete with O2 Sensor Boss

TOMEI

Material SUS304

Volume(cc) 940 (old ver. 780)

Weight 1.75kg

Exit Dia 73.3

Flange Thickness Front 11.0

Flange Thickness Rear 11.5

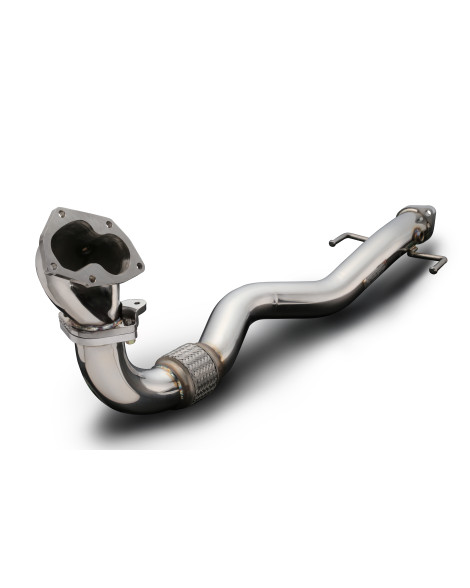

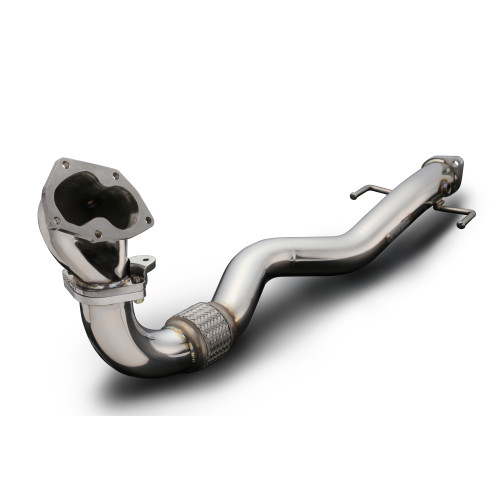

FRONT PIPE

3” Large Diameter Pipe

84% Weight Reduction

3” Diameter Through to Catalytic Converter

Stress-dispersing flexible pipe

Step-less Flange

Fits well with underside layout

TOMEI

Material SUS304

Pipe Dia 76.3

Pipe Thickness(mm) 1.5

Weight 4.05kg

Flange Thickness Front(mm) 11.5

Flange Thickness Rear(mm) 12.0

VIP Motorsport is an official stockist of Tomei Exhausts & Products in the UK & Europe. Our stock is directly linked with Tomei USA, if the item is out of stock with us it could take up to two working weeks to be received.
