DBA Rear XP Brake Kit for Mitsubishi EVO 10 / EVO X 08-16 DBA42225S-2215XP

DBA42225S-2215XP - Brake Kit - 4000 Series T3 Slotted & Xtreme Performance Brake Pads (2x DBA42225S + DB2215XP)

Ideal for spirited driving

High quality, high performance to suit your requirements

One box includes 1 set per axle

TECHNICAL INFORMATION:

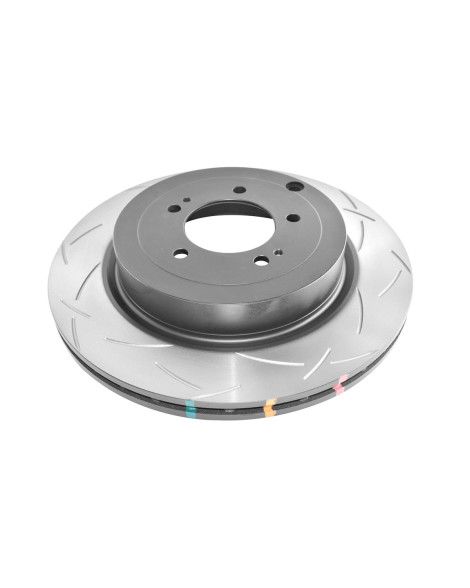

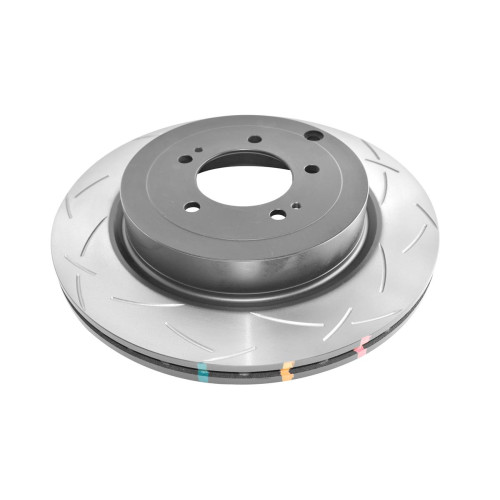

DISCS

Diameter [mm]: 330

Disc Vent:Kangaroo Paw

Number of Holes:5

Inner Diameter [mm]:80

Minimum Thickness [mm]:20

Thickness [mm]:22

Height [mm]:59

Pitch Circle [mm]:114.3

Stage:Stage 4

Axle:Rear

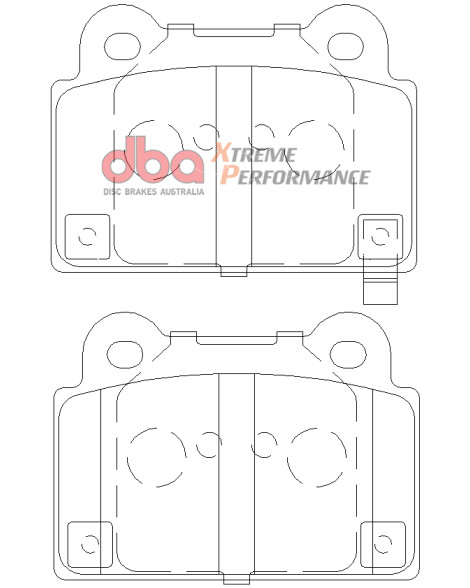

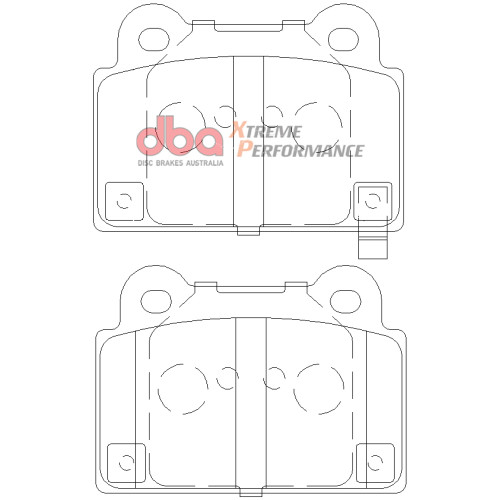

PADS

Width [mm]:86.6

Height [mm]:63.5

Pad thickness [mm]:13.6

FMSI:8477-D1368

OEM:4605A584

Axle:Rear

Total Weight [kg]:1.19

Compatible Cars

MITSUBISHI Lancer Evo 10 2008-2016 2.0 Turbo (2008-2016) Rear

DBA’s New Brake kit of T3 4000 or 5000 series slotted rotors and Xtreme Performance (XP) brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

Specifications:

Street performance and occasional track day suitable

Perfectly matching and extensively tested combination of disc and pad

Save 5% of the price when purchasing Combo

DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system

DBA discs: T3 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite

DBA discs: Thermal Stability Profiling (TSP) and enhance durability of the disc under heavy braking conditions

DBA pads: Semi-metallic, carbon fibre friction material

DBA pads: G-G Class Friction (0.45 average mu from low to high temperatures)

DBA pads: Excellent high temperature performance

DBA pads: Optimal braking consistency up to 550℃ (1022℉)

Direct fit, no changes required over stock set up

One combo - one manufacturer = no warranty issues

Contents of Kit DBA42225S-2215XP

DB2215XP - Brake Pads Xtreme Performance | Rear Axle

DBA42225S - 4000 series - T3

VIP Motorsport is an official Dealer of Disc Brakes Australia (DBA Brakes) in the UK! Contact us for a lead time.
