DBA Front XP Brake Kit for Mitsubishi EVO 10 / EVO X 08-16 DBA42224S-1678XP

Brake Kit (2x DBA 42224S + DB1678XP)

Ideal for spirited driving

High quality, high performance to suit your requirements

Price includes 2 brake discs & Front Pads

TECHNICAL INFORMATION:

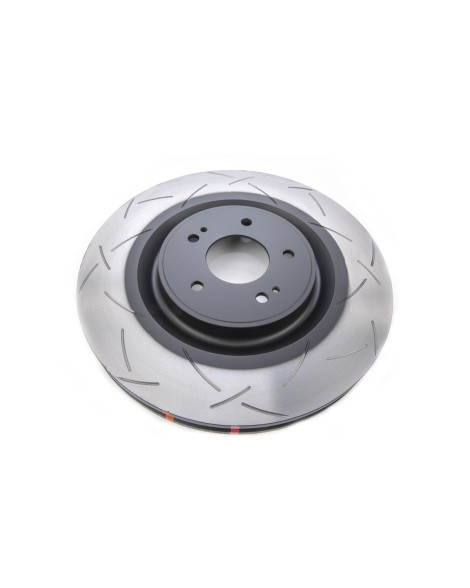

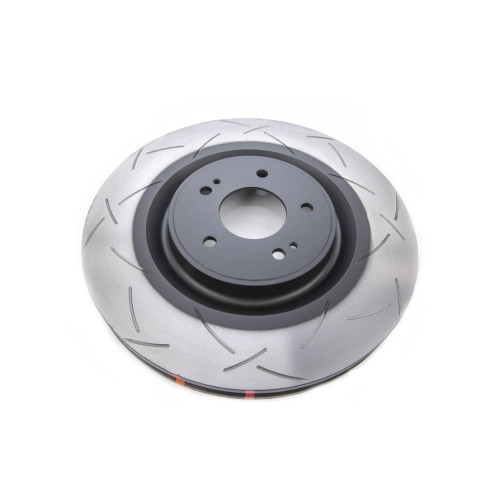

DISCS

Diameter [mm]: 350

Disc Vent:Kangaroo Paw

Number of Holes:5

Inner Diameter [mm]:69

Minimum Thickness [mm]:30

Thickness [mm]:32

Height [mm]:44

Pitch Circle [mm]:114.3

Stage:Stage 4

Axle:Front

BRAKE PADS

Width [mm]: 131.8

Height [mm]: 77.3

Pad thickness [mm]: 14

FMSI: 7902-D1001

OEM: 26296FE100

Axle:Front

Compatible Cars

MITSUBISHI Lancer Evo 10 2008-2016 2.0 Turbo (2008-2016) Front

DBA’s New Brake kit of T3 4000 or 5000 series slotted rotors and Xtreme Performance (XP) brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

Specifications:

Street performance and occasional track day suitable

Perfectly matching and extensively tested combination of disc and pad

Save 5% of the price when purchasing Combo

DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system

DBA discs: T3 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite

DBA discs: Thermal Stability Profiling (TSP) and enhance durability of the disc under heavy braking conditions

DBA pads: Semi-metallic, carbon fibre friction material

DBA pads: G-G Class Friction (0.45 average mu from low to high temperatures)

DBA pads: Excellent high temperature performance

DBA pads: Optimal braking consistency up to 550℃ (1022℉)

Direct fit, no changes required over stock set up

VIP Motorsport is an official Dealer of Disc Brakes Australia (DBA Brakes) in the UK! Contact us for a lead time.
