COBB TUNING MITSUBISHI 3-PORT BOOST CONTROL SOLENOID (BCS)

TUNING REQUIRED!! Please download the appropriate Off The Shelf Map for your vehicle or contact your Protunerin order to safely utilize this part!

The COBB 3-Port Boost Solenoid is an excellent upgrade for modern turbocharged vehicles, enabling precise boost control in a tidy package that is easy to install and tune. Our BCS will eliminate boost fluctuations inherent in OEM boost control systems, providing the necessary stable and repeatable boost control required for accurate tuning and consistent performance. The COBB BCS is equally capable of providing stable boost control at stock boost levels as well as extremely high boost levels associated with big-power builds, with an operating range of up to 120psi.

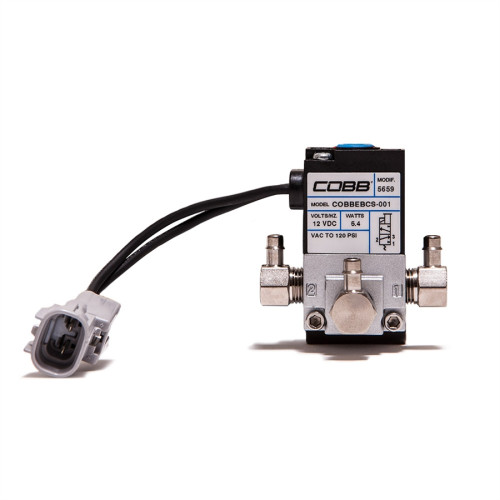

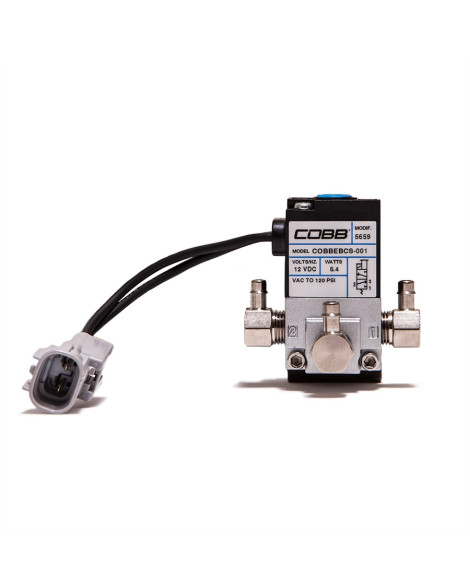

The COBB Tuning 3-Port BCS features 1/8" low-profile barb fittings to keep the unit compact, and are nickel coated for corrosion resistance. Optional 1/4" nickel plated fittings are also available separately. Viton spools and seals are used throughout for long life and lubricated with Dow Corning silicone grease. The manual override port is sealed with an O-ring, the wiring harness is sealed to the casing using a waterproof grommet and the solenoid wires are ultrasonically welded to the coil, making the device waterproof and safe to wash.

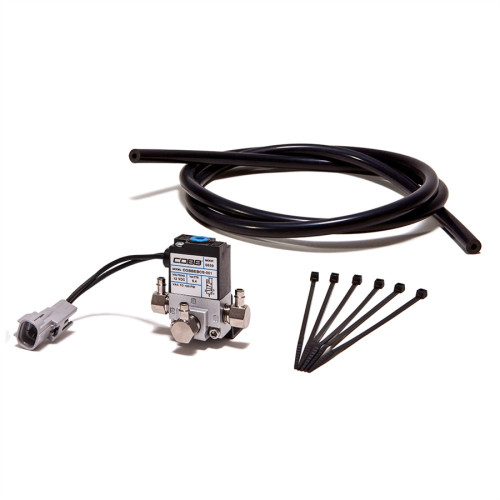

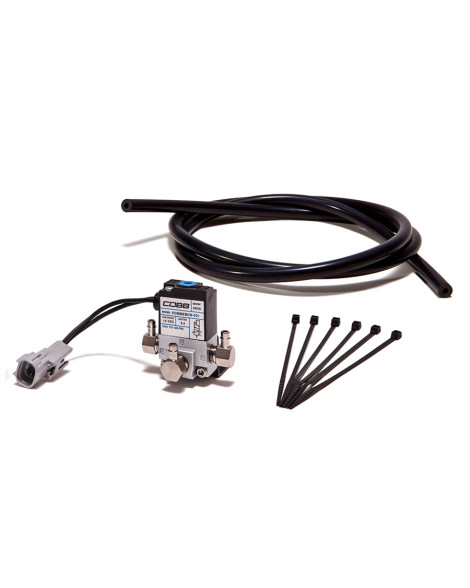

COBB Tuning has made the COBB 3-Port BCS installation as simple as possible. It mounts in the stock location and plugs directly into the stock wiring harness, making the physical install and electrical connection as straightforward possible. The BCS comes with a custom aluminum mounting bracket, stainless steel hardware, the necessary boost-line to complete all connections and zip-ties to route the boost-line neatly through the engine bay. The install instructions are easy to understand, with photographs and illustrations to guide you through the installation process, and include routing instructions for both internal and external wastegate configurations.

The COBB Tuning 3-Port BCS is the ultimate electronic boost control device for modern turbocharged applications, designed with outstanding boost control, engineered for consistent performance and extended service life, and configured for easy installation. Get your boost under control and Access the Potential of your turbocharged Mitsubishi today!

WHY?

The COBB 3-Port Boost Control Solenoid (BCS) adds the flexibility and precision needed for properly controlling boost via the factory ECU. Many upgrades to the turbocharging system (such as larger turbochargers and external wastegates) require the increased performance, reliability, flexibility, safety and installation options that the COBB 3-Port BCS provides.

FEATURES

Mitsubishi 3-Port Boost Control Solenoid (BCS)

Accurate and Consistent Boost Control

Plug and Play 18-Gauge Wiring Harness

1/8" Nickel Plated Barbed Fittings

Rated up to 120psi

Custom Aluminum BCS Mount

CONFIRMED APPLICATIONS

2008 Mitsubishi Evolution X GSR MT USDM

2008 Mitsubishi Evolution X MR AT USDM

2010 Mitsubishi Evolution X GSR MT USDM

2010 Mitsubishi Evolution X GSR SE AT USDM

2010 Mitsubishi Evolution X MR AT USDM

2010 Mitsubishi Evolution X MRT AT USDM

2011 Mitsubishi Evolution X GSR MT USDM

2011 Mitsubishi Evolution X GSR SE AT USDM

2011 Mitsubishi Evolution X MR AT USDM

2011 Mitsubishi Evolution X MRT AT USDM

2012 Mitsubishi Evolution X GSR MT USDM

2012 Mitsubishi Evolution X MR AT USDM

2012 Mitsubishi Evolution X MRT AT USDM

2013 Mitsubishi Evolution X GSR MT USDM

2013 Mitsubishi Evolution X MR AT USDM

2014 Mitsubishi Evolution X GSR MT USDM

2014 Mitsubishi Evolution X MR AT USDM

2015 Mitsubishi Evolution X Final Edition MT USDM

2015 Mitsubishi Evolution X GSR MT USDM

2015 Mitsubishi Evolution X MR AT USDM

2009 Mitsubishi Lancer Ralliart AT USDM

2010 Mitsubishi Lancer Ralliart AT USDM

2011 Mitsubishi Lancer Ralliart AT USDM

2012 Mitsubishi Lancer Ralliart AT USDM

2013 Mitsubishi Lancer Ralliart AT USDM

2014 Mitsubishi Lancer Ralliart AT USDM

2015 Mitsubishi Lancer Ralliart AT USDM

VIP Motorsport is an official Dealer of COBB Tuning in the UK! Our stock is Directly linked with COBB Tuning, if the item is not in stock with us it could take up to two working weeks to arrive with you.
