Help the air flow through the intercooling system of your L15B7 with the Mishimoto Performance Intercooler Pipe Kit for your 2016+ Honda Civic 1.5T or 2017+ Civic Si! The stock equipment on your Honda Civic is riddled with bends, and is constructed from degradation-prone materials at a restrictive diameter. All of these are characteristics that will limit the potential of your turbo-Civic. We here at Mishimoto want to remove the restriction on the future potential of the L15B7.

We started with the size of the pipes. We added 13 mm overall to both sides of the piping system, bumping the diameters from 42 mm to 55 mm, equating in a 30% increase in size. We also took the liberty of reducing the angles of the bends in the piping, giving the charged air a more direct flow through the intercooling system.

The size and direction of the piping wasn’t the only change either. Gone is the degradation-prone plastic that makes up the cold-side piping, replaced with a section of mandrel-bent aluminium piping, giving your intercooler pipe kit an improvement in durability and style. We also took the liberty to replace the rubber in the stock kit with couplers constructed from 5 layers of durable silicone embedded with heat-resistant fibers, keeping engine heat out of your intercooler's charged air.

The result of adding the Mishimoto Intercooler Pipe kit to your 2016+ Honda Civic 1.5T or 2017+ Civic Si is the addition of flow through your intercooling system, along with a few extra horses under the hood, and the potential for more with a tune. The 2016+ Honda Civic 1.5T Mishimoto Performance Intercooler Pipe Mistubishi Lancer Evolution X 2008+ Mishimoto Performance Intercooler Kit

A high-horsepower Evo demands an intercooler setup that provides optimal airflow and a cool, dense charge of air. Modified vehicles running high boost pressures often have increased air intake temperatures (AITs) and heat soak, both of which can result in diminished performance. Keep your intake temperatures under control with the Mishimoto Mitsubishi Lancer Evolution X Performance Intercooler kit. This intercooler kit is a direct bolt-on unit engineered specifically for the Evo X. Thanks to an efficient 3.5-inch thick bar-and-plate core, this intercooler provides optimal heat dissipation and low AITs. The robust cast aluminium end tanks provide superior durability and smooth, uninterrupted airflow.

The intercooler core is a strategic fin design that promotes substantial heat exchange while providing minimal pressure loss across the core. This kit also features polished 2.5-inch mandrel-bent aluminium piping and four-layer 100% silicone couplers with heat-resistant embedded fibers. These couplers offer increased heat and pressure tolerance compared to the factory rubber connections. Dependable charge-air connections are essential for reliable operation. The Mishimoto Mitsubishi Evolution X Intercooler Pipe Kit includes high-quality stainless steel T-bolt clamps for each connection. These clamps provide the holding power you need for increased boost pressures! The Mishimoto Mitsubishi Lancer Evolution X Performance Intercooler kit provides a dyno-proven increase of 10 whp and 10 tq, and it will support modified vehicles up to 600 whp! Whether you are making a pass at the drag strip or sliding around a rally stage, this intercooler kit will provide the cooling that your engine needs to perform at its best. This intercooler is available with a powder-coated finish in Sleek Silver or Stealth Black. As with all our products, this intercooler kit includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• Direct fit for the 2008+ Mitsubishi Lancer Evolution X
• 10 whp and 10 tq bolt-on power increase
• Efficient 3.5" thick bar-and-plate core provides optimal heat dissipation and low AITs
• Full aluminium cast end tanks provide increased durability and smooth, uninterrupted airflow
• Strategically designed fins for minimal pressure loss
• Substantial core volume will support vehicles up to 600 whp
• Bead-rolled pipe ends prevent boost leaks and coupler disconnection
• Silicone couplers provide increased heat and pressure tolerance
• Available with a powder-coated finish in Sleek Silver or Stealth Black
• Mishimoto Lifetime Warranty

Overall Size
28.3" x 13.7" x 4.5" (w/o mounting pegs)

Core Size
19.5" x 12" x 3.5"

Weight
23lbs (10.45 Kg)

Install Difficulty
3 / 5

Construction
Bar and Plate with Cast End Tanks

Inlet / Outlet
Inlet: 2.5" O.D. / 2.375" I.D.
Outlet: 2.5" O.D. 2.375" I.D.

Pipe Construction
Polished Aluminium

Upper Pipes Silicone Couplers
Upper Coupler 1: 1.73" / 2.44", 2.125" / 2.83"
Upper Coupler 2: 2.44", 2.83"
Upper Coupler 3: 2.44", 2.83"

Lower Pipe Silicone Couplers
Lower Coupler 1: 2.44" / 2.71", 2.83" / 3.11"
Lower Coupler 2: 2.44", 2.83"
Lower Coupler 3: 2.44", 2.83"

Pipe Diameter
Inner Diameter–2.375"
Outer Diameter–2.50"

Fin Specs
External: 6.35 fins per inch
Internal: 7.5 fins per inch

Tank Wall thickness
3.5mm

Engine Code
4B11T

Chassis Code
CZ4A

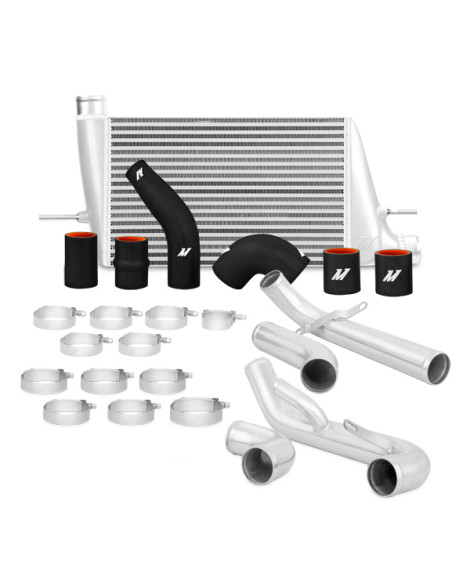

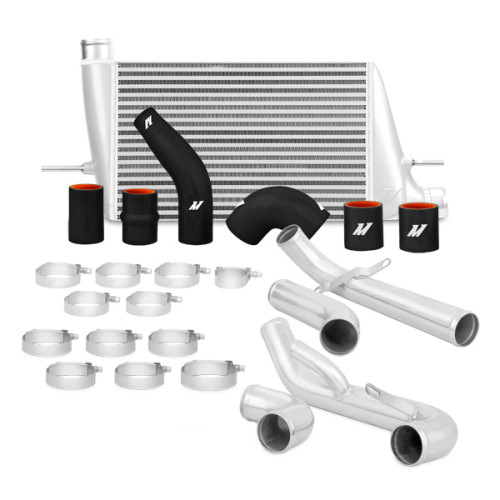

Purchase Includes
Mishimoto Intercooler
CNC Mounting pegs
(4) Polished Aluminium Pipes
(6) Silicone Couplers, Black
(10) 2.75" T-Bolt Clamps
(1) 2" T-Bolt Clamp
(1) 3" T-Bolt Clamp
Limited Lifetime Warranty

Fits
2008+ Lancer Evolution X GSR
2008+ Lancer Evolution X MR

Installation Torque Specs
27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps.
These clamps have an operating range of 18-35 in-lbs (2-4N*M).
Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

Note
This intercooler can be used with OEM or aftermarket intercooler pipes. The CNC mounting pegs must be installed by the customer.
