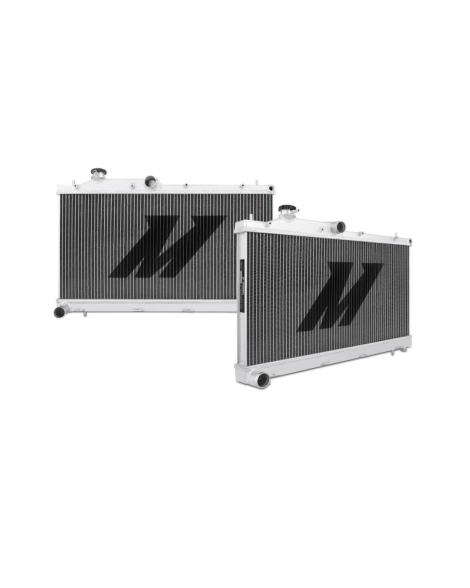

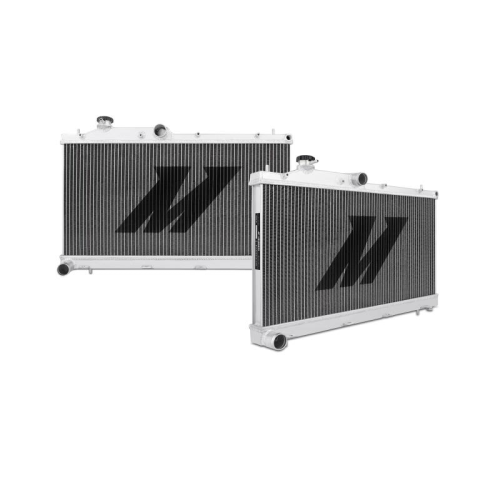

Mishimoto Performance Aluminium Radiator, fits Subaru WRX 2008-2014/Subaru STI 2008-2021

Model MMRAD-STI-08

KEY FEATURES

Direct fit for the 2008-2014 Subaru WRX/2008-2021 STI

Full aluminium construction including durable, TIG-welded end tanks

Features a two-row, 1.65-in thick, efficient brazed aluminium core

Increased fluid capacity and optimal heat dissipation

Provides efficient temperature reduction for use on the street, track, rallycross, or autocross course

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system

Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

The Mishimoto performance aluminium radiator for the WRX and STI is designed and engineered to maximize cooling efficiency by up to 30%, boost engine functions, and most importantly protect your car from overheating. It is the ideal upgrade to the stock Subaru radiator whether you drive your vehicle daily or take it for track runs. The Mishimoto WRX radiator features a lightweight dual core, 100% brazed aluminium, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminium radiator is a direct fit, making installation effortless with no cutting or modification required. This radiator comes with a Mishimoto 1.3 Bar High-Pressure Radiator Cap and, like all our aluminium radiators, comes with the Mishimoto Lifetime Warranty.

OVERALL HEIGHT (IN) 21.8

OVERALL LENGTH (IN)         28

OVERALL WIDTH (IN)  2.15

CORE LENGTH (IN)      27.08

CORE HEIGHT (IN)       13.39

FLUID CAPACITY (GAL)         2.21

ROWS        2

INLET (IN) 1.54

OUTLET (IN)       1.54

CORE THICKNESS (IN) 1.65

DRAIN PLUG THREAD SIZE  M12 x 1.5

DPI   13091/13093

APPLICATIONS

2008-2014 Subaru WRX

2008-2021 Subaru STI

2009-2013 Subaru Forester XT

2005-2009 Subaru Outback XT

2005-2009 Subaru Legacy GT

ENGINE CODES

EJ255

EJ257

CHASSIS CODES

GE

GH

GR

VA

NOTE

This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.

Caution:

The provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two-way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur.

It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.

Use small fitting for:

2008-2014 Subaru WRX

2008-2021 Subaru STI

Use large fitting for:

2010-2014 Subaru WRX

2005-2009 Subaru Legacy GT

2005-2009 Subaru Outback XT

2009-2013 Subaru Forester XT

COOLANT CAPACITY  2.21

Purchase Includes

Mishimoto Radiator

Mishimoto Radiator Cap

Overflow Nipples - 2

Magnetic Drain Plug

Mishimoto Lifetime Warranty

VIP Motorsport is a UK Stockist of Mishimoto Products. Contact us for a lead time.
