Reduce the restriction and add more volume to the flow of charged air in your 2016–2018 Ford Focus RS with the Mishimoto Performance Intercooler Piping kit. We have combined the power of our hot-side and cold-side kits to give you the best airways to and from the intercooler in your Focus RS.

Our cold-side pipe is a single section of durable 5-ply silicone, eliminating the need for additional couplers. The improved design is flexible enough to make installation a breeze, and is reinforced with steel wire to stand up to the same abuse as its aluminium counterpart. We have also increased the inner diameter of the cold-side pipe, equating to a 31% increase in internal volume and a 46% increase in flow over the stock piping. Our cold-side piping is available in black and its full potential is unlocked when combined with our hot-side kit.

Since the hot-side has more distance to travel, we incorporated a specially designed aluminium mid-section and united it with a pair of dependable silicone couplers, all to make sure your Mk.III RS keeps every precious PSI of boost contained in the system. On top of increasing the diameter to 2.5 inches, our hot-side piping is designed specifically to direct airflow to the front PTU cooler that would be blocked by a traditional piping design. Our air diverting hot-side pipe includes wire-reinforced, 5-ply silicone couplers to ensure a secure connection to the turbo and intercooler.

The Mishimoto Performance Intercooler Piping Kit is available in black and includes all the hardware needed for a fortified and direct fitment to your 2016–2018 Ford Focus RS. As with all our products, this kit also includes the Mishimoto Lifetime Warranty

• Direct fit for the 2015+ Ford Focus RS
• Silicone couplers absorb the stresses of excessive engine movement
• Improves heat and pressure tolerance
• 46% and 45% less pressure drop than stock cold–side and hot–side pipe, respectively
• 31% and 40% increase in internal volume compared to stock cold–side and hot–side pipe, respectively
• Both Mishimoto intercooler pipes and Mishimoto intercooler provide 35% less pressure drop than stock setup
• Fits both stock and Mishimoto Focus RS intercooler
• Designed to not block off cooling to the PTU
• Mishimoto Lifetime Warranty

Installation Torque Specs 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

Silicone Couplers 6

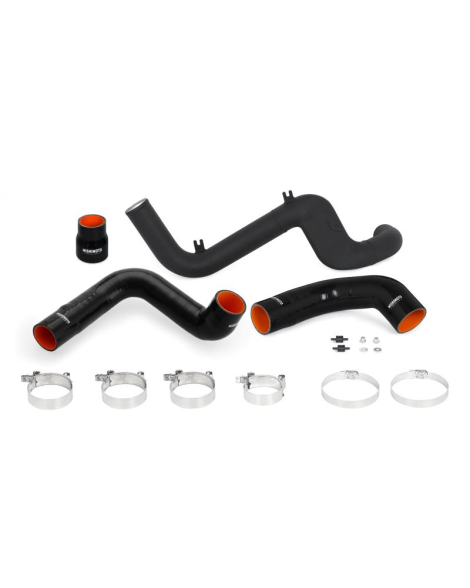

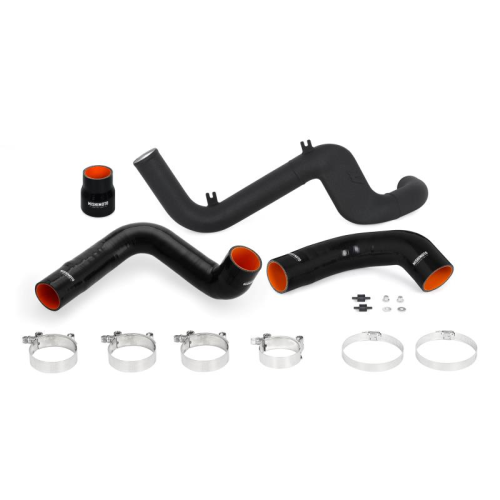

Purchase Includes (1) Hot-side Intercooler Pipe

(2) Silicone Couplers

(1) Wire-reinforced Silicone Hose

(6) T-bolt clamps

Mishimoto Lifetime Warranty

Note For optimal performance, the customer should retune the vehicle's ECU after installing the Mishimoto cold-side intercooler pipe. Power gains will vary depending on the type of ECU tune that is applied to the vehicle, and other supporting modifications that are installed.

Constant Tension T-Bolt Clamps Specs (4) 76.2mm T-Bolt Clamps

Cold-Side Intercooler Pipe Specs 63.5 mm-69 mm

Hot-Side Intercooler Pipe Specs 63.5 mm

Engine Codes 2.3L Ecoboost GTDi I4

Chassis Codes MKIII

Fits 2015+ Ford Focus RS

Coating Powder Coated

Make Ford
