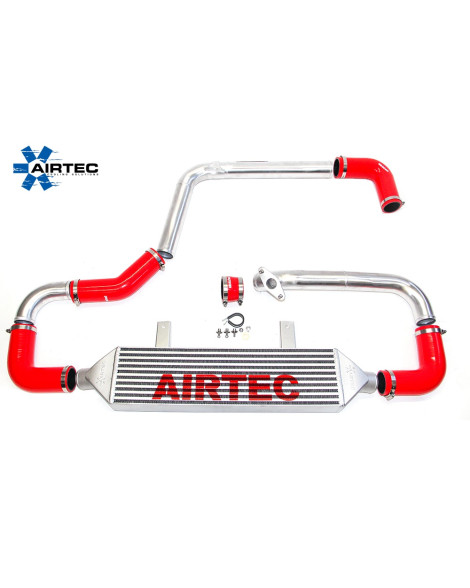

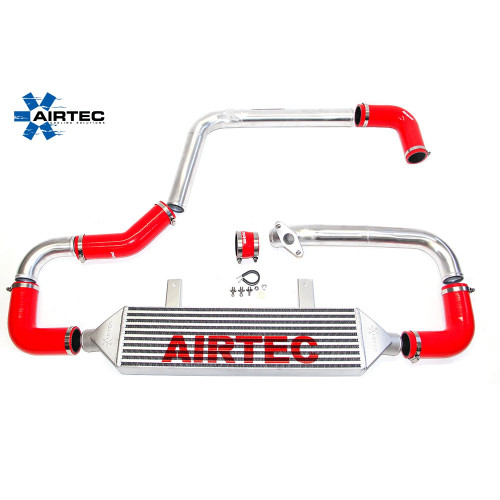

AIRTEC STAGE 1 FRONT MOUNT INTERCOOLER UPGRADE FOR MK1 MAZDA 3 MPS

AIRTEC huge front mount intercooler upgrade for the Mazda MPS proven to be a great upgrade for any remapped cars

70mm thick core and full 60mm boost pipe kit including high quality silicone hoses

No cutting of the bumper needed

Registered Design Right number: 6023247

AIRTEC part no: ATINTMAZ01

TECHNICAL DATA

AIRTEC huge front mount intercooler for the Mazda 3 MPS Mk1.

A much needed upgrade for your re-mapped Mazda MPS.

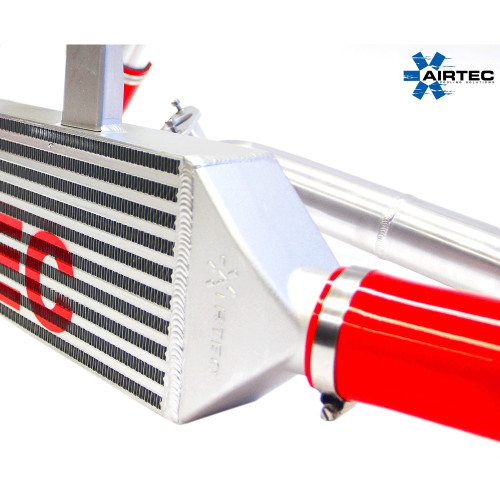

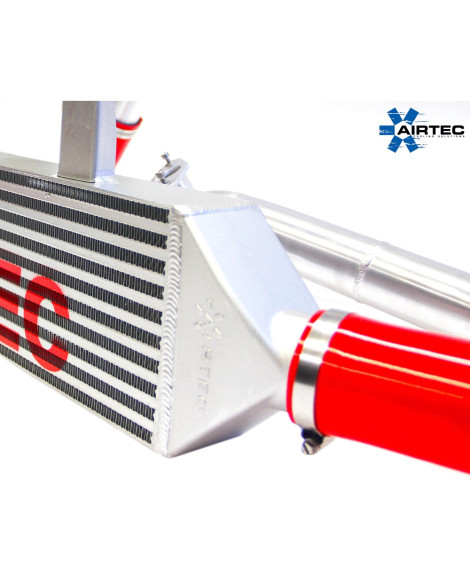

70mm core with flowed cast end tanks

High quality silicone hoses supplied with stainless jubilee clips

Retains original crash bar and fog lights

No cutting to bumper needed

Fitting instructions supplied along with all required fittings

Proven power increase

Available in pro series black or natural silver

AIRTEC 3 year unlimited mileage waranty

Fitting takes approximately 2-3 hours

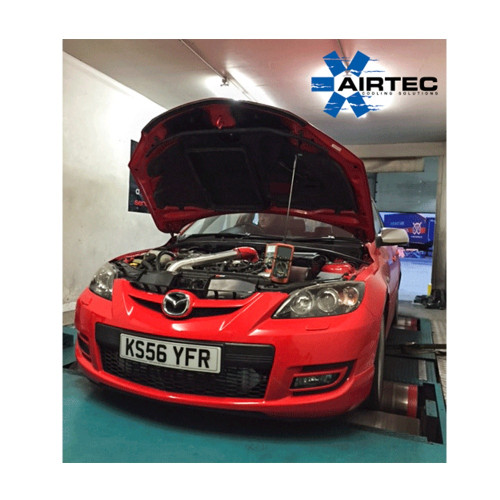

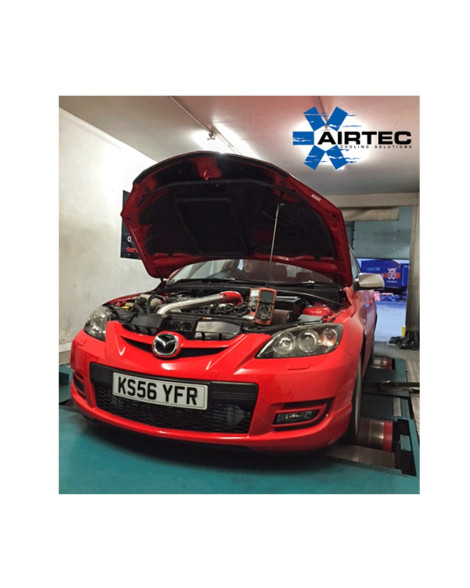

Test results taken on the AIRTEC demo car

Standard top mount intercooler:

Run 1

In – 160.5 degrees

Out – 70.7 degrees

Run 2

In – 160.6 degrees

Out – 70.4 degrees

Run 3

In – 162.1 degrees

Out – 73.9 degrees

AIRTEC Stage 3 intercooler

Run 1

In – 123.7 degrees

Out – 23.8 degrees

Run 2

In – 119.2 degrees

Out – 22.6 degrees

Run 3

In – 120.1 degrees

Out – 22.8 degrees

Approximate Dimensions:

Width – 740mm (not including pipes)

Height – 170mm

Depth – 70mm

NOW AVAILABLE IN PRO-SERIES BLACK ONLY!

Registered Design Right number: 6023247

AIRTEC part number: ATINTMAZ01

VIP Motorsport is an official UK dealer of Airtec Motorsport products. All Airtec intercoolers are built to order and have a rough lead time of up to two working weeks. Some Silicone colours are special order & have a lead time of 2-4 working weeks. Image not accurate.
