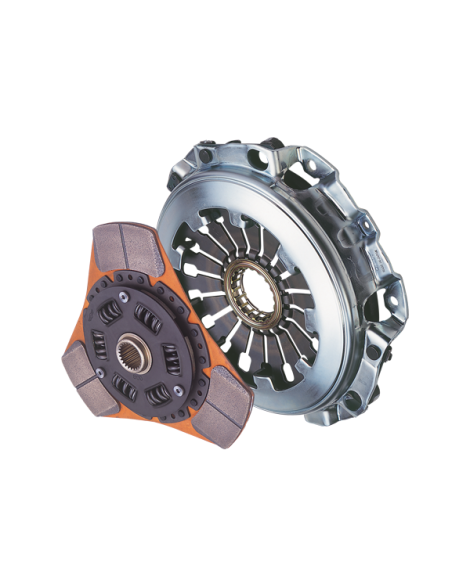

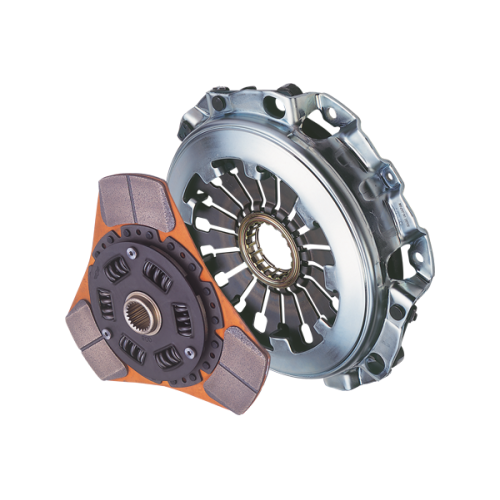

EXEDY Stage 2 Sports

EXEDY Stage 2 Sports clutch kits are designed to handle the abuse of high power modified engines whist retaining adequate driveability. The cerametallic friction material can handle much more abuse than stock type disc assemblies without slipping or fading. All EXEDY Stage 2 cerametallic clutch discs have sprung center dampers to reduce the impact and shock loads transmitted through the drivetrain.

Main Benefits

A reduction of 10% inertia over the original equipment part.

Up to a 40% increase in torque capacity over standard.

Approximately 40% higher clamp load than the standard clutch.

Suitable For

Road

Track Day

Circuit Racing

Time Attack

Drifting

Drag Racing

Rally

Clutch Cover

Single Series clutch covers are designed to achieve a clamping load that is approximately 40% higher than the genuine part enabling a higher torque capacity. Ductile material is used for all pressure plates and high burst strength can be achieved in all temperature ranges.

Note: Single Series Clutch Kits with HD in the middle of a kit reference denote that the cover has a higher clamp load. e.g. Mitsubishi EVO Organic kit: MK04HD601

Clutch Disc

Manufactured using a unique metallic configuration and low density metallic material, T5001 Carbonrich, S-Type cerametallic discs are designed to be light weight; inertia is 10% lower than the genuine part. Stage 2 Sports discs have excellent heat dissipation characteristics.

Note: There are two variations of S-Type kits for some models. For example, the kit FK01T601 has a 3 paddle disc whereas the kit FK01T1601 has a 4 paddle disc. In comparison the 4 paddle disc provides a reduced pedal effort, whereas the lighter 3 paddle disc allows for a quicker shifting response.

PART NUMBERFK04T911

SERIES       Single Series

CLUTCH TYPE    Stage 2 Sports

CLAMP LOAD (N)         10600

FRICTION FACING       Cerametallic

DISC DIAMETER (mm)          230

SPRUNG CENTRE        Yes

MAX TORQUE @ FLYWHEEL         380 lb.ft./510 Nm

MAX TORQUE @ WHEELS   310 lb.ft./410 Nm

NUMBER OF PADDLES         3

PUSH / PULL BEARING         Push

SUPPLEMENTARY ARTICLE INFO With bearing(s)

*if the vehicle is unmodified, a performance clutch is not recommended

Vehicle Fitment-

MAKE         MODEL      MODEL CODE    LITRE         YEAR

SUBARU    FORESTER SG5   2.0    2002-

SUBARU    IMPREZA   GDA(F/G): Saloon WRX        2.0    2005-2007

SUBARU    IMPREZA   GGA(F/G): Wagon WRX        2.0    2005-2007

SUBARU    IMPREZA   GGG: Wagon WRX      2.5    2005-2007

SUBARU    IMPREZA   GH8: Hatch WRX         2.0    2008-

SUBARU    IMPREZA   GHE: Hatch WRX         2.5    2007-

SUBARU    IMPREZA   GVE: Saloon WRX        2.5    2011-

SUBARU    LEGACY     BL5: Saloon        2.5    2003-

SUBARU    LEGACY     BM9: Saloon      2.0    2009-

SUBARU    LEGACY     BM9: Saloon      2.5    2009-

SUBARU    LEGACY     BP5: Wagon       2.0    2005-

SUBARU    LEGACY     BP5: Wagon       2.5    2003-

SUBARU    LEGACY     BR9: Estate         2.0    2009-

SUBARU    LEGACY     BR9: Estate         2.5    2009-
