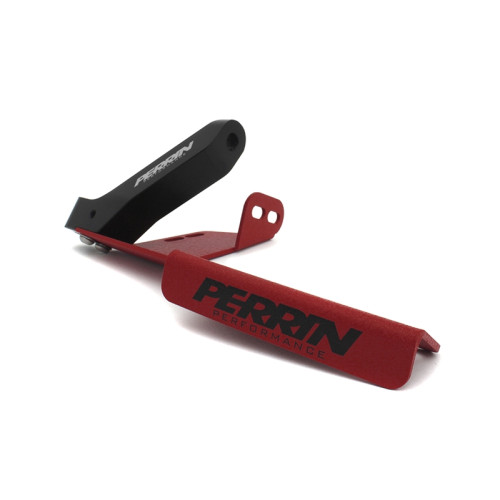

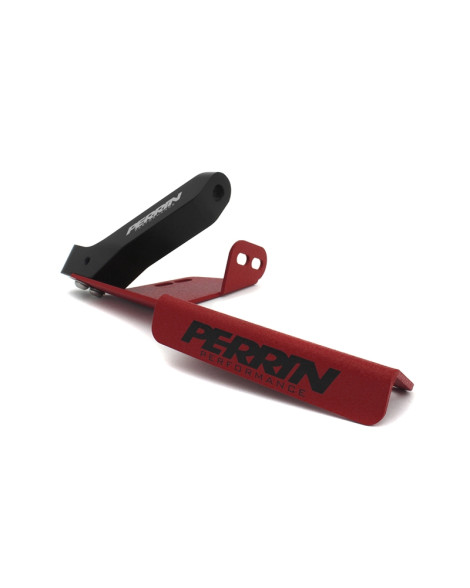

PERRIN PERFORMANCE MASTER CYLINDER SUPPORT FOR 2008-2014 WRX & STI

The PERRIN Master Cylinder Brace prevents unwanted movement of the master cylinder, allowing for increased brake pedal stiffness and response.

REDUCE FLEX

Your brake pedal is connected to the thin sheet metal firewall which flexes as you apply the brakes. The firewall is not stiff enough to deal with the constant and repeated forces while applying the brakes. The PERRIN Master Cylinder Brace creates a bridge between the firewall, master cylinder, and shock tower, significantly reducing flex in the firewall while braking.

STIFFEN BRAKE PEDAL FEEL

The PERRIN Master Cylinder Brace significantly reduces flex at the firewall, so you get solid brake pedal feel with every application of the brakes. This is very noticeable while under heavy braking and even slowing for a stop sign. The difference can immediately be felt after installation.

DESIGN

The PERRIN Master Cylinder Brace is design to attach strategically to multiple points on the shock tower. This helps reduce flex in the brake master cylider by creating a solid connection between it and the chassis. To further aid in stiffening or tightening up this connection, included is an adjustable screw that allows tension to be preloaded on the master cylinder.

CONSTRUCTION

The PERRIN Master Cylinder Brace for 2008-2014 WRX / STI is constructed of CNC Machined 6061 aluminum, and CNC formed Steel. This combination of different materials are used to add extra support compared to other systems. Making this from two CNC parts instead of a series of welded steel pieces, keeps the part extremely stiff as well as very light.

FINISH

The aluminum portion of the PERRIN Master Cylinder Brace for 2008-2014 WRX / STI is anodized black with a bold PERRIN logo laser engraved into the upper surface. The steel section is wrinkled powder coated in your choice of red or black to match your other PERRIN parts. Perfectly combines an aesthetic improvement to your engine bay as well as braking feel!

PART NUMBERS

PSP-BRK-401BK = 2008-2014 STI & 2005-2009 Legacy, black

PSP-BRK-401RD = 2008-2014 STI & 2005-2009 Legacy, red

PSP-BRK-402BK = 2008-2014 WRX, black

PSP-BRK-402RD = 2008-2014 WRX, red

IN THE BOX

PSP-BRK-401

(1) PERRIN Master Cylinder Brace

(1) PERRIN Master Cylinder Bracket

(1) M12 Socket set cup

(1) M12 Jam nut

(6) M6 Fender washer

(5) M6 Button head socket cap screw

(1) M6 Socket set screw

(2) M6 Stainless steel nut

(1) M8 nut

(1) M8 Fender washer

(2) M8 Flat washer

(1) M8 Socket cap screw

(4) M6 Flat washer

(3) M6 Button head socket cap screw

(4) Zip ties

(1) M6 Short arm hex key

(1) M4 Short arm hex key

(1) Bracket for cable tie-down

Warranty & Instruction

PSP-BRK-402

(1) PERRIN Master Cylinder Brace

(1) PERRIN Master Cylinder Bracket

(1) M12 Socket set cap

(1) M12 Jam nut

(6) M6 Fender washer

(5) M6 Button head socket cap screw

(1) M6 Socket set screw

(2) M6 Stainless steel nut

(1) M8 nut

(1) M8 Fender washer

(2) M8 Flat washer

(1) M8 Socket cap screw

(4) M6 Flat washer

(3) M6 Button head socket cap screw

(4) Zip ties

(1) M6 Short arm hex key

(1) M4 Short arm hex key

(1) Bracket for cable tie-down

Warranty & Instructions

COMPATIBILITY

PSP-BRK-401

2008-2014 STI - Yes

2008-2014 WRX - No

PSP-BRK-402

2008-2014 WRX - Yes

2008-2014 STI - No

Right Hand Drive – No
