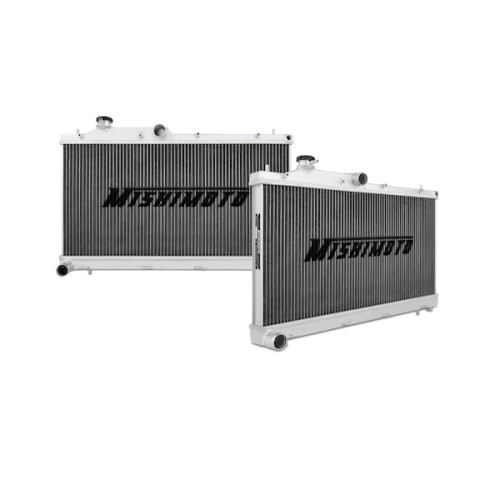

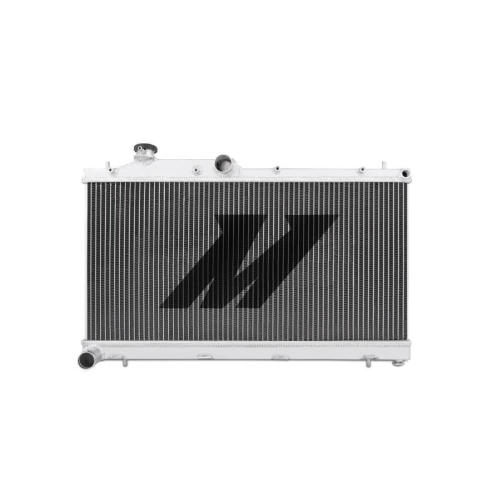

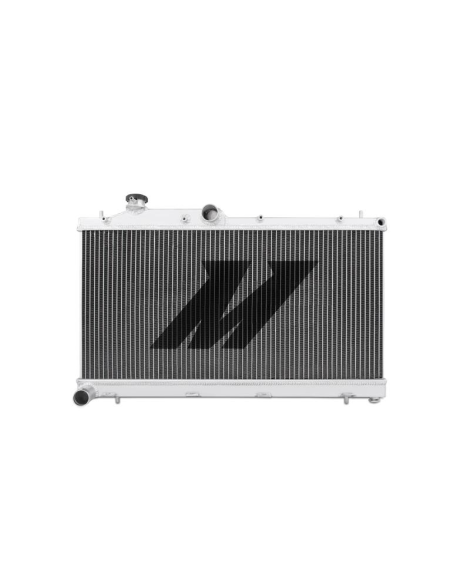

MISHIMOTO X-LINE PERFORMANCE ALUMINIUM RADIATOR, FITS SUBARU WRX/STI 2008+

Model: MMRAD-STI-08X

PRODUCT FEATURES

Direct fit for the 2008-2021 Subaru WRX/STI

Premium radiator has 3-row (2" thick) core for improved strength and reliability.

16% thinner-than-stock tubes allow for more surface contact, increasing cooling efficiency.

Greater density of rows for higher cooling capacity.

More contact points for additional heat transfer.

3-row design creates more air turbulence, maximizing cooling efficiency

Includes magnetic drain plug

Includes a high-pressure 1.3 bar

Mishimoto radiator cap

Mishimoto Lifetime Warranty

The Mishimoto X-Line performance aluminium radiator for the 2008–2021 Subaru WRX and 2008–2021 STI is designed with a larger 3-row core to maximize cooling efficiency, boost engine functions, and most importantly protect your car from overheating. It is the ideal upgrade to the stock Subaru radiator whether you drive your vehicle daily or take it for track runs. The Mishimoto aluminium WRX and STI radiator features a lightweight triple core, 100% brazed aluminium, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminium radiator is a direct stock fit making installation effortless with no cutting or modification required. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and, like all our aluminium radiators, this product comes with the unparalleled Mishimoto Lifetime Warranty.

PURCHASE INCLUDES

Mishimoto Radiator

Mishimoto Radiator Cap

Overflow Nipples - 2

Magnetic Drain Plug

Mishimoto Lifetime Warranty

NOTES
Note This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.CautionThe provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur.It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information please contact us. Use small fitting for: 2008–2009 Subaru WRX 2008–2019 Subaru STIUse large fitting for: 2010–2014 Subaru WRX 2005–2009 Subaru Legacy GT 2005–2009 Subaru Outback XT 2009–2013 Subaru Forester XT

VEHICLE SPECS

Engine Codes EJ255, EJ257

Fits

08–21 STI

08–14 WRX

11 STI Limited

11 Forester XT Touring

10+ WRX Limited

10+ WRX Premium

10+ Forester XT Premium

10 STI Special Edition

09–10 Impreza 2.5 GT

09–10 Forester XT Limited

09 Forester XT

08 Outback 2.5 XT

08 Legacy GT

07–09 Outback XT Limited

07–09 Legacy GT Limited

06–09 Legacy GT Spec.B

06 Outback XT

05–06 Legacy

05 Outback

PRODUCT SPECS

MATERIAL Aluminum

OVERALL HEIGHT 28

DPI 13091/13093

DRAIN PLUG LENGTH 0.047

DRAIN PLUG THREAD SIZE (M12) x 1.5

OVERALL LENGTH 21.8

FILL NECK THICKNESS 0.12"

TANK WALL THICKNESS 0.08

OUTLET 1.54

ROWS 3

INLET 1.54

DUAL PASS False

OVERALL WIDTH 2.5

CORE LENGTH 13.39

CORE HEIGHT 27.09

CORE THICKNESS 2

FILL NECK 1.22

OVERALL LENGTH (IN) 21.80

OVERALL HEIGHT (IN) 28.00

OVERALL WIDTH (IN) 2.50

ROWS 3
