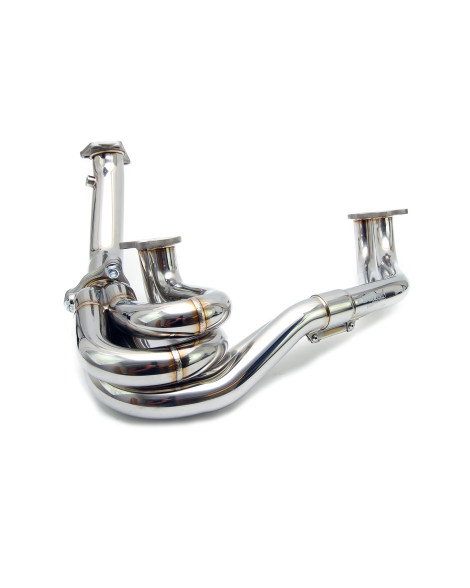

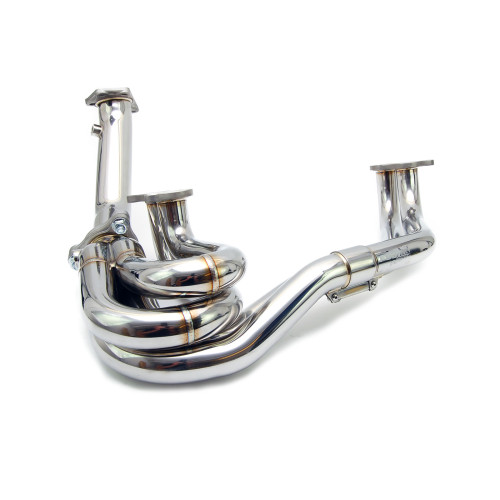

Fuji Racing Stainless Steel Tubular Exhaust Manifold Un-Equal Length FREX102 for Subaru WRX/STI Single Scroll

MANUFACTURED LIKE NO OTHER.

Each of the Fuji Racing Exhaust Manufactured to perfection. Each exhaust manifold is welded by a computer assisted machine to give 100% weld accuracy.

Manufactured from SUS304 stainless steel. Tubing is 1.5 to 2mm thick and 10-12mm thick exhaust flanges depending on the application.

Due to the SUS304 construction, the exhaust manifolds are also significantly lighter than the OEM counterpart.

Exhaust collectors are manufactured using the ‘lost wax’ casting process this means each collector is as smooth as possible to increase exhaust gas flow.

Slip jointed to allow for expansion when hot to reduce the risk of stress cracking.

TECHNICAL INFOMATION.

FREX102 – Un-Equal Length Single Scroll Exhaust Headers

Manufactured from SUS304 Stainless Steel

12mm Thick Flanges

38mm Primary tubing inner diameter

40mm secondary to up pipe tubing inner diameter

56mm inner diameter up pipe with 45mm inner venturi to help the turbo spool

Un-Equal length exhaust primary tubing which keeps the iconic boxer ‘rumble’ sound

Tubing is 2mm thick

3 Bolt Lower Uppipe flange to increase the flange clamping force

Lightweight design 9.5KG. OEM weighs 13.5KG

Application Models. Subaru Single Scroll Models

MODEL APPLICATION:

Suitable for the following models:

Subaru Single Scroll Turbo Models

If you are unsure of fitment or application then please contact us with your vehicles chassis number.

WHAT'S IN THE KIT:

1 x Exhaust Manifold

1 x Turbo Up Pipe

VIP Motorsport is a UK & European Dealer of Fuji Racing.
