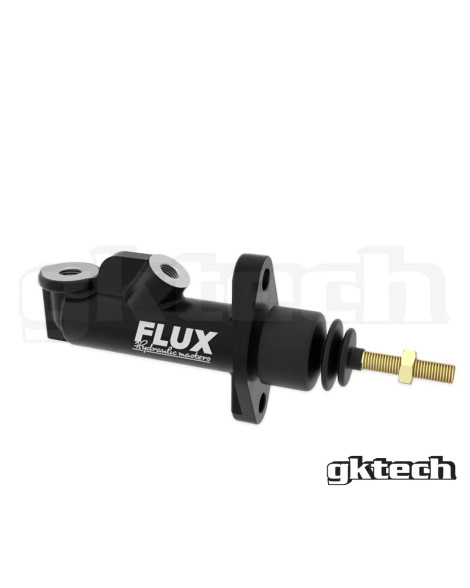

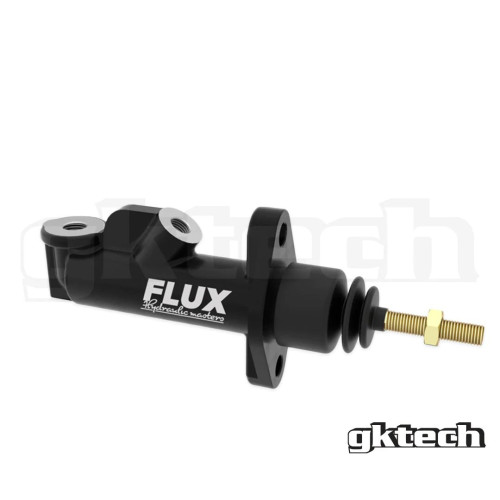

GKTECH FLUX IN-LINE 3/4" MASTER CYLINDER

SKU: FL-RR-34

Looking for a dependable and high-quality master cylinder for your motorsport or custom application? Check out the FLUX Master Cylinders range! The ultimate solution for braking performance

Crafted with durability in mind, FLUX master cylinders feature a black E-coating and high-pressure die-cast aluminum design, along with superior quality EPDM rubber seals.

You can trust in the safety and performance, as they're tested to SAE J1153_201202 standards. They're compatible with standard DOT 3, DOT 4, and DOT 5.1 Glycol ether based brake fluids, plus, they can be easily rebuilt with readily available rebuild kits!

- Engineered for performance

- Lifetime warranty

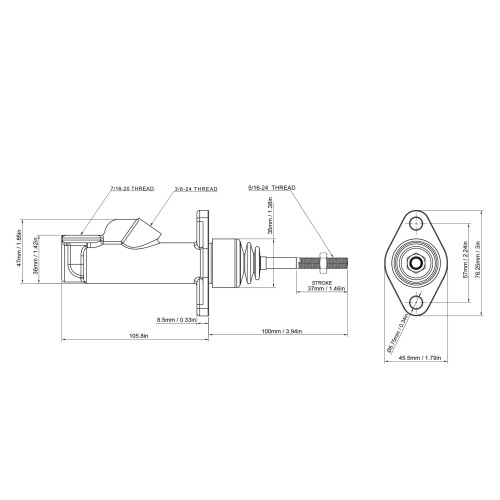

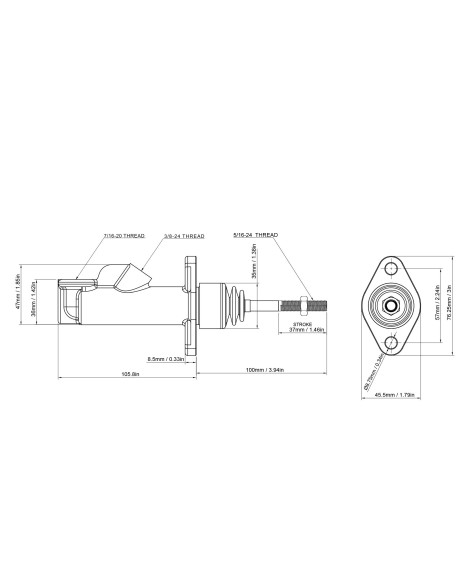

BORE SIZE 0.75 (3/4 in)

STROKE 1.25

ARTEA (in²) 0.44

VOLUME (cu in) 0.55

TYPE Single outlet

OUTLETS 1

MATERIAL Aluminium

FINISH E-coating Black

RES TYPE Inline

INLET 7/16-20

OUTLET 3/8-24

ROD THREAD 5/16-24

BOLT SPACING 2-14"

FAQs

How do I know which size master cylinder to choose?

Typically the 5/8 master cylinder is proven on an S/R/Z chassis running the single or two pot brakes, the lever feel with this master is balanced, having a longer more typical throw to gauge feel while still efficiently locking the rear brakes. The 3/4 master cylinder is larger, so when used in that same setup the lever feel will be more direct, firmer, and require less throw to lock the rear brakes.

However, if you are running larger brakes/wheel tyre setup then the standard two pot and 235 width tyre and do require a bit more bite, we would suggest this master cylinder.

Do FLUX Master Cylinders have warranty?

Yes! All FLUX master cylinders have lifetime warranty.

Are FLUX Master Cylinders rebuildable?

Yes! Rebuild kits are available to ensure low cost and easy maintenance on all master cylinders.

Do you offer other masters?

We offer a wide range of FLUX masters to suit 3/4", 5/8", & 7/8" applications, available in both integral and inline reservoir variants.

VIP Motorsport is an official UK & European stockist of GKTech products. Our stock is directly linked with GK Tech AU, if the item is out of stock with us it could take up to 2 working weeks to be received.
