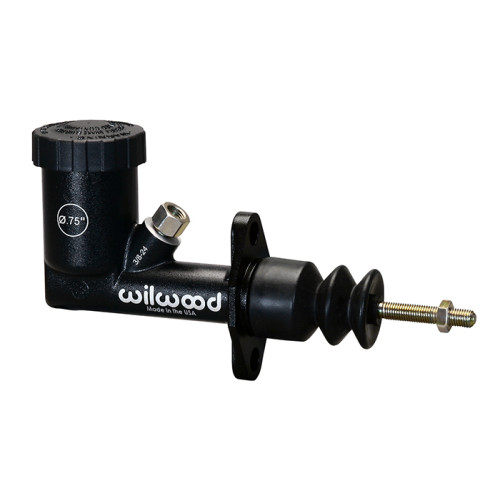

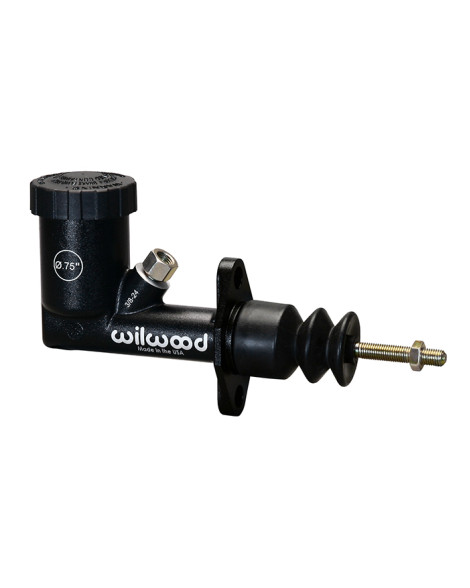

Wilwood Stand-Alone 3/4" Internal Reservoir Master Cylinder 260-15098
- Brands Wilwood
- Product Code: Wilwood 260-15098
- Availability: 10 - 15 Days
-
£77.00
- Ex Tax: £64.17
Finance available on all orders above £300.
Wilwood Stand-Alone 3/4" Internal
Reservoir Master Cylinder 260-15098
M/C,GS,WILWOOD,.75 DIA,INTEGRAL
GS Compact Integral Master Cylinder
GS Compact Integral Master Cylinder - Product
Summary
Wilwood’s new GS Compact Integral Master Cylinders are an
all new rebuildable design featuring a high pressure die cast aluminum body
with a protective e-coat finish. Integral cylinders feature a positive seal
internal bellows cap. Internally, a refined return spring and piston assembly
assures positive pressure control along with a quick and complete release.
Master Cylinder
Dimensions
Bore Size 3/4"
Area (in²) 0.440
Stroke 1.25
Volume (cu in) 0.55
Master Cylinder
Description
Type Single Outlet
Outlets 1
Material Aluminium
Finish Black E-Coat
Reservoir
Res Type Integral
Res Size (oz) 1.5
Res Size(cu in) 2.7
UPC 889545074390

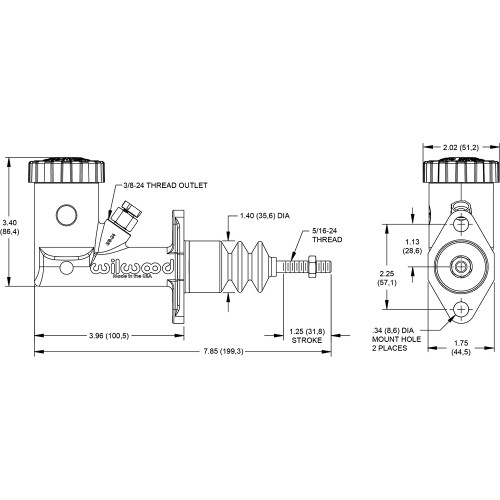

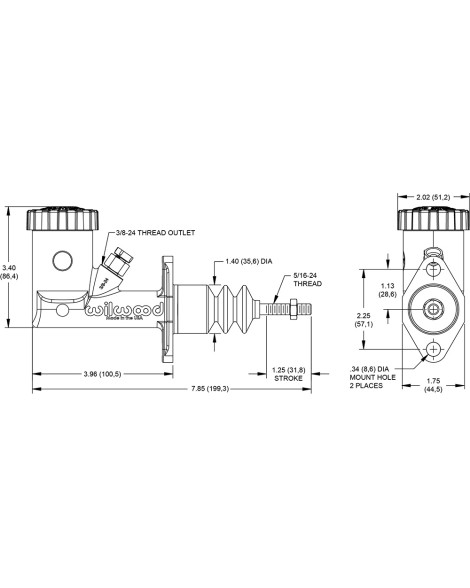

Additional Dimensions
Overall Lengh(in) 7.99”
Flange to End Length
(in) 3.96"
Outlet Size 1 (in) 3/8-24
Outlet Fit 1
(in) 3/8-24 IF Female
VIP Motorsport is a UK
Stockist of Wilwood products.
