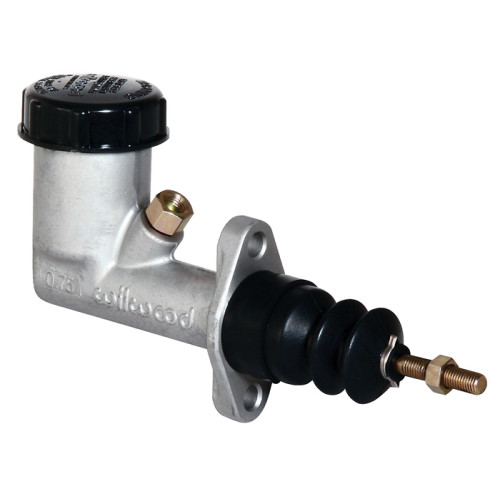

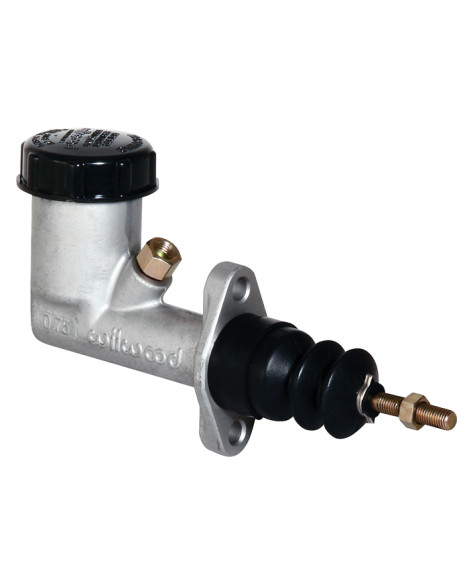

Wilwood Stand-Alone 5/8" Internal Reservoir Master Cylinder 260-2636

M/C,GIRLING STYLE,5/8in.,ASSEMBLY

Integral Reservoir Compact Master Cylinder - Product Summary

This popular lightweight, compact design is used for clutch and small master cylinder requirements and is well known for its dependability. It incorporates an improved plastic screw-on filler cap which protects the fluid in the 1.4 ounce reservoir, and is available in three bore sizes.

Master Cylinder Dimensions

Bore Size 5/8"

Area (in²) 0.310

Stroke 1.40

Volume (cu in) 0.43

Master Cylinder Description

Type Single Outlet

Outlets 1

Material Aluminium

Finish Bare

Reservoir

Res Type Integral

Res Size (oz) 1.4

Res Size(cu in) 2.57

UPC 889545067415

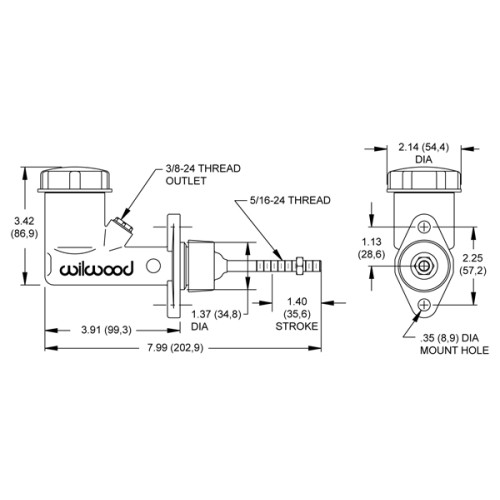

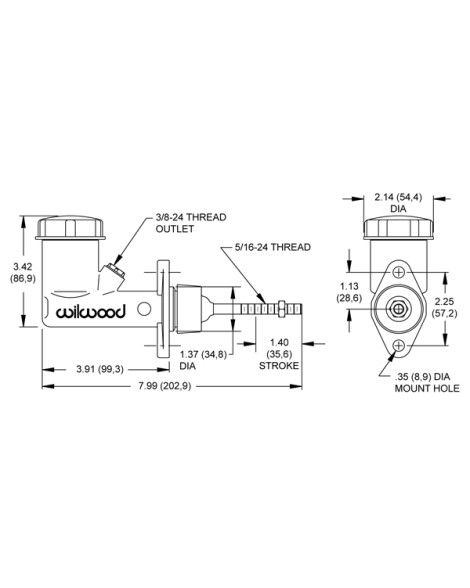

Additional Dimensions

Flange to End Length (in) 3.91"

Outlet Size 1 (in) 3/8-24

Outlet Fit 1 (in) 3/8-24 IF Female
