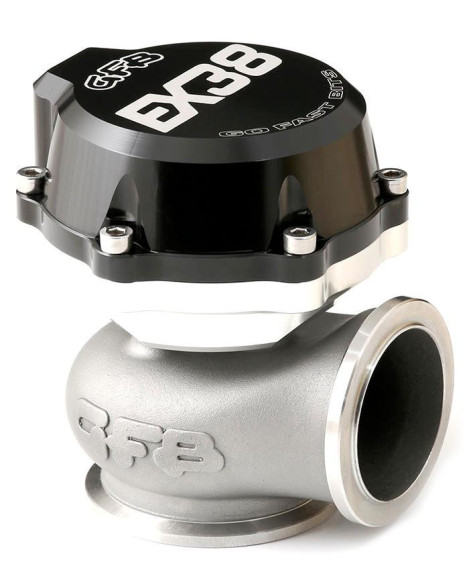

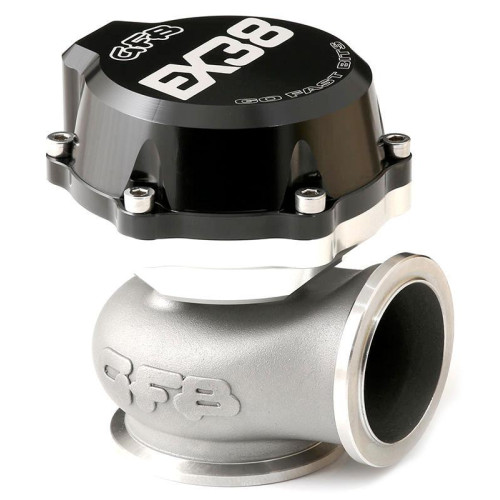

Go Fast Bits GFB 7003 EX38 - 38MM V-BAND STYLE EXTERNAL WASTEGATE

The EX38 features a 38mm valve and comes standard with a 10psi spring. Additional springs are also available - by using various combinations of 5psi, 7psi, and 10psi springs, you can achieve base boost pressures of 5, 7, 10, 12, 15, 17, and 22psi*.

Standing only 93mm tall, the EX38 is shorter than its nearest rival. The inlet flange I.D. features a tapered entry to assist a smooth transition from the exhaust pipe into the valve, and the seat I.D. is larger than other wastegates of the same size for extra flow.

The EX38 is directly compatible with TiAl MV-S flanges, meaning you can use the EX38 on turbo kits designed for TiAl wastegates

When it comes to external wastegates, some things you want big, others you want small – like big flow, small size, right? GFB offers a range that are among the most compact external wastegates in their class, being shorter in height than their closest rivals without sacrificing flow.

All GFB wastegates feature an investment cast body made from 253MA chromium-nickel stainless steel, a CNC machined billet stainless valve, and all stainless steel weld-on fittings and hardware, whilst the diaphragm is nomex-reinforced silicone. All this adds up to a wastegate built to handle extreme conditions with reliability you can trust!

Most compact wastegate range on the market!

Body, valve, seat and all mounting hardware is CNC machined from high-temp stainless steel

Actuator housing CNC machined from billet 6061 aluminium

Nomex-reinforced silicone diaphragm

Internal shroud protects valve stem from excessive heat and prevents carbon-related sticking

V-band clamp mounting system

Made in Australia under ISO 9001

NOTE: *Spring pressure rating is a guide only. Actual boost pressure achieved may be different depending on the turbo, exhaust manifold and engine combination.

Most Compact Wastegate Range on the Market!

GFB offers a range of high-flowing external wastegates that are the most compact in their class for easy installation in tight locations, whilst offering the performance and reliability that are the hallmarks of all GFB products.

The EX range of wastegates feature an investment cast body made from 253MA chromium-nickel stainless steel, a one-piece stainless steel valve, and a nomex reinforced diaphragm to cope with the extreme conditions and harsh environment of high-boost and exhaust temperatures.

GFB Wastegate Features:

MOST COMPACT WASTEGATE RANGE ON THE MARKET!

BODY, VALVE, SEAT AND ALL MOUNTING HARDWARE IS CNC MACHINED FROM HIGH-TEMP STAINLESS STEEL

ACTUATOR HOUSING CNC MACHINED FROM BILLET 6061 ALUMINIUM

NOMEX-REINFORCED SILICONE DIAPHRAGM

INTERNAL SHROUD PROTECTS VALVE STEM FROM EXCESSIVE HEAT AND PREVENTS CARBON-RELATED STICKING

V-BAND CLAMP MOUNTING SYSTEM

MANUFACTURED IN AUSTRALIA IN ACCORDANCE WITH ISO 9001
