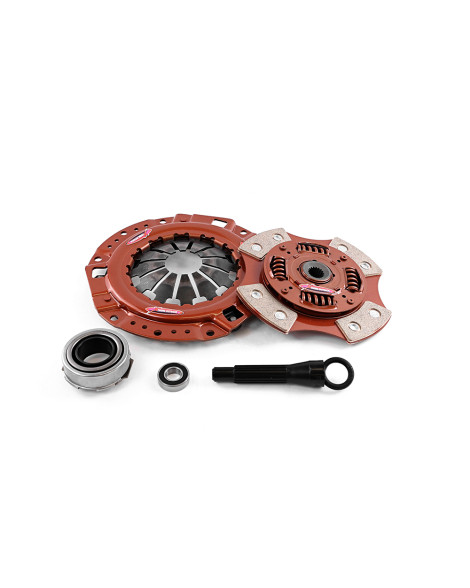

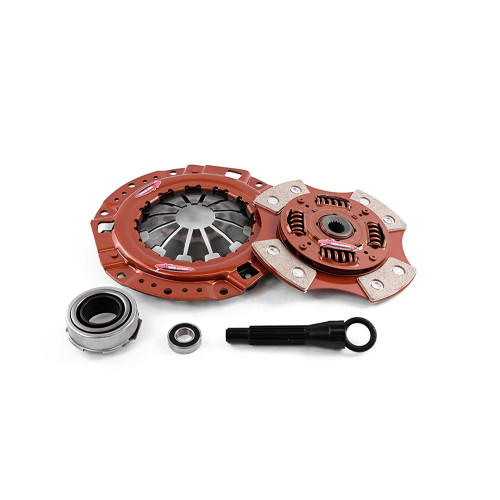

Xtreme Outback Heavy Duty Sprung Ceramic Clutch Kit for Suzuki Jimny 1.5L 2018+ KSZ19020-1B

Confirmed Applications

SUZUKI JIMNY 2018.07- 1.5 K15B 1462 Petrol 75 kW 102 BHP (2018.07 -)

Specifications

Torque (Nm) Inc FOS 350

Torque (Ftlbs) Inc FOS 260

Flywheel Step -18.0mm

Clutch Disc Diameter (mm) 190

Clutch Disc Spline Count 18

Clutch Disc Spline Diameter (mm) 19.3

Recommended for Motorsport

Disc Type Sprung

Friction Material Ceramic

Clamping Force % Increase 35%

Spigot Bush / Bearing Included Yes

Aligning Tool Included Yes

Spline Grease Included Yes

Stage Stage 2

Weight [KG]: 4.3

Xtreme Outback - Heavy duty sprung ceramic kit /-1B

Recommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

Specifications:

Torque capacity 350Nm

Clamp load Increased over standard

Ceramic Friction Disc

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

Xtreme Outback

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

VIP Motorsport is a UK Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
