Pedders 2 Inch Lift Kit. Suzuki Jimny 2018 on 803285

Pedders 2 Inch Suspension Lift Kit. Suzuki Jimny

Improved looks and ground clearance.

Are you looking to raise your Jimny?

Then Pedders Suspension have the solution for you.

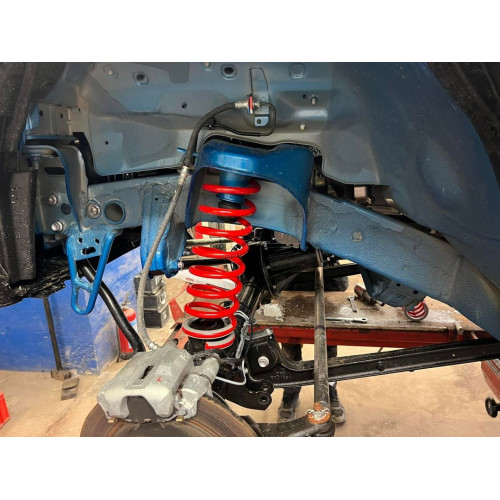

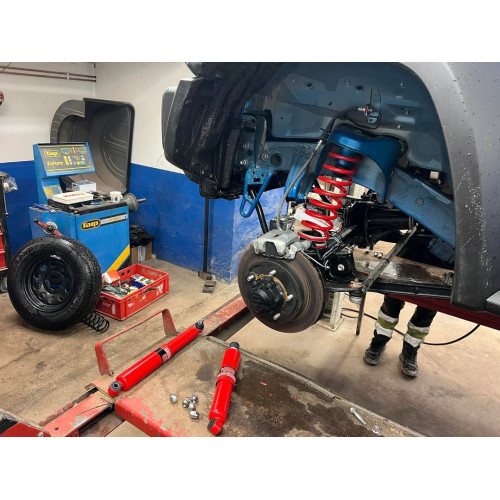

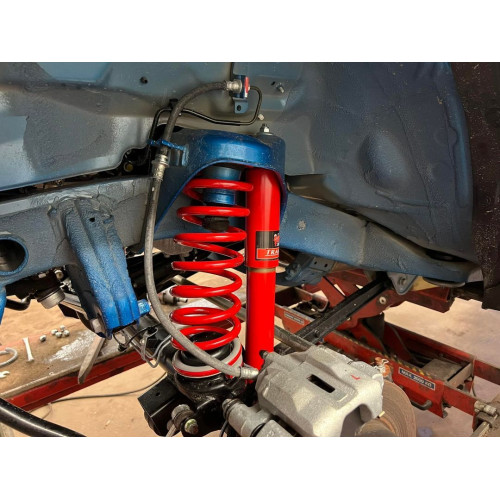

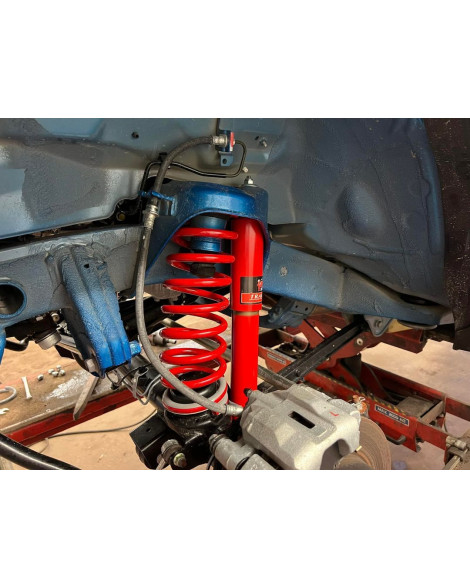

This kit features our excellent Pedders TrakRyder Foam Cell shocks, front & rear coil springs, and the necessary parts to deal brake hose and headlight switch changes.

This kit is our Premium Lift Kit, and is designed primarily to raise the vehicle and improve ground clearance.

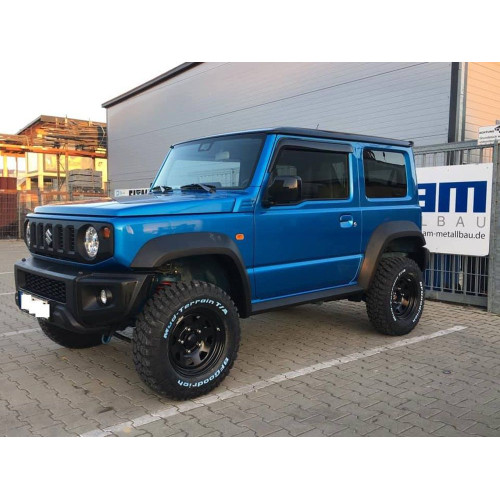

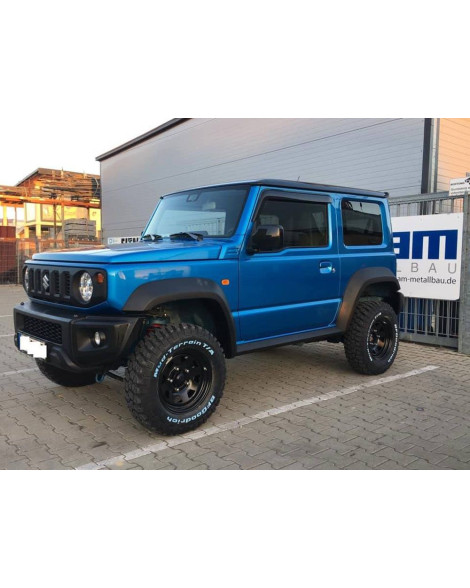

This kit will raise the vehicle by approx. 50mm allowing better ground clearance and improved looks. Articulation in off road conditions is achieved through the use of longer travel shocks. This kit can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle.

These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Included in the kit are longer brake hoses for the rear and the necessary parts to allow correct operation of the headlight levelling system. NOTE, it is NOT possible to simply extend the bracketry or similar on this vehicle if using longer shocks. Doing so will result in the headlight levelling switch breaking under full suspension compression. The parts included in our kit overcome this issue.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

2 Inch Lift Kit

Increased Off-Road Ground Clearance

Sintered Iron Piston Shocks with Large 35mm Bore

Premium Grade Steel Coils

All backed by our 2 year / 40,000km warranty

Vehicle Height Information

Front: 50mm higher than standard

Rear: 50mm higher than standard

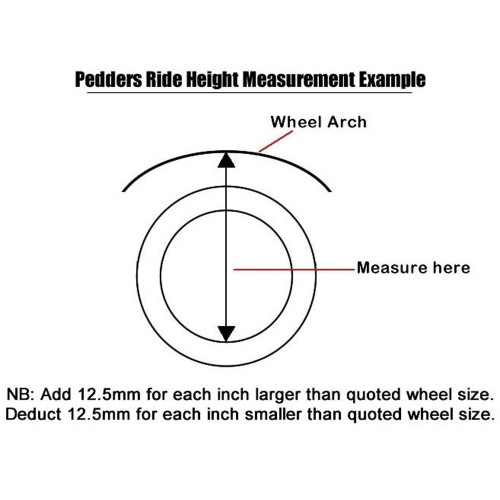

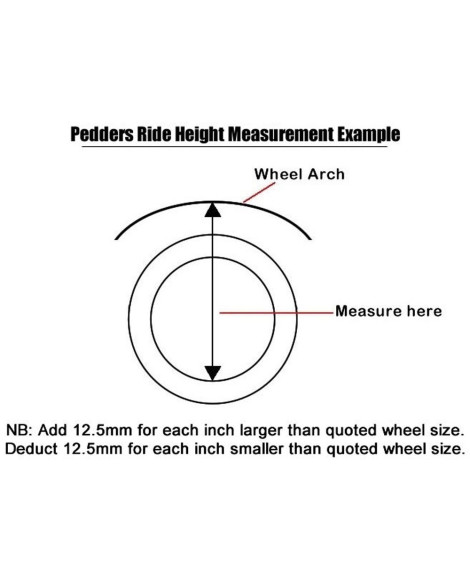

Notes: Heights should be measured as shown in the secondary picture.

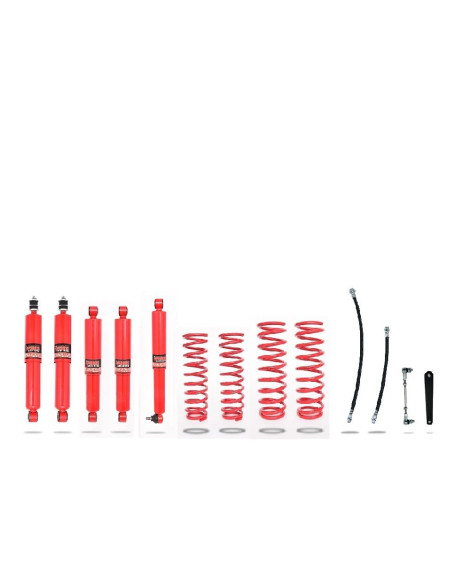

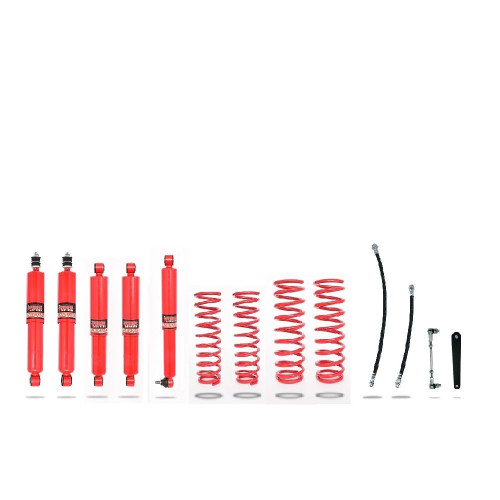

Contents of Kit 803285 (Pedders Part Numbers)

131098 x 2 - Pedders Trakryder Foam Cell Shocks

131099 x 2 - Pedders Trakryder Foam Cell Shocks

131020 x 1 Pedders Steering Damper

280150 x 2 - Pedders Heavy Duty Front Spring

280151L x 1 - Pedders Heavy Duty Rear Spring Left

280151R x 1 - Pedders Heavy Duty Rear Spring Right

5512 x 1 – Rear Brake Hose Kit

5066 x 1 – Headllight Levelling Switch Kit

Confirmed Applications

Suzuki Jimny 2018 on

VIP Motorsport is an Official Dealer of Pedders suspension in the UK. Image may not be accurate.
