KONIG WHEELS HEXAFORM

HEXAFORM AT A GLANCE...

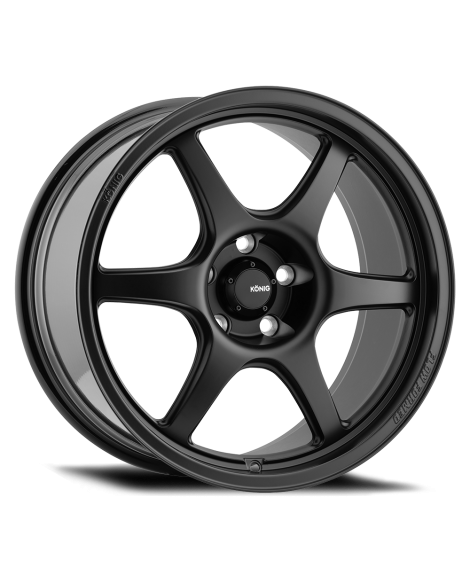

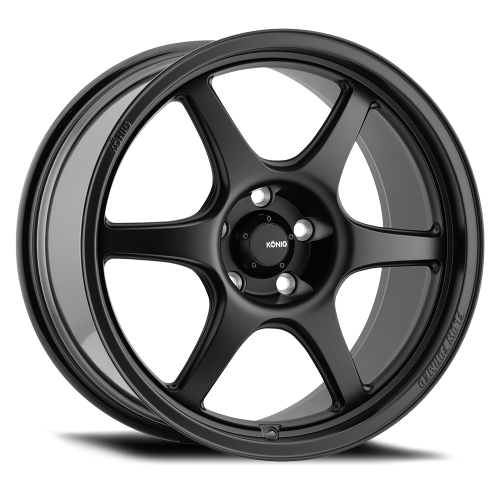

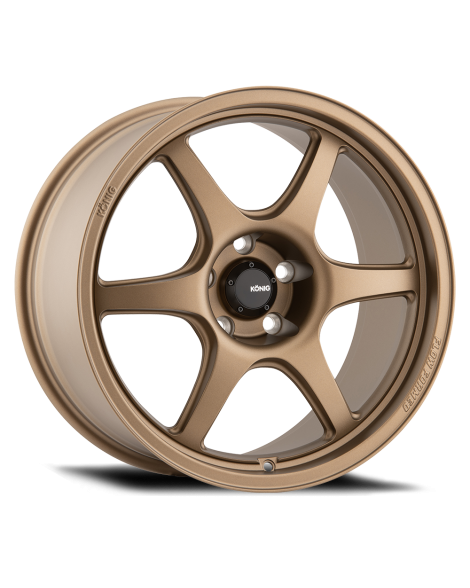

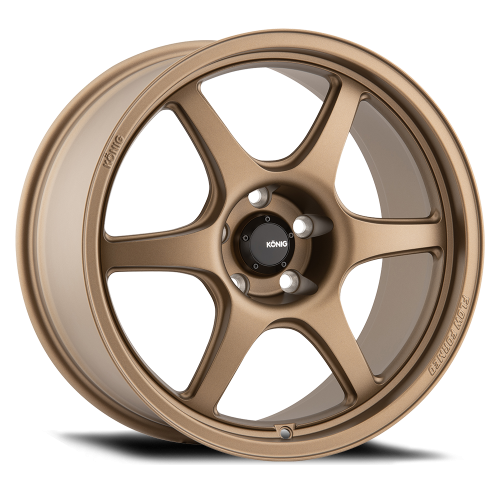

The Hexaform is a NEW 6-spoke design built with flow-forming technology. TWO spoke profiles are available (A & B). Shown is A profile. Available in a NEW Matte Bronze and Matte Black finish! We’ve integrated feedback from our motorsport teams, racers and drivers into both of our new designs this year. We’ve pushed the face out and allowed for as much brake caliper protrusion as well as overall brake diameter near the drop center. This provides excellent caliper clearance for big brake car and aftermarket big brake kits.

FEATURES:

4-Lug

5-Lug

Lightweight

Low Offsets

Flow Formed

Back Cut

WHAT IS FLOW FORMING?

Flow Forming Technology involves the application of pressure to the inner barrel of the wheel, while spinning & after it has been casted. This process shares similarities to that found in the forging process in which the aluminum molecules are compressed resulting in a lighter & stronger wheel with greater shock resistance & elongation properties.

The process of flow forming starts out with a precisely casted wheel that’s narrower than its final width.

The wheel is spun under heat while applying pressure to the inner wheel.

The end result has arrived to it’s desired width & is now stronger, lighter & shares properties of that of a forged wheel.

BACK CUT

During the manufacturing process, a casted wheel, which has been designed to have a separation between the center portion of the wheel and the spoke, is precisely machined with a special tool from the backside of the wheel. This allows that area behind the face of the wheel and spokes to have a specialized machining effect. Some of these effects include a smooth area, a machined area and even a recess in which a stripe can be painted into.

Please view the KONIG Size Chart here- https://konigwheels.com/wheels/flow-formed-wheels/hexaform/

** Weights are approximates and may vary. **

*** A Profile = Less concave, more caliper clearance. / B Profile = More concave, less caliper clearance (mostly used on rear). **

**** Sizes without a letter are A Profiles**

Hub rings will be suppled if you mention the make / model of your vehicle at the time of purchase.

VIP Motorsport is a UK & European dealer of KONIG Wheels. KONIG Wheels generally have a lead time of 3 weeks if out of stock with us, however we recommend you contact one of the VIP Team for a lead time.
