Corksport Mazdaspeed 3 Fender Mounted Auxiliary Fuel Cell

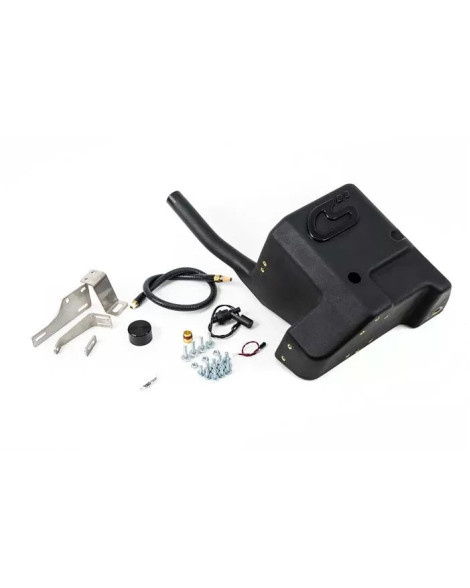

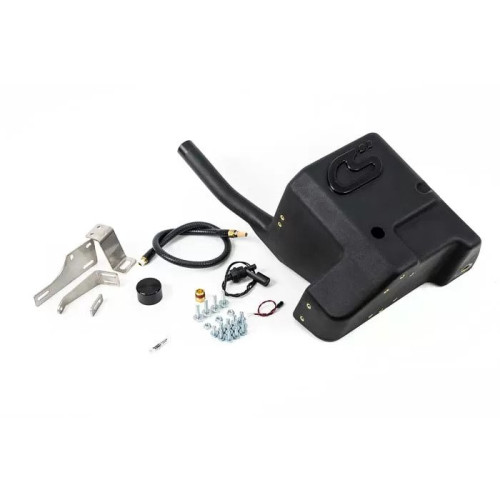

Take the first step to auxiliary fuel with the CorkSport Auxiliary Fuel Tank for Mazdaspeed 3! We crammed 2.6 gallons of capacity in front of the driver’s side front tire to give you the best in fitment and functionality. Ready for methanol or port injection, the CS aux fuel tank gives you a fantastic starting point for your fuel system. Other features include a low-level sensor, mounting points for methanol or port injection pumps, a sumped feed, billet aluminum cap, and a tank vent. Read down below for all the details!

#ZoomZoom!

Fuel Pumps are not included

The CorkSport Advantage

Fitment and Adjustability:

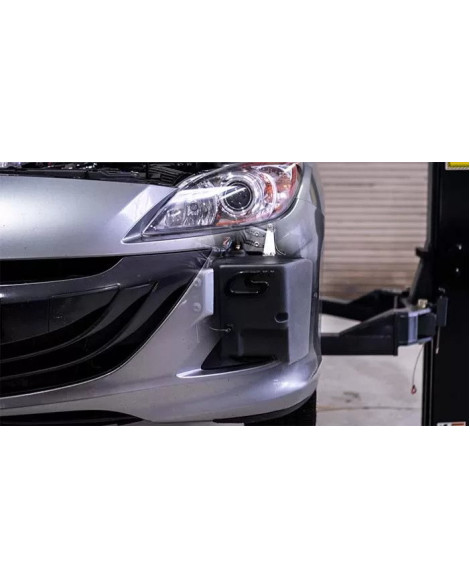

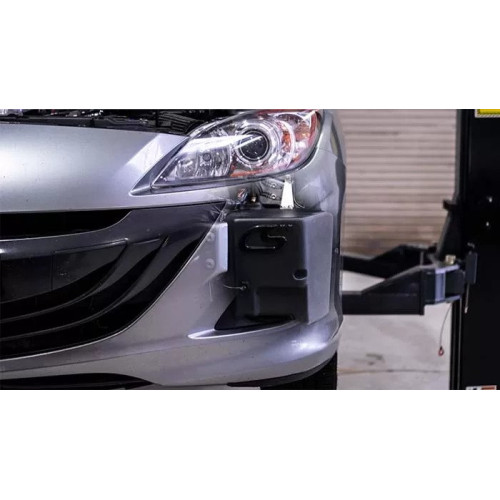

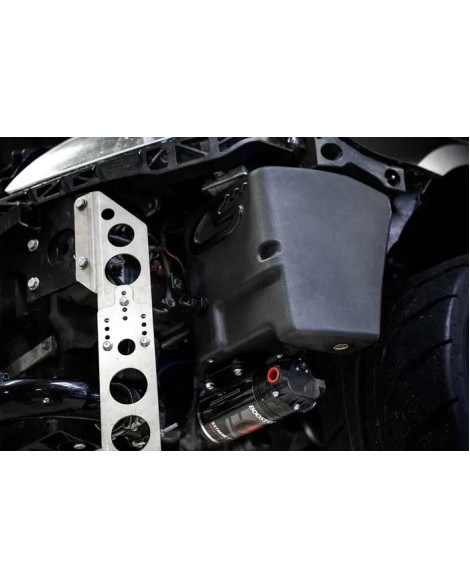

One of the main focuses of the Speed3 Aux Fuel Tank is the fitment and capacity. We went through numerous revisions to ensure we maximized capacity while retaining fantastic fitment on both GEN1 and GEN2. Through this, we achieved ~2.6 gallon capacity while incorporating adjustability into the mounting brackets to account for manufacturing and setup variances from one car to another.

Flexibility Focused:

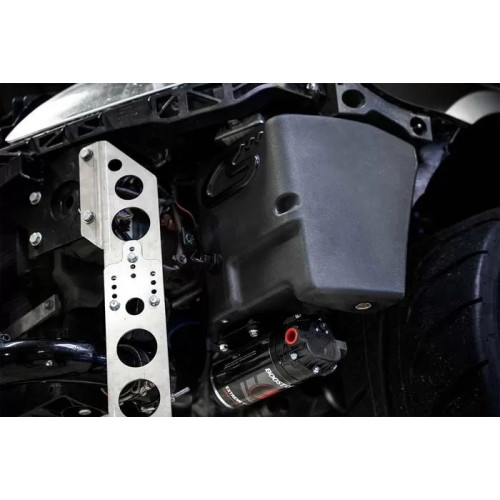

We chose rotomolding to produce the MS3 Aux Tank to make it super easy to use and personalize for your fuel system. Not only did we maximize capacity, we incorporated flexibility into the use of the tank. There are included mounting locations for methanol pumps and standard 044 style fuel pump brackets.

Features & Functionality:

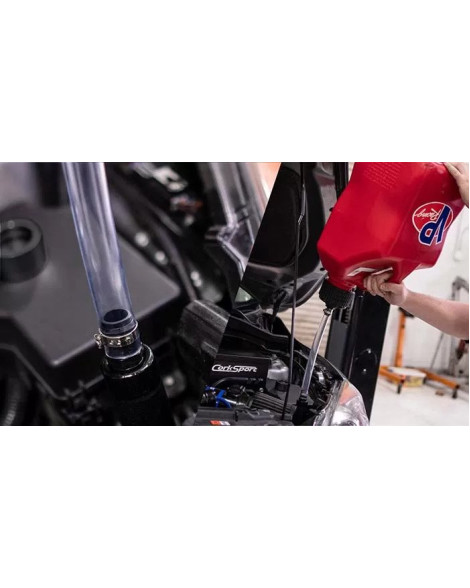

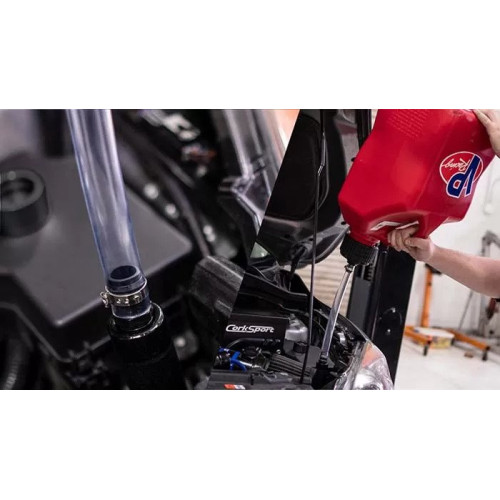

The CorkSport MS3 aux fuel tank also incorporates a bunch of other great features. An included low-level sensor and warning light will trigger at ~0.8 gallons left in the tank so you have plenty of warning before running dry. Also included is a sumped tank feed to prevent fuel starving from g-forces while driving. It is also PI ready with a return port that can be easily blocked if using methanol. A billet aluminum cap with dual O-rings ensures a good seal, even when the tank is upside-down. The fill neck was carefully sized to fit most gas cans and funnels for easy refueling. Finally, a vent is included to prevent tank pressure from building up.

Materials & Manufacturing:

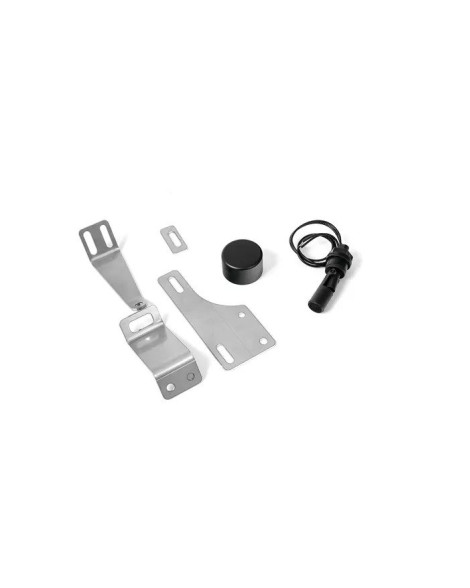

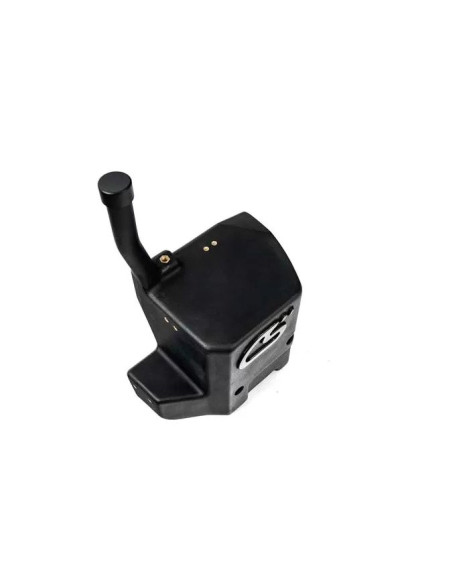

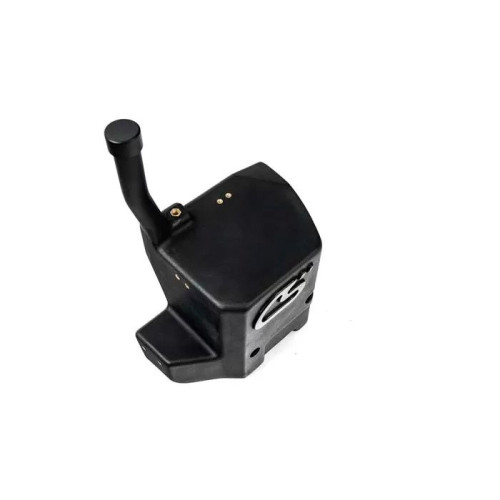

The CorkSport Auxiliary Fuel Tank is made from rotomolded 0.190” thick HDPE. This is the same material that most racing gas cans are made from, so you know it will be safe no matter the fuel you use. All the mounting brackets are laser cut and precision formed 304 stainless steel for a great look and corrosion resistance. Finally, the cap is black anodized billet aluminum for reliable and easy use while being stealthy in your engine bay.

Strength & Durability:

With the tank located on the front of the car, we wanted to be sure it could take an impact from a typical road debris object and not fracture. We used a 3 lb sledgehammer to simulate this with multiple impacts. The thick cross-link HDPE plastic can stand up to the test of time and road debris. We even parked a Toyota Tacoma on the tank to test strength! Not a single fracture.

ADVISORY

For off-road or racing use only. Buyer assumes all responsibility for risk associated with adding a fuel cell to the front of your vehicle.

2007-2009 MS3 owners will need to drill two small holes for installation.

Has not been verified with all intercooler piping setups.

Has not been verified with all intake setups.

If present, your oil catch can will likely need to be relocated to install the CS aux fuel tank.

Fuel pumps shown in images are NOT included. That means you need to buy them in addition to purchasing the tank.

It is highly recommend that a pre-pump filter is used in your methanol or ethanol auxiliary fuel system to protect your pump and injectors.

Additional Features

Vehicle Fitment: 2007-2013 Mazdaspeed 3, 2007-2013 Mazda MPS 3, 2007-2013 Mazdaspeed Axela.

Designed & Developed in America: Designed, tested, and validated in Vancouver, Washington, in the Pacific Northwest.

CorkSport Service & Support: 2 year limited warranty, full color installation instructions, all necessary components, and knowledgeable telephone support at (360) 260-2675.

All Corksport products are imported from the USA to the UK. Our Stock is directly linked with Corksport USA, if the item is not in stock with us it could take up to 10 days to be received. Contact us for definite stock. VIP Motorsport is an Official Stockist of Corksport products in the UK.
