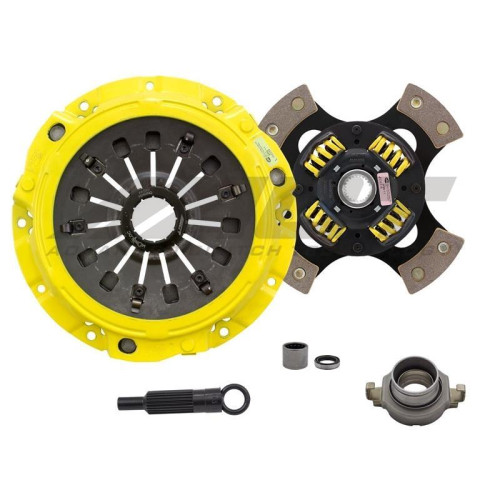

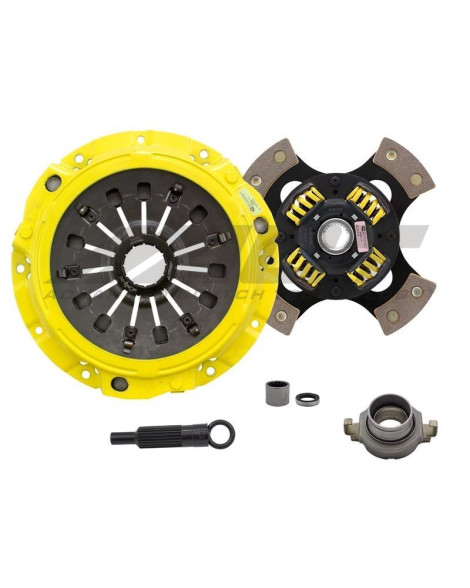

ZX6-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle, confidence during hard shifts;

Life: Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life;

Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism;

Recommended Use: Recommended for high horsepower street or race use;

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc;

Product Weight (lbs.)

16.5

Disc Type

Sprung Race Disc

Pressure Plate Type

Xtreme

Torque Capacity Over OE

103%

Torque Capacity (ft/lbs.)

575

Warranty

12 Months

Spline Count

23

Pad Quantity

4

Disc Material

Ceramic

Friction Surface Diameter (Inches)

9.4

Input Shaft Diameter (Inches)

1

Friction Surface Diameter (mm)

240

Item Description

XT-M/Race Sprung 4 Pad

NOTE: Flywheel requires counterweight (not included).

VIP Motorsport is an official UK stockist of ACT Clutches in the UK. Our stock is directly linked with ACT in the USA, if the item is out of stock with us it could take up to 2 working weeks to arrive with you. Contact us for definite stock.
