At GKTECH we now offer three different variants of our offset strut tops!

All of them are designed and made similar, sharing the following;

- CNC machined

- Lightweight 6061-T6 billet aluminium

- Direct bolt on replacement for all struts with 2.36'' spacing (90%+ of coil overs)

Offset strut tops allow for additional adjustment at the top of the strut and allow you to further adjust camber and castor, at the top as opposed to through the lower control arm at the bottom.

Depending on your budget, build quality and levels of adjustment needed we have tailored the options to suit all setups, which are …

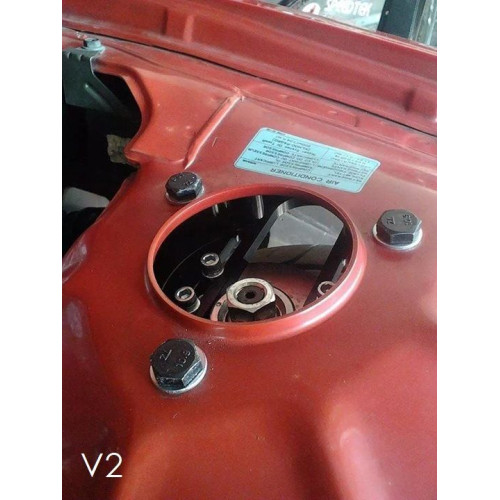

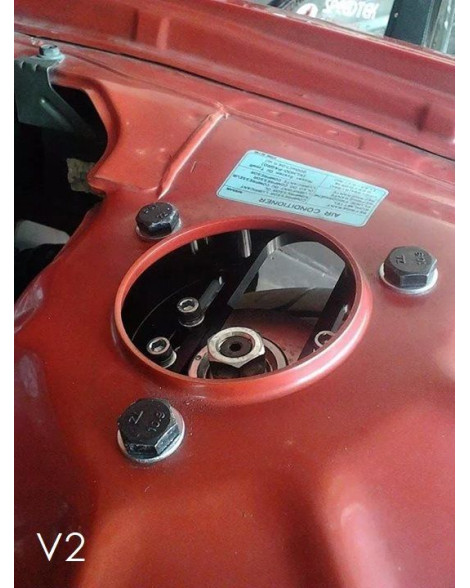

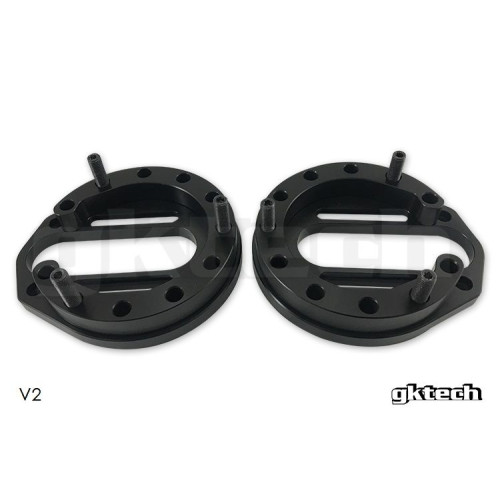

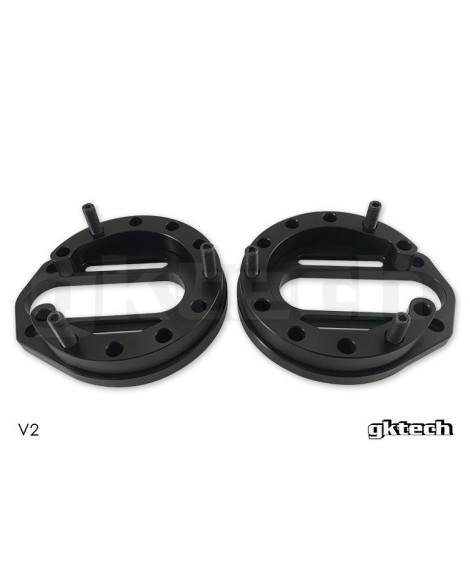

V2 Offset strut tops

These V2 offset strut tops are the good all-rounder strut top, they offer a good range of adjustment and do NOT require you to cut your strut top.

These are a two piece design and are 22mm thick and will space the coilover down this much.

NOTE: Unfortunately, these DO NOT fit HSD or Tein Super Drift coilovers.

We suggest checking the dimensions in the product photos to confirm fitment.

NOTE #2: In some cases, the dampener adjusters that are on top do not allow full range of adjustment. This depends on your dampener, you could either cut a hole for the dampener or remove it.

This brings us to the be all end all of strut top adjustment ...

All the above strut tops are designed to be fitted to the following vehicles.

Vehicle Compatibility:

- Nissan S13 Silvia

- Nissan 240sx

- Nissan A31 Cefiro

- Nissan S14 240sx

- Nissan S15 Silvia

FAQ'S

What’s the purpose of having an offset strut?

When you run longer LCA's (lower control arms) over your standard items, there is an increase in negative camber. Moving the strut top out helps to decrease camber and in doing so with the wheel sitting further out of the wheel arch, this will allow for more steering lock.

The other benefit in these strut tops is that they also have castor adjustment.

Adjusting castor from the top of the strut is another way of reducing steering bind. Steering bind brings a significant amount of load to your steering rack, tie rod ends and your knuckle and sucks to drive with!

Do these jack the car up?

Yes, they do.

The heights can be seen above, but also can be seen here;

Budget strut top - 12mm

V2 Offset strut top - 22mm

V3 Premium offset strut top - 31mm

Once installed you simply reduce the height of your coilover and it will counteract the height difference.

Will this fit my car and if not do you make these for other cars?

We can only confirm fitment for the vehicles listed above under "vehicle compatibility".

If your car is not listed there, then we don't know if it will fit and we only sell the products listed on our website. If it's not listed on here, then we don't sell it.

Are these hard to install?

No they are not that bad!

You just need to unbolt the top of the strut, let the suspension naturally drop. Depending on which model you choose you will either need to cut the strut top once you have an idea the range of adjustment.

Our V2 and Premium version do not require cutting, from there you bolt up the strut top and adjust until it is close.

You then need to re-set your vehicle height.

Then best to get a wheel alignment.

Will I have to get a wheel alignment after installing these?

Yes, after installing these offset strut tops, your camber (and castor if you adjust it) will have altered, which throws almost all the settings in the front out of whack!

So it is best to get a front wheel alignment.

Is there anything else needed for installation?

No, we supply all accessories to fit the tops and they will arrive as shown in the product photo.
