DBA XP Brake Kit Front for Ford Ranger 2011+ 2.2 & 3.2 301.5mm DBA42132S-2074XP

Brake Kit (2x DBA 42132S + DB2074XP)

Ideal for spirited driving

High quality, high performance to suit your requirements

Price includes 2 brake discs & Front Pads

TECHNICAL INFORMATION:

DISCS

Diameter [mm]: 301,5

Disc Vent:Kangaroo Paw

Number of Holes:6

Inner Diameter [mm]:98

Minimum Thickness [mm]:30

Thickness [mm]:32

Height [mm]:60.7

Pitch Circle [mm]:139.7

Stage:Stage 4

Axle:Front

Weight [kg]: 23.2

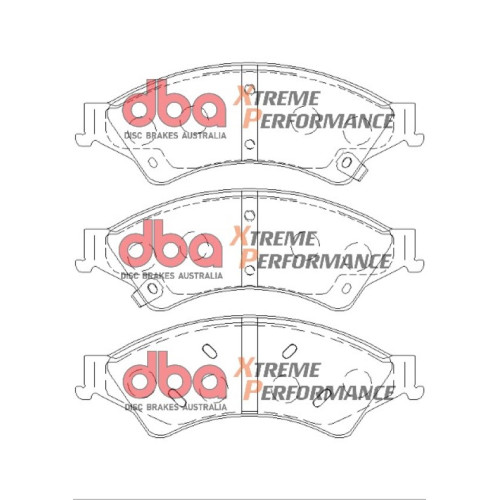

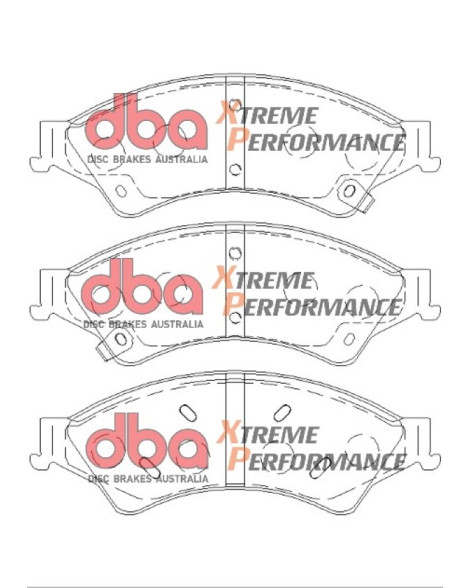

BRAKE PADS

Width [mm]: 194

Height [mm]: 68

Pad thickness [mm]: 15.5

FMSI: 8905-D1676

OEM: UCYE 33 23Z

Axle:Front

Compatible Cars

FORD Ranger 2011-2019 2.2 TD 2WD (2011-2019) Front

FORD Ranger 2011-2019 2.2 TD 4WD (2011-2019) Front

FORD Ranger 2011-2019 3.2 TD 4WD (2011-2019) Front

FORD Ranger 2019- 2.0 TD 130BHP 4WD Front

FORD Ranger 2019- 2.0 TD 170BHP 4WD Front

FORD Ranger 2019- 2.0 Twin TD 213BHP 4WD Front

MAZDA BT-50 2011-2020 3.2 TD (2011-2020) Front

DBA’s New Brake kit of T3 4000 or 5000 series slotted rotors and Xtreme Performance (XP) brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

Specifications:

Street performance and occasional track day suitable

Perfectly matching and extensively tested combination of disc and pad

Save 5% of the price when purchasing Combo

DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system

DBA discs: T3 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite

DBA discs: Thermal Stability Profiling (TSP) and enhance durability of the disc under heavy braking conditions

DBA pads: Semi-metallic, carbon fibre friction material

DBA pads: G-G Class Friction (0.45 average mu from low to high temperatures)

DBA pads: Excellent high temperature performance

DBA pads: Optimal braking consistency up to 550℃ (1022℉)

Direct fit, no changes required over stock set up

VIP Motorsport is an official Dealer of Disc Brakes Australia (DBA Brakes) in the UK! Contact us for a lead time.
