HFM.Parts 340mm Rear Brake Upgrade Kit Utilising 350Z Brembo for Nissan S/R Chassis SR340BREM-K

Some calipers are hard to find, HFM.Parts have created a rear brake kit for S/R chassis that utilises the more readily available 350Z Brembo calipers. This is made possible with HFM.Parts Australian designed and developed billet aluminium caliper adaptor set. The rotors have a visually stunning slot design and a black-painted hub to match all HFM.Parts Front Rotors. The rotors are larger allowing for better heat dissipation, vented for increased ventilation and the curved indentations improve brake pad cleaning ability.

Weight: 8.6kg/rotor

These adaptors provide the following upgrades:

S Chassis: 258mm to 340mm Rear Rotors

R Chassis: 297mm to 340mm Rear Rotors

R Chassis GTR: 300mm to 340mm Rear Rotors

With 350Z Rear Brembo Calipers

TIP!

Use 350Z Brembo Front Calipers and drill out the knuckle holes from M12 to M14 for a super easy front brake upgrade, then match this rear kit with HFM.Parts Front Two Piece Rotors for 350Z.

Compatibility

Nissan 180SX SR20

Nissan Silvia S13 SR20

Nissan Silvia/200SX S14

Nissan Silvia/200SX S15

Nissan Skyline R32 GTR

Nissan Skyline R32 GTS-T

Nissan Skyline R33 GTR

Nissan Skyline R33 GTS-T

Nissan Skyline R34 GTR

Nissan Skyline R34 GTT

Nissan 300ZX Z32

Requirements

1x Pair of rear Brembo 350Z Calipers

Remove/modify the backing plate to accommodate the larger rotor.

S-Chassis, you must convert to R-Chassis components as follows: 5-Stud Hub and Hand Brake Cables and shoes.

Minimum Wheel Size 18″

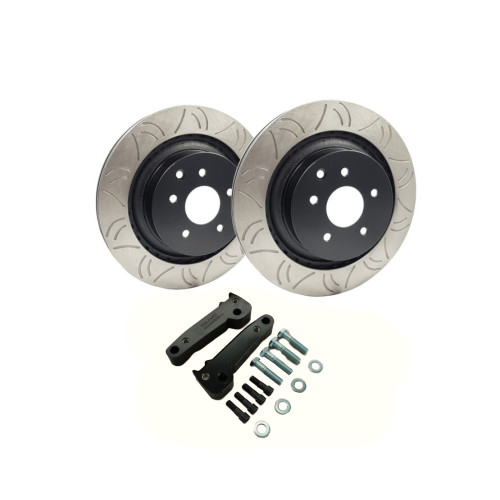

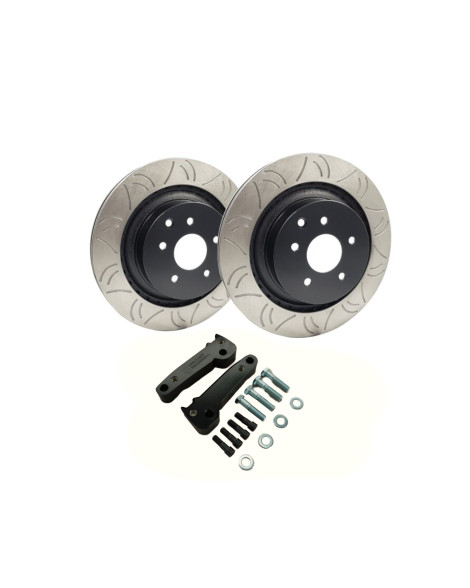

Whats in the Box!

1x Pair HFM.Parts 340mm Rear Rotors

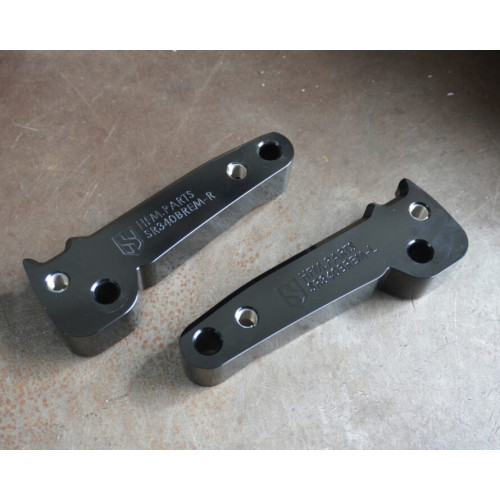

1x Pair HFM.Parts Caliper Adapters

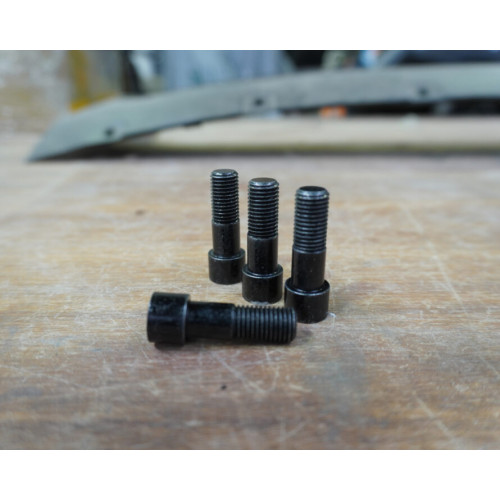

4x HFM.Parts Custom Shoulder Bolts

High Tensile Nuts & Bolts for Fitment

FAQs

Q. Will this fit my vehicle?

A. We have only confirmed fitment for the vehicles mentioned under compatibility. If your vehicle is not listed, then we don't know if it fits.

Q. I have an R33/R34 GTR that already has Brembo calipers; why would I use this kit?

A. In this particular case, the 350Z Brembo caliper is virtually the same as your OEM Brembo caliper, so it wouldn’t be ideal to change it unless it is difficult to find a replacement. We have a 340mm kit for GTR which you can view here, that utilises the OEM Brembo caliper; however, should you decide to swap or use 350Z Brembo calipers, this kit is still suitable.
