Xtreme Stage 2 Clutch Kit 420ft/lbs KNI24003-1B for Nissan S13 S14 180SX 200SX Silvia SR20DET

Confirmed Applications

Nissan S13 180SX/200SX 180SX SR20DET

Nissan S14 200SX/Silvia S14 SR20DET

Specifications

Torque (Nm) Inc FOS 570

Torque (Ftlbs) Inc FOS 420

Flywheel Step FLAT

Clutch Disc Diameter (mm) 240

Clutch Disc Spline Count 24

Clutch Disc Spline Diameter (mm) 25.4

Recommended for Motorsport Applications

Disc Type Sprung

Friction Material Ceramic

Clamping Force % Increase 38%

Spigot Bush / Bearing Included Yes

Aligning Tool Included Yes

Spline Grease Included Yes

Stage Stage 2

Weight [KG]: 9.5

Xtreme Performance - sprung ceramic kit /-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

Torque capacity 570Nm

Clamp load 800kg 35% Increased over standard

Sprung Ceramic Friction Disc

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

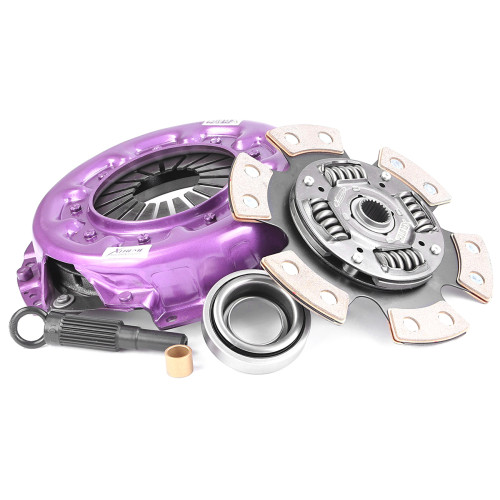

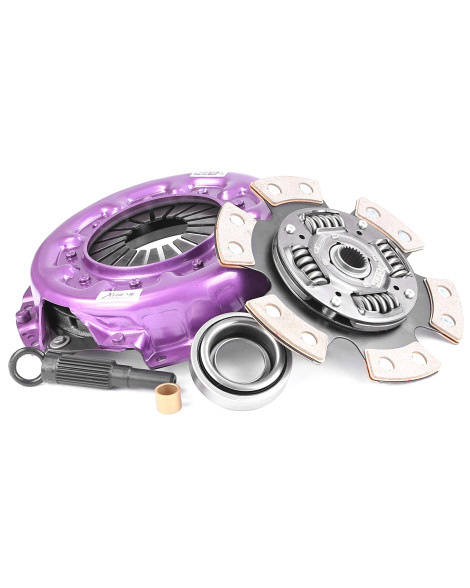

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

VIP Motorsport is a UK Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
