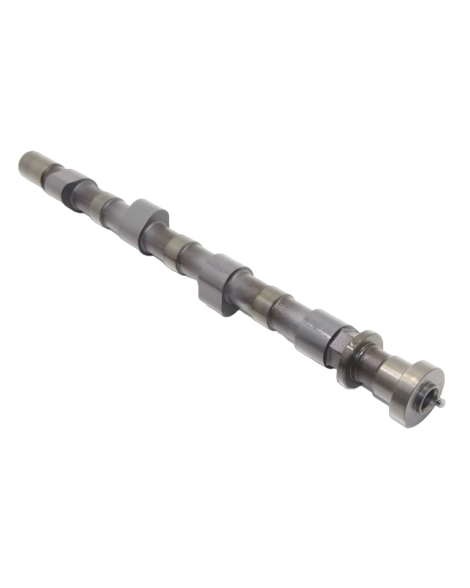

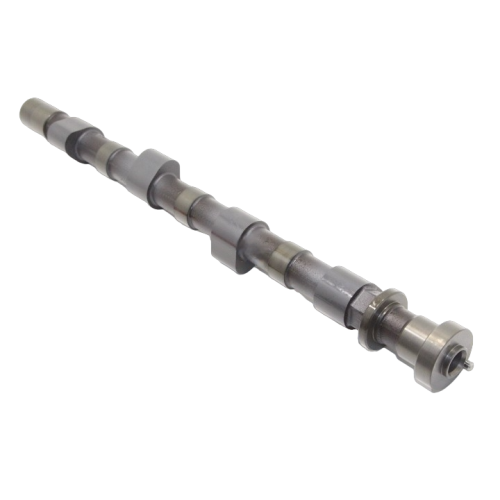

HKS Camshaft 256° Exhaust Step 1 for Nissan S13 / S14 / S15 200SX Silvia SR20DET - 22002-AN024

"Ultimate easy installation camshaft" is the concept of the product. It can be used with stock Valve Springs without valve timing adjustment and modification of cylinder head.

It has the latest profile design that outperforms competitors' products.

Feel the performance.

"Ultimate easy installation camshaft" is the concept of the product that outperforms competitors' products.

Improved performance for the range of more than 5,500rpm enables "wide power band" for sport driving. The enhanced performance continues up to the revolution limit.

The new camshaft profile has 11.5mm lift that was for STEP2 camshaft although it still can be used with stock Valve Spring. (Limitation : Stock revolution limit)

For more than stock revolution limit, reinforced Valve Spring is required. (Limitation : 8,000rpm)

Confirmed Applications

NISSAN SR20DET (R)PS13 / S14 / S15

Duration 256°

Valve lift 11.5mm

Designed valve timing 114

REMARKS
STEP1(SS-CAM)

Camshaft

The Pursuit of Maximum Camshaft Efficiency

The concept behind the HKS camshafts was to produce something that the customers would be truly happy with. This sounds simple on the surface but this is something very challenging. When the development team looked carefully at the details, the ultimate conclusion they drew was to look at the core purpose of the cam itself (to smoothly allow air into and out of the combustion chamber) and a good cam would do this job for the maximum efficiency.

HKS requirements for high performance cams.

To smoothly take in air and exhaust, i.e. to make the valve move both in and out with accuracy under any circumstance.

Absolute power at high RPM

Accelerator Response at low-mid RPM

Stable idle

Development possible because of true "In-house" production

When HKS refer to "in-house", it does not simply mean to produce everything with our own facilities. HKS does build from the ground up instead of looking for a guide from the vehicle manufacturers. The design, processing, test and production are all linked together with particular attention, therefore, the testing and redesignings are based on those results. The results of this R&D are then reflected on the final production of the items. All of this is necessary to provide the customer a product which they can be truly feel happy with and to maintain HKS' position as the pioneer in the tuning industry

From "Bolt-on" to Full Tune-up Specifications.

The Right Profile to Extract Maximum Performance from Engine

Variation Line-up

SS-CAM (STEP1)

HKS SS-Cam are designed to fit unmodified cylinder heads with stock valve springs to be a simple bolt on cam kit that can give added performance without changing any other parts or the valve timing.

By changing cams, cam duration and lift are altered making the ideal valve timing different. HKS SS-Cams have been tested on the engine bench to find the optimum valve timing and the knock pin has been relocated in a modified position to offer perfect valve timing, by simply replacing stock cams with no need for measurement or adjustment.

STEP2 / STEP3 (Pro)

STEP2

Offering more power over SS-Cams through increased lift. However, strengthened valve springs (RB26 also require Piston recess modification and Cam clearance on head) are required.

STEP3 (Pro)

Camshafts designed for further power and high rpm use over step 2. The following parts will be necessary for installation: (SR20) HKS Lash Killer Kit, Need to change the strengthened valve springs.

V Camshaft

The camshaft that is compliable for stock consecutive variable valve timing system. It was VALCON plus V CAM KIT Pro, but now Camshaft is available without VALCON unit.

FEATURES

We recommend to use the valve timing with VALCON II to produce the maximum power of the camshaft.

By using the variable valve timing, it can be used from the boost-up to turbine change.

VIP Motorsport is a UK Stockist of HKS. We recommend you contact us for a lead time. Includes 1x Camshaft ONLY, you will need to buy 1x Intake & 1x Exhaust camshaft for a set.
