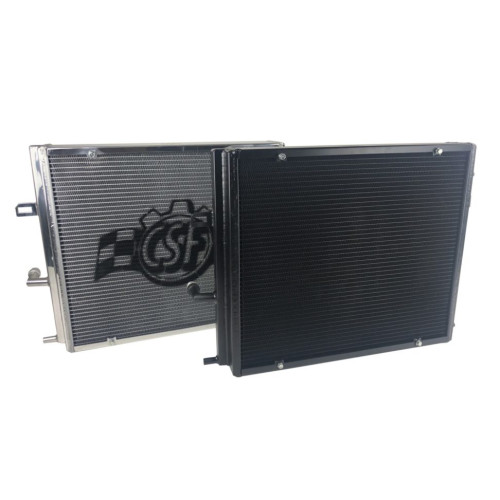

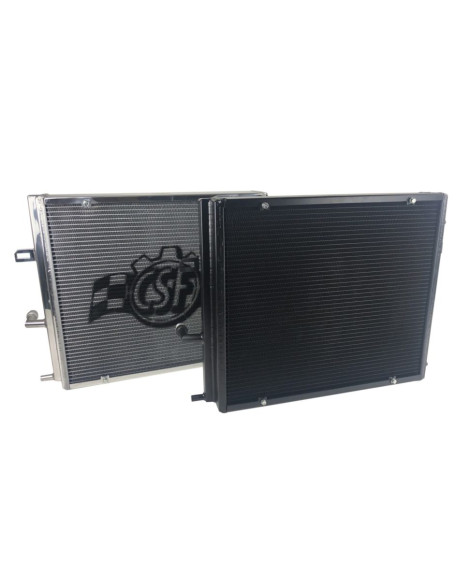

CSF F-Series High-Performance Heat Exchanger

CSF #8131/8131B

CSF upgraded the inlet/outlet design and improved the core specifications for better air-flow, water-flow, and improved cooling system performance. These updated features result in further lowering Intake Air Temperatures (IATs) of the air-to-water in-manifold charge cooler air cooler system for maximum performance.

The included hardware mounting kit is for applications that have a factory transmission oil cooler (OEM #17118625431).

Picture 4 Example of factory transmission oil cooler (OEM #17118625431) mounted along with included rock guard. OEM Oil Cooler NOT included.

Ultra-Efficient 42mm 2-Row Core, with CSF’s B-Tube Technology, and 6.5mm Multi-Louvered Fin Height

Results in Optimized Airflow Through the Heat Exchanger Core and Into Other Cooling System Components for Maximum Performance of the Entire Cooling System (Especially Critical if Installed in an X-Drive Model with Transmission Oil Cooler Placed in Front of Heat Exchanger)

Triple-Pass Flow Design

Upgraded Inlet/Outlet Design with New Tapered Entry and Exit Points from End Tanks, Resulting in Optimized Water Flow and Increased Performance (Matches OEM Spec)*

Included Detachable Rock Guard

OEM CNC Machined Mounting Location Pins and Brackets

Direct Plug-and-Play Design, Including CNC Machined “Quick Connect” Inlet/Outlet Water Fittings

Includes Hardware Mounting Kit* for Applications That Have a Factory Transmission Oil Cooler Mounted in Front of the Heat Exchanger (X-Drive Models)

No Modifications Needed to Install

For a More in Depth Look Please Check out the CSF B58 Heat Exchanger Press Release

OEM #: 17118741830 & 17118625431

CSF # 8131/8131B COMPLETE FITMENT GUIDE

OEM# 17118741830

Supercedes OEM# 17118625430; 17118482625

15-18 120i 5 doors F20 B48

15-18 125i 5 doors F20 B48

15-18 M140i(X) 5 doors F20 B58

16-18 218i Coupe F22 B38

15-18 220i Coupe F22 B48

15-18 230i(X) Coupe F22 B48/B46

15-18 M240i(X) Coupe F22 B58

16-18 218i Convertible F23 B38

15-18 220i Convertible F23 B48

15-18 230i(X) Converitble F23 B48/B46

15-18 M240i(X) Converitble F23 B58

14-18 320i(X) Sedan F30 B48

14-18 330e Sedan F30 B48

14-18 330i(X) Sedan F30 B48

14-18 340i(X) Sedan F30 B48

14-18 320i(X) Touring F31 B48

14-18 330i(X) Touring F31 B48/B46

14-18 340i(X) Touring F31 B58

15-18 320i(X) Gran Tourismo F34 GT B48

15-18 330i(X) Gran Tourismo F34 GT B48/B46

15-18 340i(X) Gran Tourismo F34 GT B58

15-18 420i(X) Coupe F32 B48

15-18 430i(X) Coupe F32 B48/B46

15-18 440i(X) Coupe F32 B58

15-18 420i(X) Convertible F33 B48

15-18 430i(X) Convertible F33 B48/B46

15-18 440i(X) Convertible F33 B58

15-18 420i(X) Gran Coupe F36 Gran Coupe B48

15-18 430i(X) Gran Coupe F36 Gran Coupe B48/B46

15-18 440i(X) Gran Coupe F36 Gran Coupe B58

VIP Motorsport is a dealer of CSF Radiators in the UK & Europe. Our stock is directly linked with CSF USA, if the item is out of stock with us it could take up to two working weeks to be received. Image may not be accurate.
