Whether you are carving corners with the top down or blasting down the drag strip, your high-revving S2000 needs a reliable and effective cooling system. Mishimoto is proud to release an all-new, direct-fit oil cooler kit engineered and designed specifically for the AP1 and AP2 Honda S2000. This kit utilizes a large 19-row oil cooler mounted in the front grill for optimum airflow and cooling capability. It includes preassembled stainless steel lines and S2000 specific mounting brackets for a painless and clean installation. The Mishimoto oil cooler kit increases overall oil capacity by .6 qt and significantly reduces temperatures while maintaining minimal pressure drop. This kit is available with a thermostatic sandwich plate for additional oil-temperature control, and your choice of a stealth black or silver cooler. As with all our products, this kit includes the Mishimoto lifetime warranty.

• Dramatic temperature drop
• Minimal pressure loss
• Direct fit for the Honda S2000
• Thermostatic option available
• Stealth black and sleek silver cooler options
• Lifetime warranty

Increase in Oil Capacity
.65 Quarts (0.615L)

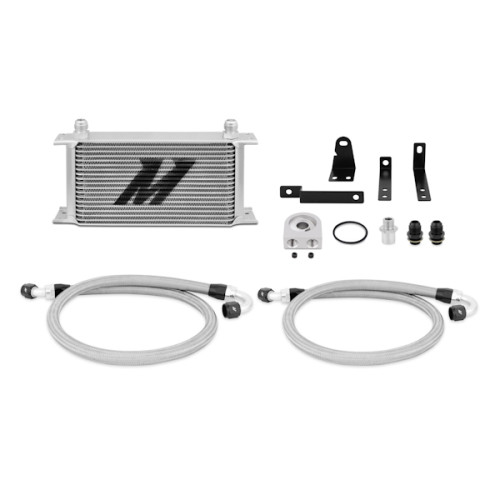

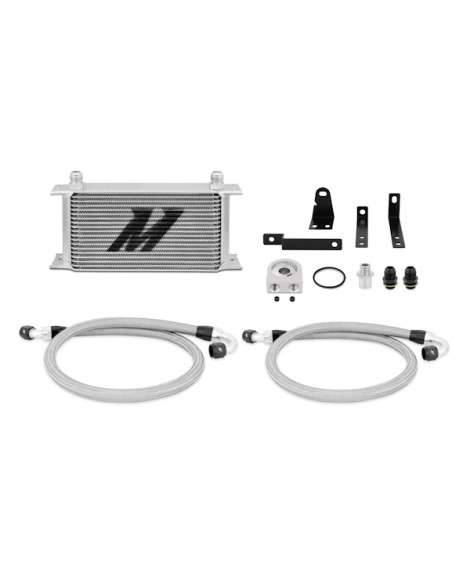

Purchase Includes
(4) - Application Specific Mounting Brackets (Including Horn Relocation Bracket)
(1) – 19 Row Oil Cooler (Silver or Black)
(1) – 2ft, 11in Stainless Steel Braided Hose with 45 Degree and 150 Degree -10AN Fittings
(1) – 3ft, 8in Stainless Steel Braided Hose with 45 Degree and 150 Degree -10AN Fittings
(1) – M20 Thermostatic Sandwich Plate (Non-Thermostatic Available)
(1) – M20 Stainless Steel Sandwich Plate Adapter
(2) – M20 x -10AN Straight Fittings
(1) – Mounting Hardware Set

Installation Torque Specs
15-25 ft/lbs (operating range) for all straight fittings and banjo bolts. Do not exceed the maximum torque rating of 35 ft/lbs.Engine codes
F20C
F22C

Chassis Codes
AP1
AP2

Note
AP1 S2000 (2000–2003) vehicles will require minor bending of A/C lines for cooler and bracket installation.
