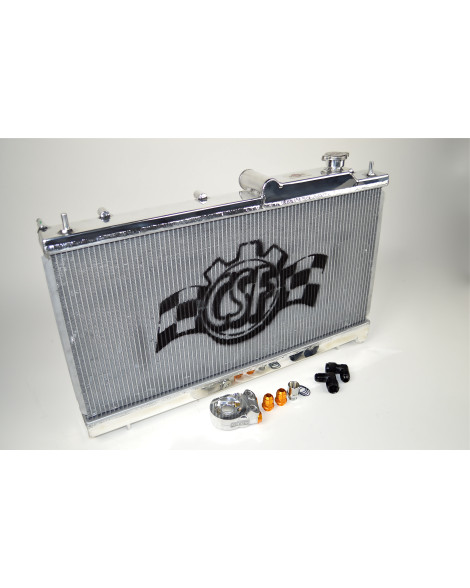

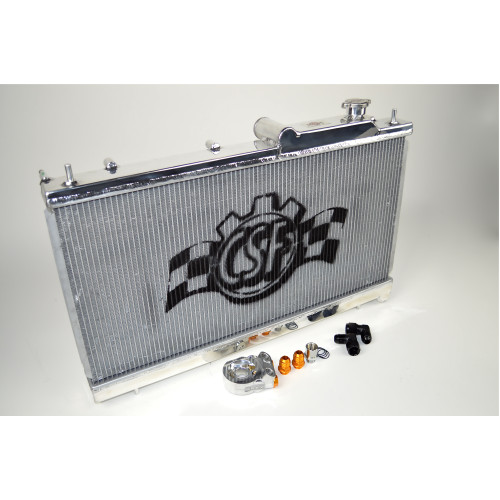

CSF Radiators Competition Race Spec Radiator w/Built In Oil Cooler for Subaru WRX 08-14  / STI 08-21

The 1st models of this new “O” Series is for the Subaru platform: 02-07 STI/WRX (CSF #3076O),  08-14 WRX and 08-20 STI (CSF #7042O). These 2 applications were developed alongside industry leading Subaru engine builders & race tuners, LIC Motorsports from Northern California. CSF also reached out to one of our closest race teams, Subaru tuners, and dealers; Snail Performance, to help with fitment and performance testing in the hot Arizona desert they are regionally located in.

Tech Specs

These radiators utilize a 2-row 42mm core that features CSF’s exclusive B-tube technology, as well as an ultra-efficient 6.5mm multi-louvered fin for maximum surface area contact, heat dissipation, and extreme performance capabilities.

Equipped with an all-aluminum racing style drain plug for quick and reliable fluid changes

CSF 1.4 Bar (20 psi) radiator cap

Engineered and designed to be a complete “drop-in fit” install. Works with all the OEM brackets, fittings, AC condenser, hoses, and fan shrouds (only minor trimming needed at fitting locations)

Featuring a robust 4-plate liquid-to-oil plate-type oil cooler built into the bottom end tank. A liquid-to-oil cooler is much more efficient than a conventional air-oil cooler. Lab-tested in CSF”s ISO certified in-house lab testing facility to reject heat better and at a faster rate than a 10-row air-to-oil cooler. In addition, by being placed in the bottom end tank, the oil temperature is regulated by the thermostat of the cooling system. Never have to worry about operating temperatures not warming up fast enough in cold weather climates.

Complete with 2 AN-10 male fittings and is compatible with many popular aftermarket engines and exhaust manifolds.

This kit comes complete with a sandwich plate and forged right angle -10 fittings made by BAT (see product update notice below – CSF was forced to switch to another top-tier company for the included sandwich plate due to the previous manufacturer’s supply chain issues)

Topped off with the industry’s finest 1-hour hand polish “mirror finish” for a look that matches the performance.

Installation of this unit will require an additional ¼ to ½ a quart of oil

Product Update

We have switched to using the Mocal compact, lightweight, high-flow M20 x 1.5 filter sandwich plate (Mocal part #SP1F) instead of the ones made by Greddy. Apparently, there were some internal issues that prevented us from purchasing the Greddy sandwich plates from their USA distributor so we had to source this part from another manufacturer.

Fitment

Subaru WRX 08-14

Subaru WRX/STI 08-21
