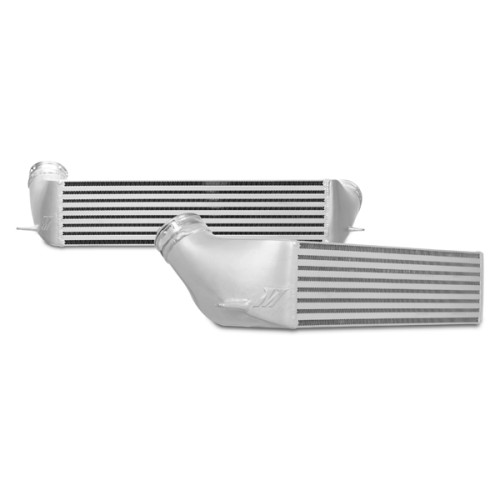

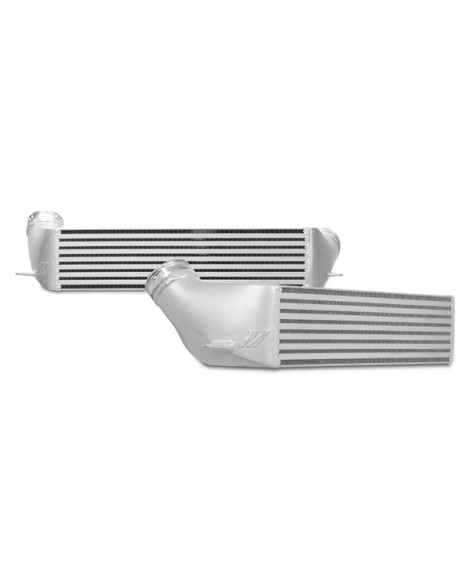

BMW 335i/335xi/135i 2007-2013 Mishimoto Performance Intercooler
The E90 BMW is a great platform for soaking up highway miles during the weekday and taking to the track on the weekend. With some minor modifications, the straight six is capable of producing substantial power. Added power will push the limits of the stock charge air system, necessitating an upgrade for the stock tube-and-fin intercooler, which is prone to heat soak. Mishimoto has developed a highly efficient bar-and-plate intercooler engineered specifically for the BMW 335i/335xi/135i. This intercooler is a direct-fit unit and features a 22% increase in core volume while requiring no modification to your vehicle. This cooler is constructed with cast end tanks and precision CNC-machined aluminium quick disconnects for use with the factory intercooler piping. The BMW 335i/335xi/135i Performance Intercooler reduces intake temperatures by 35°F (19.45°C) and provides an increase of 20+ hp while retaining factory boost pressure across the core. This intercooler features precision TIG-welding and is available with a silver or black finish. With a one-hour installation, substantial power and temperature benefits, and a lifetime warranty, the BMW 335i/335xi/135i Performance Intercooler is the perfect upgrade for your stock cooler!

• 20+ hp increase
• 35°F (19.45°C) reduction in AIT
• 22% increase in core size
• Includes CNC'd quick-disconnect fittings to mate with OEM pipes
• Easy install – under an hour
• Direct fit – no mods required
• Bar-and-plate construction
• 100% aluminium, TIG-welded with cast end tanks
• Available in Stealth Black or Sleek Silver finish
• Mishimoto Lifetime Warranty

Construction
Bar/Plate

Overall Size
27.8" x 6.8" x 8.7"

Core Size
20.47" x 5.12" x 5.31"

Inlet/Outlet
OEM-Style Quick-Disconnect

Max. Recommended PSI
40psi

Fin Pitch
7.5 Fins/Inch

Tank Wall Thickness
4 mm

Product Weight
15.8lbs / 7.17kgs

Purchase Includes
Mishimoto Intercooler
Mishimoto Lifetime Warranty

Fits
07–11 BMW 335i/xi Sedan
07–13 BMW 335i/xi/is Coupe
07–13 BMW 335i/xi/is Convertible
08–13 BMW 135i/is Coupe
08–13 BMW 135i/is Convertible
11 BMW 1M Coupe
09–13 BMW Z4 sDrive 35i/is
12+ BMW X1 xDrive35i

Engine Codes
N54
N55

Chassis Codes
E90
E92
E93
E82
