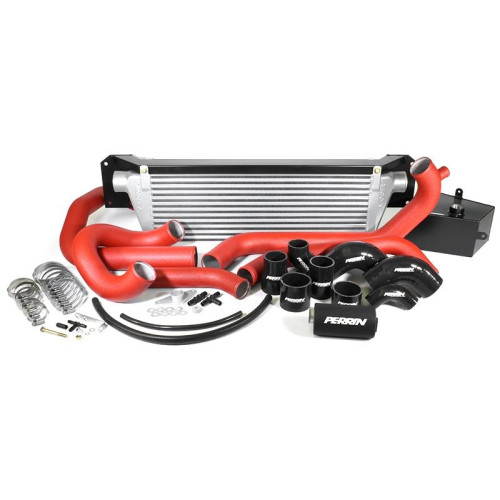

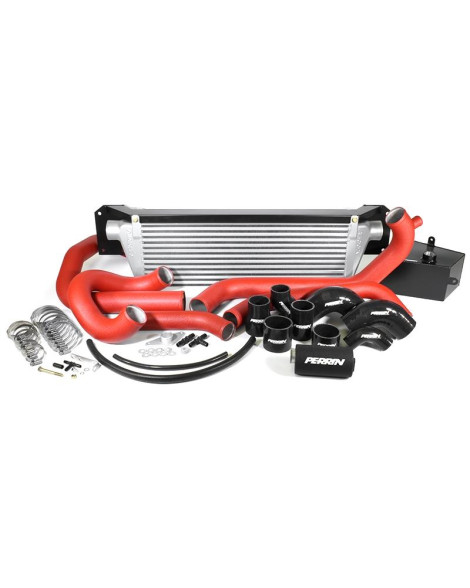

PERRIN PERFORMANCE Front Mount Intercooler kit, including the intercooler core, beam & boost tube kit!

VIP Motorsport is proud to be an official UK stockist of PERRIN PERFORMANCE.

INTERCOOLER CORE & BEAM

Swap out your overheated factory top mount intercooler for the PERRIN Front Mount Intercooler to get the most out of your turbocharged STI or WRX. Add power and a new bold look all in one!

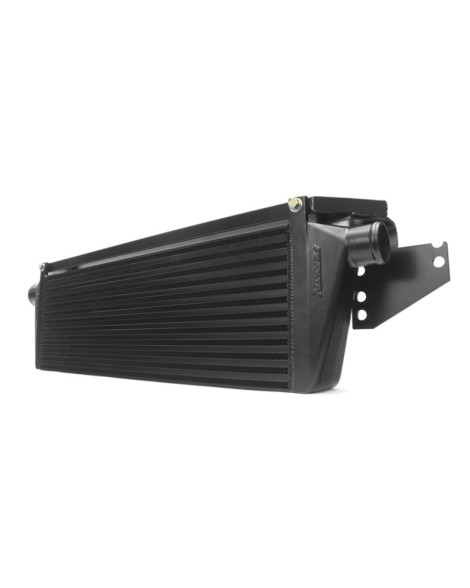

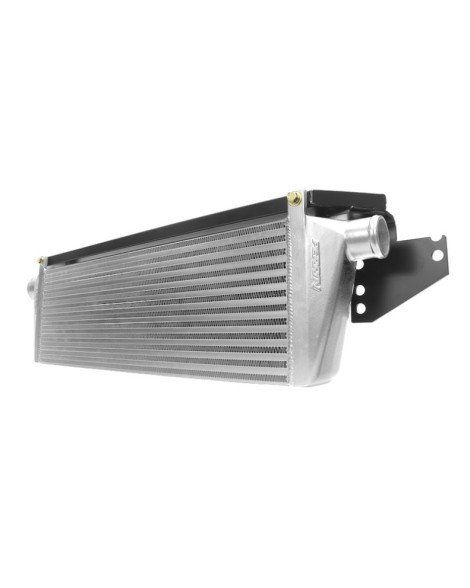

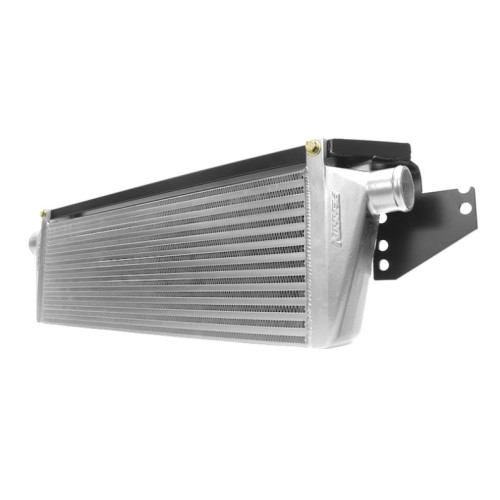

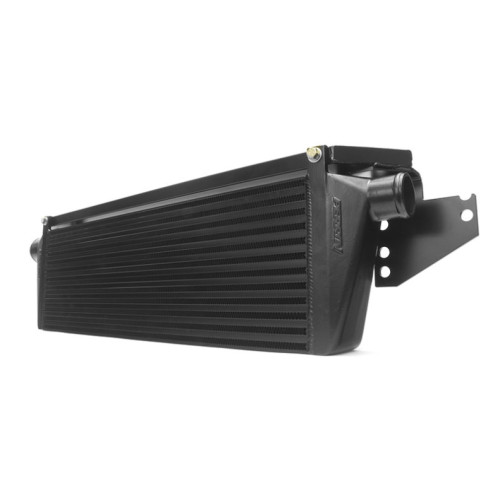

INTERCOOLER CORE

The most important part of any intercooler system is the core. The core cools the charged air on the way to the engine. The factory Subaru tube and fin intercooler was designed to be easy to manufacture, but is not good for performance.

Our testing has shown the optimum core design is the 3/8” bar and plate style that has a 3/8” charge air and ambient air path, instead of the common 1/4” size. The PERRIN bar and plate core design is much more durable than tube and fin with the ability to withstand rocks and other debris, which may enter the scoop. The PERRIN intercooler core is 28” long x 9.25” tall x 3.5” deep with a volume of 906.5 cu-in. giving the PERRIN Intercooler the best overall design for cooling and pressure drop!

INTERCOOLER SUPPORT BEAMS

Our intercooler support beam is constructed from boxed steel and powder coated black. Competitors use inexpensive aluminum bumper beams which save a little weight but are easily destroyed in a collision.

FINISH

Every PERRIN intercooler is powder coated to further protect your intercooler from the elements making it look awesome for years to come. Our intercoolers come in two finish options, a bright silver or stealth black powder coat.

CAST END TANKS

The PERRIN designed end tanks control for near perfect dispersal of hot air across the intercooler core. By eliminating any 90º corners adding a smooth, and gradual taper from top to bottom turbulence is eliminated. Each end tank incorporates an innovative mounting tab to secure the core to the mounting beam.

PRESSURE TESTING

PERRIN is one of the only intercooler manufactures who pressure tests every intercooler. We pressurize every intercooler to 50 psi. on our special jigs. This ensures you never get a core with a leak! Even the slightest leak can cause your vehicle to lose power, literally bleeding turbo boost pressure out the intercooler.

LOGO

Included with our front mount intercooler is a free PERRIN logo intercooler stencil. Use the stencil to easily paint the PERRIN logo across the front of your intercooler. Simply peel, stick, paint, and remove!

SPECS

Horsepower Support 1000+HP

Finish Texture Powdercoat

Core Style 3/8" Bar and Plate

Core Dimensions 28" x 9.25" x 3.5"

Core Volume 906.5 cu/in

Endtanks Cast Aluminum

Support Beam Powdercoated Boxed Steel

Finish Wrinkle Powdercoat

Boost Tube Construction Mandrel Bent Aluminum

Clamps T-Bolt Clamps

Coolant Reservoir Aluminum Catch Can

PART NUMBERS

PSP-ITR-400-1BK = 2002-2007 WRX, 2004-2007 STI, black

PSP-ITR-400-1SL = 2002-2007 WRX, 2004-2007 STI, black

COMPATIBILITY

2002-2019 WRX - Yes

2004-2019 STI - Yes

2005-2009 Legacy GT - Yes, please call for details

2008-2013 Forester XT - Yes, with modification, please call for details

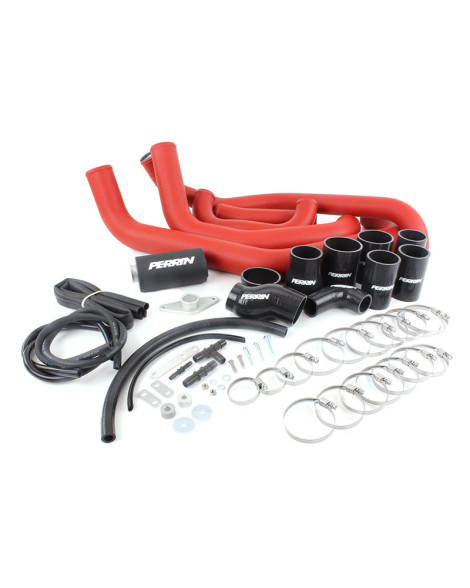

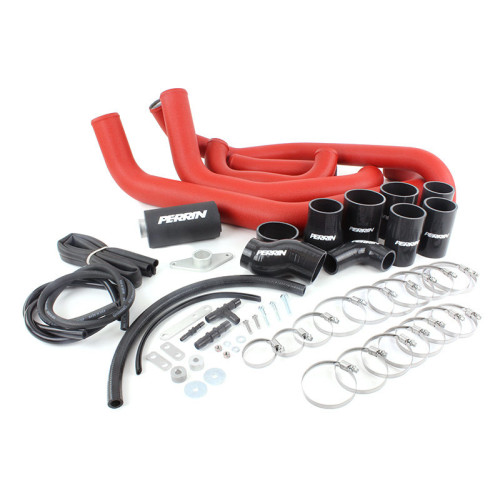

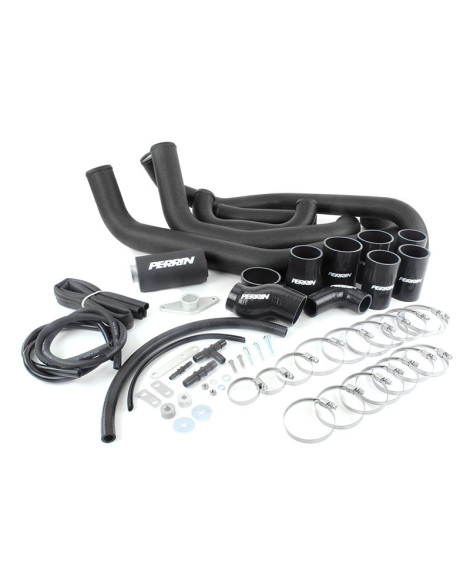

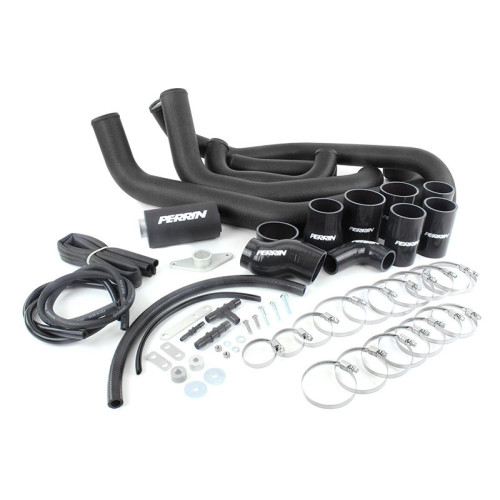

BOOST TUBE KIT

Swap out your overheated factory top mount intercooler for the PERRIN Front Mount Intercooler to get the most out of your turbocharged STI. Add power and a new bold look all in one.

BOOST TUBES

Right off the turbo a smooth offset coupler carries the hot side air charge to a perfectly matched 2.25” boost tube. We chose 2.25" tubing for a smoother, cleaner, obstruction free routing while still being large enough to flow more WHP than most turbos can put out. The air charge then is routed through the engine bay next to the battery, and down behind the radiator to the intercooler. The cold side boost tubes are mounted as high as possible in the engine compartment to clear all turbo and intake combinations as it travels to the throttle body through the engine bay.

WASHER TANK FOR 2015+ MODELS

The PERRIN Boost Tube Kit includes a PERRIN Washer Fluid Tank. With how the boost tubes are routed through to the intercooler, the OEM tank conflicts with the space required. The PERRIN Washer Fluid Tank is protected from the elements by a black powder coating finish.

COOLANT OVERFLOW TANK

The PERRIN Boost Tube Kit includes a PERRIN Coolant Overflow Tank. It adds clearance for better boost tube routing, holds more coolant than previous designs and uses the OEM tank cap for a great seal! The PERRIN Coolant Overflow Tank is protected from the elements by a black texture powder coating.

CONSTRUCTION

PERRIN Boost Tubes are CNC mandrel bent from aluminum tubing for better weight reduction. Every boost tube has an over sized beaded end to ensure the hose clamps and couplers stay connected and sealed! We choose to take the smoothest shortest path to get air to and from the intercooler.

FINISH

Every PERRIN Boost Tube is powder coated for further protection from the elements, making it look awesome for years to come. Our boost tubes come in two finish options, texture powdercoated black, and texture powdercoated red.

PART NUMBERS

PSP-ITR-437-2 = 2015-2017 WRX

PSP-ITR-438-2 = 2015-2017 STI

COMPATIBILITY

PSP-ITR-400-2

2002-2007 WRX - Yes

2002-2007 STI - Yes

2008-2019 WRX - No

2008-2019 STI - No
