Mishimoto Compact Baffled Oil Catch Can Petcock Drain Kit

Tired of removing the bottom half of your Mishimoto Compact Baffled Oil Catch Can in order to drain the accumulated blow-by? The engineers at Mishimoto have answered with the Compact Baffled Oil Catch Can Petcock Drain Kit. The 6’ of black rubber hose allows you to easily splice the black nylon ball valve into the hose wherever works best for you! The included 3/8” NPT to 3/8” hose barb black nylon fitting, which replaces the current plug in your catch can bottom, and three worm-gear clamps make installing this petcock drain plug a breeze. As with all our products, this kit includes the Mishimoto Lifetime Warranty.

• Designed specifically for Mishimoto 2-Port and 3-Port Compact Baffled Oil Catch Cans
• Allows baffled catch can to be drained without removing it from vehicle
• Nylon barbed mini ball valve can be spliced into rubber hose for ease of draining
• Includes 3/8" NPT to 3/8" barbed fitting for bottom of catch can
• Includes 6 ft of high-temperature 3/8" rubber hose and three worm-gear clamps for universal installation
• Mishimoto Lifetime Warranty

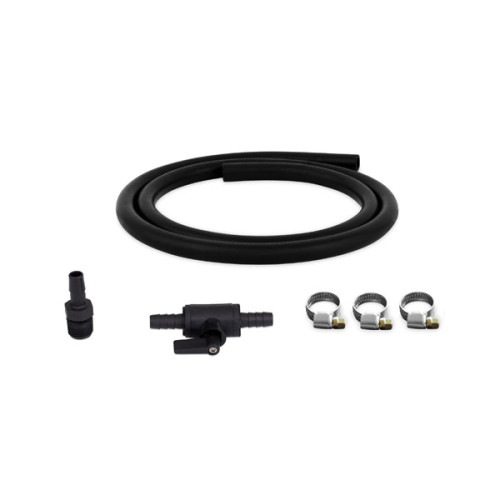

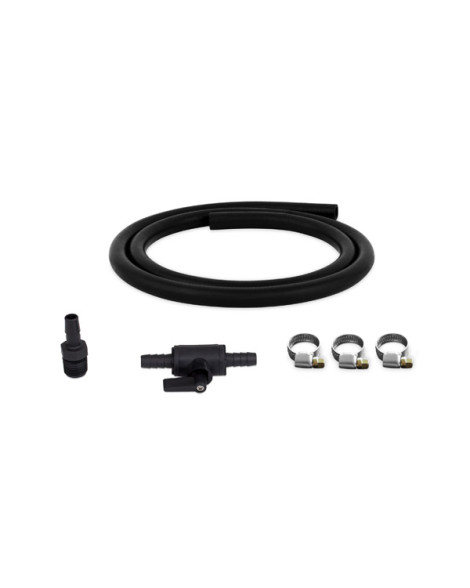

PURCHASE INCLUDES

(1) 3/8” Hose Barb x 3/8” Hose Barb Black Nylon Ball Valve

(1) 6’ Rubber Hose, 3/8” I.D.

(1) 3/8” NPT x 3/8” Tube I.D. Plastic Barbed Fitting

(3) 12-20mm Worm-gear Clamps

Mishimoto Lifetime Warranty

INSTALLATION TORQUE SPECS

22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

FITS

MMBCC-MSTHR-BK

MMBCC-MSTWO-BK

CAUTION

It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, click here to contact us.
