Ford Focus RS 2016+ Mishimoto Oil Cooler Black

Nobody likes being sidelined at the track due to high engine oil temperatures. Mishimoto is here to help with a new line of efficient Focus RS parts. Some aggressive track laps can overheat your oil and wear out your engine, so our engineers have developed an oil cooling solution for your Focus RS! The Mishimoto engineers designed the heat exchanger for this project from scratch to create the one of largest oil cooler that we offer, and mounted it in the front of the vehicle where it receives the most airflow. Application-specific braided stainless steel lines transfer the oil from the cooler to the engine and feature -10AN fittings for an easy installation. This 2016 Focus RS oil cooler kit is available with either a Sleek Silver or Stealth Black cooler as well as an optional thermostatic sandwich plate. As with all our Focus RS parts, the Mishimoto Focus RS Oil Cooler Kit includes the Mishimoto Lifetime Warranty.

• Direct fit for the 2016+ Ford Focus RS
• Innovative bar and plate oil cooler mounts in the upper grille
• Mounting bracket also serves as an air diversion panel, directing the maximum amount of ambient air through the oil cooler
• Pre-made stainless steel braided oil lines with durable -AN fittings
• Built in air scoop drops IAT by 6 degrees
• Includes billet aluminium oil sandwich plate or thermostatic oil sandwich plate
• Cooler available in Sleek Silver or Stealth Black
• Cooler available in Sleek Silver or Stealth Black
• Mishimoto Lifetime Warranty

Material 6061 Aluminum

Core Height 160MM

Cooler Construction Bar-and-Plate Core Thickness 40MM

Core Length 355MM

Fitting Size 10AN

Engine Codes 2.3L EcoBoost

Inlet 10AN

Outlet 10AN

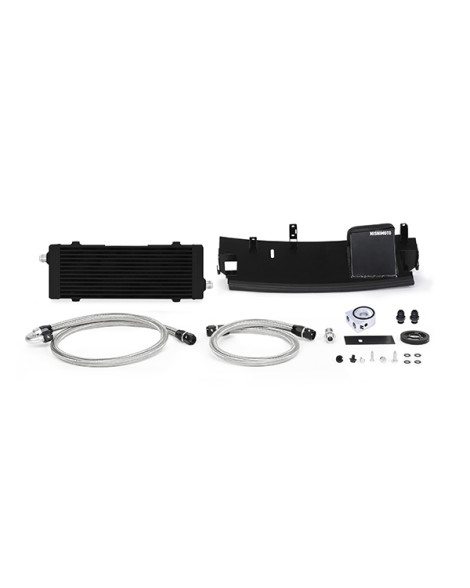

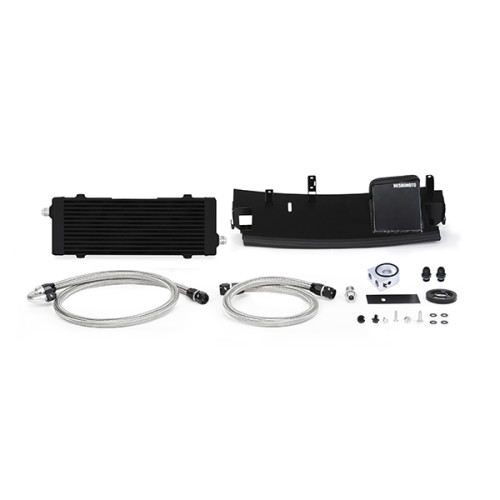

Purchase Includes (1) – Application Specific Mounting Bracket / Air Diversion Shield

(1) – Bar and Plate Oil Cooler (Silver or Black)

(1) – 864MM Stainless Steel Braided Hose w/ -10AN Fittings

(1) – 1295MM Stainless Steel Braided Hose w/ -10AN Fittings

(1) – Oil Sandwich Plate (Thermostatic or Non)

(1) – Application - Specific, 3/4" 16 extended length center bolt

(2) – M20 x -10AN Straight Fittings

(1) – Mounting Hardware Set

Mishimoto Lifetime Warranty

Braided Hoses Yes
