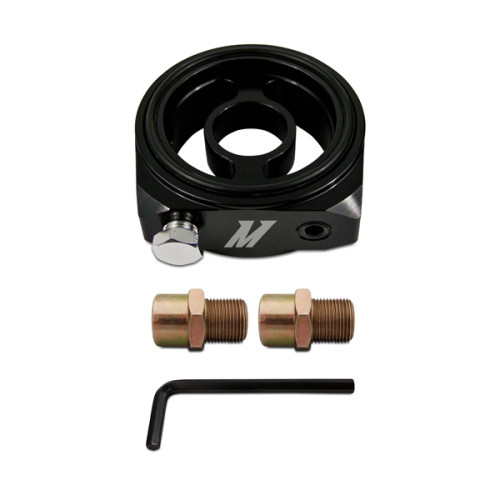

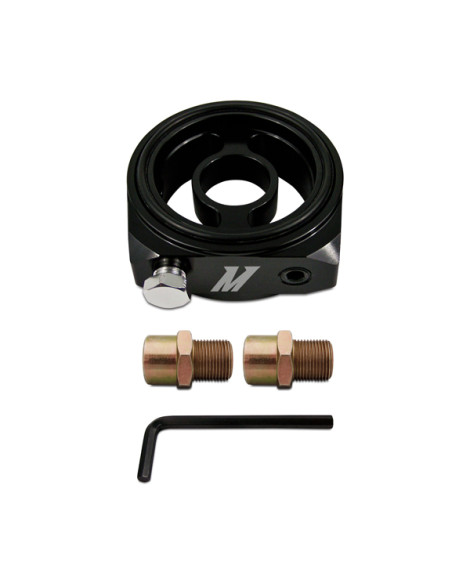

Mishimoto Oil Filter Sandwich Plate Adapter

The Mishimoto Oil Filter Sandwich Plate Adapters are made with 3 NPT ports to allow you to install an oil temperature sensor, oil pressure sensor, and/or a turbo oil feed. This easy-to-install plate eliminates the need to drill into your block by using the mounting point on your engine oil filter. Two adapters are included with purchase for fitment with multiple applications.

CAUTION: When installing sandwich plates, lines, oil-coolers, etc. it is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before installing or operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation, to inspect for leaks.

OVERALL SIZE

2.8" x 3.0" x 0.8"

PURCHASE INCLUDES

(1) Oil Plate Sandwich Adapter with (3) 1/8" NPT Ports

(1) Large O-ring

(2) Sandwich Plate Adapters (1 x M20 x 1.5" & 1x 3/4" UNF 16)

(2) Black Flush Fittings w/ Allen Key Bolt

(1) Allen Key

(1) Hex Head Fitting

Installation Guide

Limited Lifetime Warranty

Mishimoto sticker

BELOW IS A LIST OF SOME OF OUR COMMON APPLICATIONS. IF YOUR VEHICLE IS NOT LISTED BELOW, PLEASE CONFIRM THE DIAMETER AND THREAD PITCH OF YOUR OIL FILTER BEFORE PURCHASING.

ACURA

88-01 Integra: 20mm

02-06 RSX, TSX: 20mm

AUDI

All models with spin-on filters: 3/4"-16

BMW

All models with spin-on filters: 3/4"-16

EAGLE

89+ Talon (non-Turbo): 3/4"-16

95+ Talon: 20mm

HONDA

91-10 Civic: 20mm

07-10 Fit: 20mm

00-09 S2000: 20mm

88-03 4cyl., 6cyl. Cars, Vans and SUVs: 20mm

HYUNDAI

Genesis Coupe: 20mm

INFINITI

91-96 G20: 3/4"-16

99+ G20, G35: 20mm

90-96 J30, M30, Q45: 3/4"-16

97+ Q45, QX4: 20mm

JEEP

70-86 All V8: 3/4"-16

93+ V8 Grand Cherokee: 3/4"-16

70-90 All I6: 3/4"-16

91+ 4.0L: 20mm

MAZDA

93-95 RX-7: 20mm

04-10 RX-8: 20mm

90-05 Miata: 20mm

04+ Mazda 3, 2.0L: 20mm

MITSUBISHI

83+ All Models: 20mm

95-99 Eclipse 4 cyl. (non-turbo): 3/4"-16

99+ Eclipse, Galant V6: 20mm

00+ Eclipse 4 cyl (non-turbo): 20mm

03-11 Lancer: 20mm

03-11 EVO: 20mm

NISSAN

89-94 240SX: 3/4"-16

95-98 240SX: 20mm

09-10 GT-R: 20mm

350Z, 370Z: 20mm

98+ Altima 4cyl: 20mm

95+ Maxima: 20mm

95+ Sentra: 20mm

SCION

All xA, xB, tC: 3/4"-16

SUBARU

72-89 All Models: 3/4"-16

90+ All Models: 20mm

TOYOTA

All Models 3/4"-16
